交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PW122RA4803F01AC/DC DESKTOP ADAPTER 48V 120W |
0 | - |
|
数据表 |
PW122 (120W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 2.5A | - | 120 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | 86% | 9.00" L x 2.90" W x 2.00" H (229.0mm x 74.0mm x 51.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
PW300KA0012F01AC/DC DESKTOP ADAPTER 5V/12V 32W |
0 | - |
|
数据表 |
PW300 (50W) | Box | Obsolete | International | Desktop (Class I) | 100 ~ 240 VAC | 5V, 12V | 4A, 1A | - | 32 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 75% | 5.87" L x 3.34" W x 2.00" H (149.0mm x 86.0mm x 51.0mm) | 36" (0.91m) | 0°C ~ 50°C | DIN, 5 Pin | CE | |
|
SW201KA0012F01AC/DC DESKTOP ADAPTER 5V/12V 32W |
0 | - |
|
数据表 |
SW201 (25W) | Box | Obsolete | International | Desktop (Class I) | 100 ~ 250 VAC | 5V, 12V | 4A, 1A | - | 32 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 72% | 5.08" L x 3.05" W x 1.59" H (129.0mm x 77.5mm x 40.5mm) | 72" (1.83m) | 0°C ~ 50°C | DIN, 5 Pin | CE | |
|
SW301KA0012F01AC/DC DSKTP ADAPTER 5V +/-12 39W |
0 | - |
|
数据表 |
SW301 (25W) | Box | Obsolete | International | Desktop (Class I) | 100 ~ 250 VAC | 5V, 12V, -12V | 4A, 1A, 600mA | - | 39 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 72% | 5.08" L x 3.05" W x 1.59" H (129.0mm x 77.5mm x 40.5mm) | 72" (1.83m) | 0°C ~ 50°C | DIN, 5 Pin | CE | |
|
EPS050100-P5PAC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 5V | 1A | - | 5 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
EPS050050U-I38-SZAC/DC WALL MOUNT ADAPTER 5V 2.5W |
0 | - |
|
数据表 |
EPS-US USB (2.5W-5W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 500mA | - | 2.5 W | 500mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level IV | 2.40" L x 1.30" W x 1.38" H (61.0mm x 33.0mm x 35.0mm) | - | 0°C ~ 40°C | USB A Receptacle | CE, cULus | |
|
EPS050100U-I38-SZAC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
EPS-US USB (2.5W-5W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 300mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level IV | 2.87" L x 1.14" W x 1.75" H (73.0mm x 29.0mm x 44.5mm) | - | 0°C ~ 40°C | USB A Receptacle | CE, cULus | |
|
EMS120125-P2P-SZAC/DC WALL MOUNT ADAPTER 12V 15W |
0 | - |
|
数据表 |
EMS Multi-Blade (15W) | Bulk | Obsolete | International | Wall Mount (Class II) | 90 ~ 255 VAC | 12V | 1.25A | - | 15 W | 300mW (Max) | Multi-Blade (Included) | Positive Tip, Negative Sleeve | ITE (Commercial) | Multi-Blade | Level IV | 2.91" L x 1.71" W x 1.34" H (74.0mm x 43.5mm x 34.0mm) | 72" (1.83m) | 0°C ~ 40°C | Phono Plug, 2.5mm O.D. x 14.5mm | CB, CE | |
|
FWC1805-760F-NCAC/DC DESKTOP ADAPTER 5V 18W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 5V | 3.6A | - | 18 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC1812-760F-NCAC/DC DESKTOP ADAPTER 12V 18W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 1.5A | - | 18 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
FWPC10012-D8F-NCAC/DC DESKTOP ADAPTER 12V 100W |
0 | - |
|
数据表 |
FWPC100 | Bulk | Obsolete | North America | Desktop (Class II) | 110VAC | 12V | 8.33A | - | 100 W | - | Cord (Sold Separately) | - | ITE (Commercial) | - | 80% | - | - | 0°C ~ 40°C | DIN, 8 Pin | - | |
|
|
FWPC10024-D5F-NCAC/DC DESKTOP ADAPTER 24V 100W |
0 | - |
|
数据表 |
FWPC100 | Bulk | Obsolete | North America | Desktop (Class II) | 110VAC | 24V | 4.15A | - | 100 W | - | Cord (Sold Separately) | - | ITE (Commercial) | - | 80% | - | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
FWC1805-760FAC/DC DESKTOP ADAPTER 5V 18W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 5V | 3.6A | - | 18 W | 500mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC1812-760FAC/DC DESKTOP ADAPTER 12V 18W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 1.5A | - | 18 W | 500mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC1818-760FAC/DC DESKTOP ADAPTER 18V 18W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 18V | 1A | - | 18 W | 500mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC1824-760FAC/DC DESKTOP ADAPTER 24V 19W |
0 | - |
|
数据表 |
FWC18 (18W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 800mA | - | 19 W | 500mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|

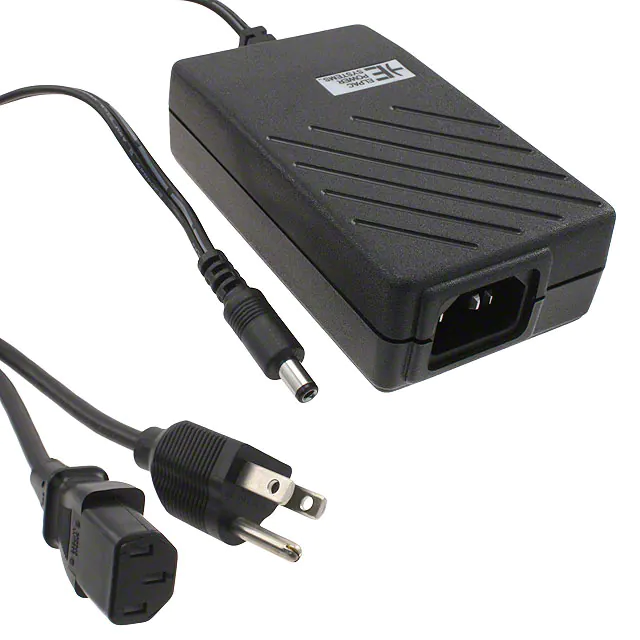

FWC3009-760FAC/DC DESKTOP ADAPTER 9V 30W |
0 | - |
|
数据表 |
FWC30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 9V | 3.3A | - | 30 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC3012-760FAC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
FWC30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 2.5A | - | 30 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC3015-760FAC/DC DESKTOP ADAPTER 15V 30W |
0 | - |
|
数据表 |
FWC30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 15V | 2A | - | 30 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL | |
|
|
FWC3018-760FAC/DC DESKTOP ADAPTER 18V 31W |
0 | - |
|
数据表 |
FWC30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 18V | 1.7A | - | 31 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus, UL |
