交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETS240250UTC-P5P-SZAC/DC DESKTOP ADAPTER 24V 60W |
0 | - |
|
数据表 |
ETS DESKTOP (60W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 24V | 2.5A | - | 60 W | 500mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C6 | Level V | 4.57" L x 1.97" W x 1.22" H (116.0mm x 50.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE | |
|

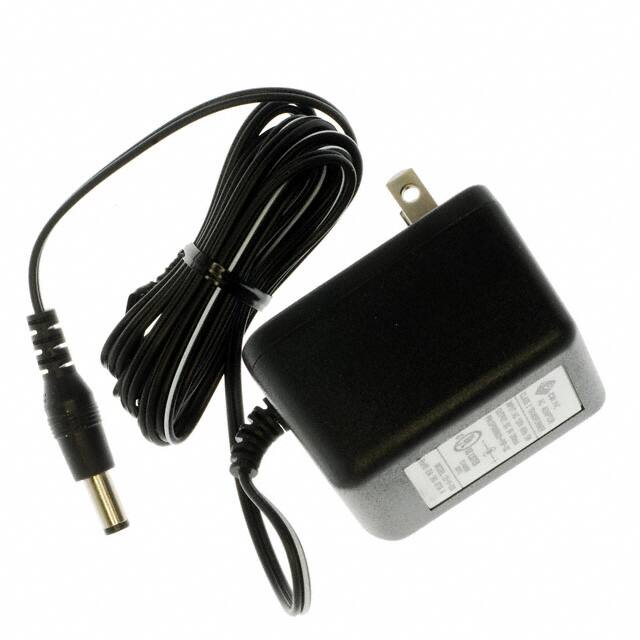

DPD090020-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 1.8W |
0 | - |
|
数据表 |
- | Box | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 200mA | - | 1.8 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.20" L x 1.73" W x 1.42" H (56.0mm x 44.0mm x 36.0mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
DPD090050-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 4.5W |
0 | - |
|
数据表 |
- | Box | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 500mA | - | 4.5 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.47" L x 2.00" W x 1.65" H (62.7mm x 51.0mm x 42.0mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|

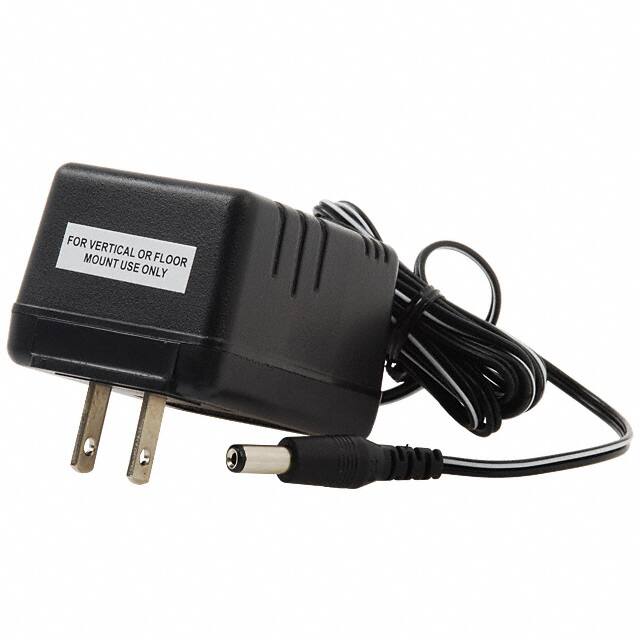

DPD120050-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 500mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.60" L x 1.97" W x 1.59" H (66.0mm x 50.1mm x 40.5mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
DPD120080-P5P-SZAC/DC WALL MNT ADAPTER 12V 9.6W |
0 | - |
|
数据表 |
- | Box | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 800mA | - | 9.6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 3.21" L x 2.31" W x 1.93" H (81.6mm x 58.7mm x 49.1mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
DPD240040-P6P-SZAC/DC WALL MNT ADAPTER 24V 9.6W |
0 | - |
|
数据表 |
- | Box | Obsolete | North America | Wall Mount (Class II) | 120VAC | 24V | 400mA | - | 9.6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 3.24" L x 2.24" W x 1.96" H (82.3mm x 57.0mm x 49.8mm) | 72" (1.83m) | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
DPD090050E-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 4.5W |
0 | - |
|
数据表 |
- | Box | Obsolete | Europe | Wall Mount (Class II) | 230VAC | 9V | 500mA | - | 4.5 W | - | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | - | 2.91" L x 2.05" W x 1.61" H (74.0mm x 52.0mm x 40.9mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|

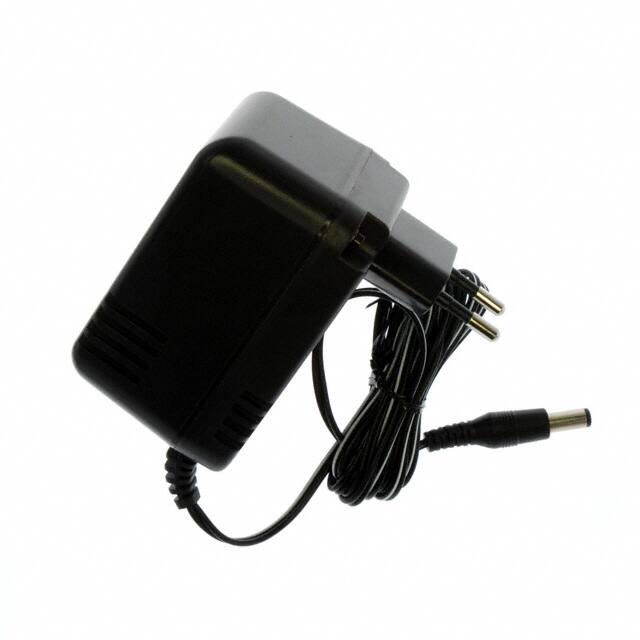

DPD120080E-P5P-SZAC/DC WALL MNT ADAPTER 12V 9.6W |
0 | - |
|
数据表 |
- | Box | Obsolete | Europe | Wall Mount (Class II) | 230VAC | 12V | 800mA | - | 9.6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | - | 3.21" L x 2.31" W x 1.93" H (81.6mm x 58.7mm x 49.1mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
FW3012-760FAC/DC DESKTOP ADAPTER 12V 29W |
0 | - |
|
数据表 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 2.4A | - | 29 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 83% | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cULus, TUVgs | |
|
|
FW3015-760FAC/DC DESKTOP ADAPTER 15V 30W |
0 | - |
|
数据表 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 15V | 2A | - | 30 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 84% | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cULus, TUVgs | |
|
|
FW3024-760FAC/DC DESKTOP ADAPTER 24V 36W |
0 | - |
|
数据表 |
FW30 (30W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 1.5A | - | 36 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 86% | 4.31" L x 2.54" W x 1.30" H (109.6mm x 64.5mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cULus, TUVgs | |
|
FW5012-760FAC/DC DESKTOP ADAPTER 12V 50W |
0 | - |
|
数据表 |
FW50 (50W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 4.15A | - | 50 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 83% | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, TUVgs | |
|
|
FW5024-760FAC/DC DESKTOP ADAPTER 24V 50W |
0 | - |
|
数据表 |
FW50 (50W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 2.1A | - | 50 W | 300mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 83% | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | 72" (1.83m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, TUVgs | |
|
MW1212-760-NC-BKAC/DC DESKTOP ADAPTER 12V 12W |
0 | - |
|
数据表 |
MW12 (12W) | Bulk | Obsolete | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 1A | - | 12 W | - | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | 80% | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
EPS030100-P7PAC/DC WALL MOUNT ADAPTER 3V 3W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 3V | 1A | - | 3 W | 500mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level IV | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | cULus | |
|
|
EPS045100-P7PAC/DC WALL MNT ADAPTER 4.5V 4.5W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 4.5V | 1A | - | 4.5 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | cULus | |
|
EPS050100-P6PAC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 5V | 1A | - | 5 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | cULus | |
|
|
EPS060100-P7PAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 6V | 1A | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | cULus | |
|

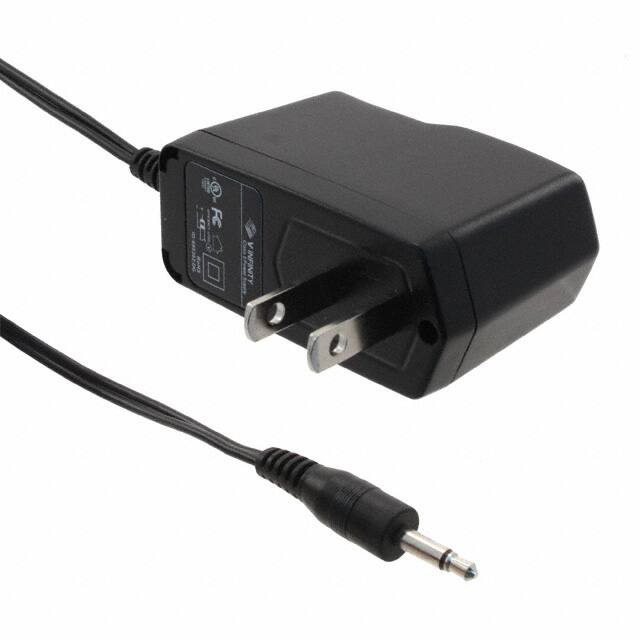

EPS090066-P1PAC/DC WALL MOUNT ADAPTER 9V 5.9W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 9V | 660mA | - | 5.9 W | 300mW (Max) | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Phono Plug, 3.5mm O.D. x 14.0mm | cULus | |
|
EPS090066-P5PAC/DC WALL MOUNT ADAPTER 9V 5.9W |
0 | - |
|
数据表 |
EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 132 VAC | 9V | 660mA | - | 5.9 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | cULus |
