交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBC275-1015LAC/DC CONVERTER 15V 160/275W |
4 | - |
|
数据表 |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 160W (275W Forced Air) | - | - | 85 ~ 264 VAC | - | 10.66 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
MBC275-1048LAC/DC CONVERTER 48V 160/275W |
4 | - |
|
数据表 |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
MBC275-1T12LAC/DC CONVERTER 12V 160/275W |
3 | - |
|
数据表 |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 85 ~ 264 VAC | - | 13.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
|
MBC201-1015GAC/DC CONVERTER 15V 160/200W |
0 | - |
|
数据表 |
MBC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 15V | - | - | 160W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 10.66 A | - | - | Medical | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
|
MBC201-1T48GAC/DC CONVERTER 48V 160/200W |
0 | - |
|
数据表 |
MBC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 48V | - | - | 160W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 3.33 A | - | - | Medical | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
1011248GRN-110-2002 |
6 | - |
|
数据表 |
GRN-110 (110W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 110W | - | - | 85 ~ 264 VAC | - | 12 A | - | 5 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|

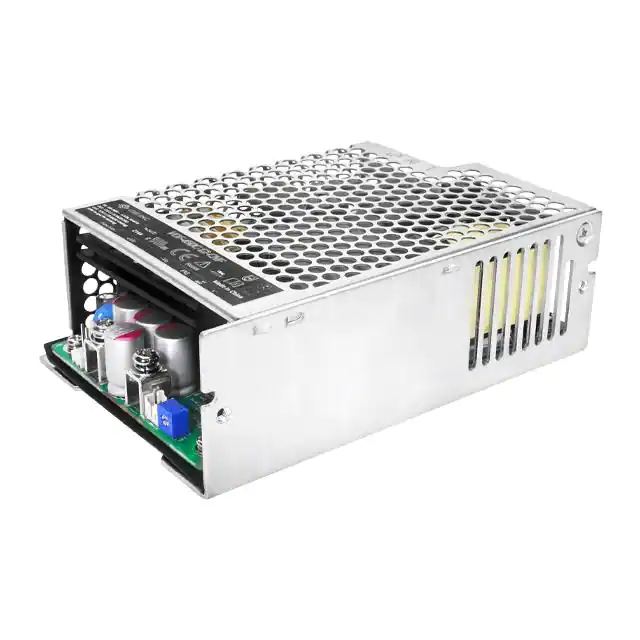

VOF-450C-48-CNFAC/DC CONVERTER 48V 451W |
9 | - |
|
数据表 |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 451W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 9.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
VOF-450C-36-CNFAC/DC CONVERTER 36V 450W |
8 | - |
|
数据表 |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 450W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
VOF-450C-27-CNFAC/DC CONVERTER 27V 451W |
8 | - |
|
数据表 |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 451W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 16.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
LOF550-20B24-CAC/DC CONVERTER 24V 310W |
21 | - |
|
数据表 |
LOF550-20Bxx-C (450W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 310W (550W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 22.9 A | - | - | Household Appliances, ITE (Commercial), Laboratory | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.11" L x 3.39" W x 1.69" H (129.8mm x 86.1mm x 42.9mm) | ||
|
PM301-12AAC/DC CONVERTER 12V 200W |
10 | - |
|
数据表 |
PM301 (300W) | Bag | Active | Open Frame | 1 | 12V | - | - | 200W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C | DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 3.00" W x 1.38" H (152.4mm x 76.2mm x 35.1mm) | ||
|
1011412GRN-110-1004 OVP |
14 | - |
|
数据表 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 15V | - | - | 110W | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
1011410GRN-110-1002 OVP |
3 | - |
|
数据表 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 5V | - | - | 110W | - | - | 85 ~ 264 VAC | - | 22 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
1011411GRN-110-1003 OVP |
3 | - |
|
数据表 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 12V | - | - | 110W | - | - | 85 ~ 264 VAC | - | 9.2 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
VOF-450C-15-CNFAC/DC CONVERTER 15V 401W |
10 | - |
|
数据表 |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 401W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 26.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
ECM100US03AC/DC CONVERTER 3.3V 100W |
13 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) | ||
|
PM301-14AAC/DC CONVERTER 24V 200W |
21 | - |
|
数据表 |
PM301 (300W) | Bag | Active | Open Frame | 1 | 24V | - | - | 200W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C | DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 3.00" W x 1.38" H (152.4mm x 76.2mm x 35.1mm) | ||
|
MAD180US24B-MISOLATED / 180W / VOUT:24 |
6 | - |
|
数据表 |
MAD180 (180W) | Box | Active | Open Frame | 1 | 24V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.36" H (76.2mm x 50.8mm x 34.5mm) | ||
|
MAD180US12B-MISOLATED / 180W / VOUT:12 |
4 | - |
|
数据表 |
MAD180 (180W) | Box | Active | Open Frame | 1 | 12V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.36" H (76.2mm x 50.8mm x 34.5mm) | ||
|
MAD180US48B-MISOLATED / 180W / VOUT:48 |
2 | - |
|
数据表 |
MAD180 (180W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.36" H (76.2mm x 50.8mm x 34.5mm) |
