交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABC275-1030LAC/DC CONVERTER 30V 160/275W |
2 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 30V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 5.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
|
ABC275-1T12LAC/DC CONVERTER 12V 160/275W |
2 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 13.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
MB24-1.2-AGAC/DC CONVERTER 24V |
15 | - |
|
数据表 |
Linear B | Bulk | Obsolete | Linear | 1 | 24V | - | - | - | - | - | 100 ~ 240 VAC | - | 1.2 A | - | - | Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.88" L x 4.00" W x 1.63" H (124.0mm x 101.6mm x 41.4mm) | ||
|
1011260GRN-80-2004 |
24 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 15V | -15V | - | 80W | - | - | 85 ~ 264 VAC | - | 3 A | - | 3 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
1011259GRN-80-2003 |
8 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 12V | -12V | - | 80W | - | - | 85 ~ 264 VAC | - | 4 A | - | 4 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
1011257GRN-80-2001 |
2 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 5V | 24V | - | 80W | - | - | 85 ~ 264 VAC | - | 8 A | - | 2 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
ULP275-1024AC/DC CONVERTER 24V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 6.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | ||
|
|
ULP275-1048AC/DC CONVERTER 48V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | ||
|
|
ULP275-0312AC/DC CONVERTER 12V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 13.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
|
ULP275-0015AC/DC CONVERTER 15V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 10.66 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
|
ULP275-0315AC/DC CONVERTER 15V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 10.66 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
|
ULP275-0324AC/DC CONVERTER 24V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 6.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
|
ULP275-0330AC/DC CONVERTER 30V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 30V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 5.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
|
ULP275-0348AC/DC CONVERTER 48V 160W |
4 | - |
|
数据表 |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) | ||
|
LM600-12B27-QAC/DC CONVERTER 27V 599W |
7 | - |
|
数据表 |
LM600-12Bxx-Q (600W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 27V | - | - | 599W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 22.2 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) | ||
|
ABC201-1T48GAC/DC CONVERTER 48V 160/200W |
0 | - |
|
数据表 |
ABC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 48V | - | - | 160W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
HWB060S-24AC/DC CONVERTER 24V 60W |
6 | - |
|
数据表 |
HWB (60W) | Bulk | Obsolete | Open Frame | 1 | 24V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 3.5 A | - | - | ITE (Commercial) | - | - | - | - | -10°C ~ 60°C | Load Sharing, Universal Input | Chassis Mount | 6.69" L x 3.62" W x 1.50" H (170.0mm x 92.0mm x 38.0mm) | ||
|
CPS258-MAC/DC CONVERTER 48V 155W |
0 | - |
|
数据表 |
CPS250-M (250W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 155W (250W Forced Air) | - | - | 90 ~ 264 VAC | - | 3.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) | ||
|
LDA100W-5-SNAC/DC CONVERTER 5V 100W |
2 | - |
|
数据表 |
LDA (100W) | Box | Obsolete | Enclosed | 1 | 5V | - | - | 100W | - | - | 85 ~ 132 VAC, 170 ~ 264 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.92" L x 2.83" W x 1.77" H (252.0mm x 72.0mm x 45.0mm) | ||
|

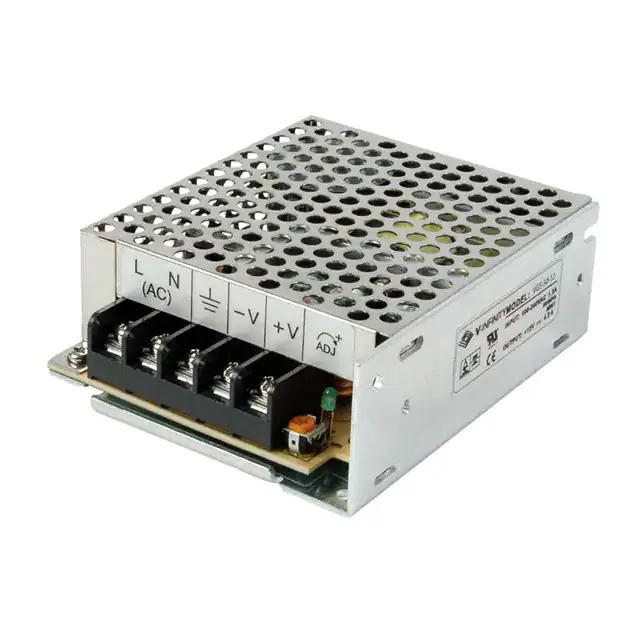

VGS-50-3.3AC/DC CONVERTER 3.3V 50W |
0 | - |
|
数据表 |
VGS-50 (53W) | Bulk | Obsolete | Enclosed | 1 | 3.3V | - | - | 50W | - | - | 88 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm) |
