交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SWS300-3AC/DC CONVERTER 3.3V 300W |
3 | - |
|
数据表 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 3.3V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 55 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
PBA50F-5-CAC/DC CONVERTER 5V |
2 | - |
|
数据表 |
PBA (50W) | Box | Active | Open Frame | 1 | 5V | - | - | - | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | ||
|
ULP180-0058AC/DC CONVERTER 58V 120W |
2 | - |
|
数据表 |
ULP180 (180W) | Bulk | Active | Open Frame | 1 | 58V | - | - | 120W (180W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 2.07 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 0.75" H (101.6mm x 63.5mm x 19.1mm) | ||
|

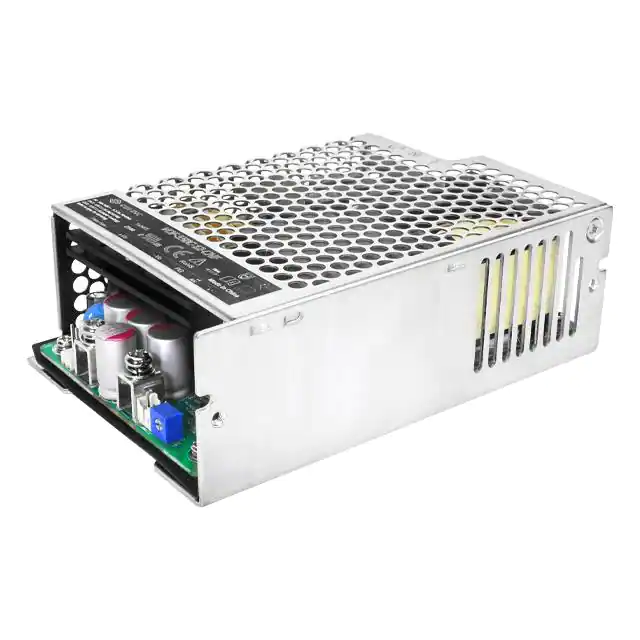

VOF-550C-48-CNFAC/DC CONVERTER 48V 550W |
2 | - |
|
数据表 |
VOF-550C-CNF (550W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 550W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 11.46 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
AMEOF450-48SHAMJZAC/DC CONVERTER 45.6V 50.4V 450W |
4 | - |
|
数据表 |
AMEOF450-HAMJZ (450W) | Case | Obsolete | Open Frame | 2 | 45.6V | 50.4V | - | 450W | - | - | 90 ~ 264 VAC | - | - | - | - | Industrial, ITE (Commercial), Medical | - | - | - | - | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 3.00" L x 1.52" W x 5.00" H (76.2mm x 38.6mm x 127.0mm) | ||
|
AMEOF450-24SHAMJZAC/DC CONVERTER 22.8V 25.2V 450W |
4 | - |
|
数据表 |
AMEOF450-HAMJZ (450W) | Case | Obsolete | Open Frame | 2 | 22.8V | 25.2V | - | 450W | - | - | 90 ~ 264 VAC | - | - | - | - | Industrial, ITE (Commercial), Medical | - | - | - | - | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 3.00" L x 1.52" W x 5.00" H (76.2mm x 38.6mm x 127.0mm) | ||
|
AMESP600-36SMNZAC/DC CONVERTER 5V 36V 600W |
2 | - |
|
数据表 |
AMESP600-MNZ (600W) | Case | Obsolete | Enclosed | 2 | 36V | - | - | 600W | - | - | 80 ~ 277 VAC, 110 ~ 390 VDC | - | 1 A | - | 16.7 A | Industrial | - | - | - | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 8.00" L x 4.00" x W 1.60" H (203.2mm x 101.6mm x 40.6mm) | ||
|
VOF-450C-24AC/DC CONVERTER 24V 450W |
17 | - |
|
数据表 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 450W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 18.75 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|
VOF-450C-15AC/DC CONVERTER 15V 401W |
12 | - |
|
数据表 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 401W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 26.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|
VOF-450C-36AC/DC CONVERTER 36V 450W |
5 | - |
|
数据表 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 36V | - | - | 450W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|
LM600-12B15-QAC/DC CONVERTER 15V 600W |
7 | - |
|
数据表 |
LM600-12Bxx-Q (600W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 600W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) | ||
|
ARFS-3011M-1205AC/DC CONVERTER 12V 300W |
4 | - |
|
数据表 |
ARFS-3011M (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 300W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
|
ARFS-3411M-2405AC/DC CONVERTER 24V 336W |
2 | - |
|
数据表 |
ARFS-3411M (336W) | Box | Active | Open Frame | 1 | 24V | - | - | 336W | - | - | 90 ~ 264 VAC | - | 14 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
|
AMESP600-27SMNZAC/DC CONVERTER 5V 27V 600W |
4 | - |
|
数据表 |
AMESP600-MNZ (600W) | Case | Obsolete | Enclosed | 2 | 5V | - | - | 600W | - | - | 80 ~ 277 VAC, 110 ~ 390 VDC | - | 1 A | - | 22.3 A | Industrial | - | - | - | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 8.00" L x 4.00" x W 1.60" H (203.2mm x 101.6mm x 40.6mm) | ||
|
AMESP600-15SMNZAC/DC CONVERTER 5V 15V 600W |
4 | - |
|
数据表 |
AMESP600-MNZ (600W) | Case | Obsolete | Enclosed | 2 | 5V | - | - | 600W | - | - | 80 ~ 277 VAC, 110 ~ 390 VDC | - | 1 A | - | 40 A | Industrial | - | - | - | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 8.00" L x 4.00" x W 1.60" H (203.2mm x 101.6mm x 40.6mm) | ||
|
VOF-450C-48AC/DC CONVERTER 48V 451W |
2 | - |
|
数据表 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 451W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 9.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|
ABC275-1T24LAC/DC CONVERTER 24V 160/275W |
16 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
ABC275-1048LAC/DC CONVERTER 48V 160/275W |
10 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
ABC275-1T48LAC/DC CONVERTER 48V 160W |
8 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
ABC275-1T15LAC/DC CONVERTER 15V 160/275W |
5 | - |
|
数据表 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC | - | 10.66 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) |
