交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECP130PS24AC/DC CONVERTER 24V 100W |
135 | - |
|
数据表 |
ECP130 (130W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W (130W Forced Air) | - | - | 85 ~ 264 VAC | - | 4.16 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) | ||
|
UHP-350R-24AC/DC CONVERTER 24V 350W |
628 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 14.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|

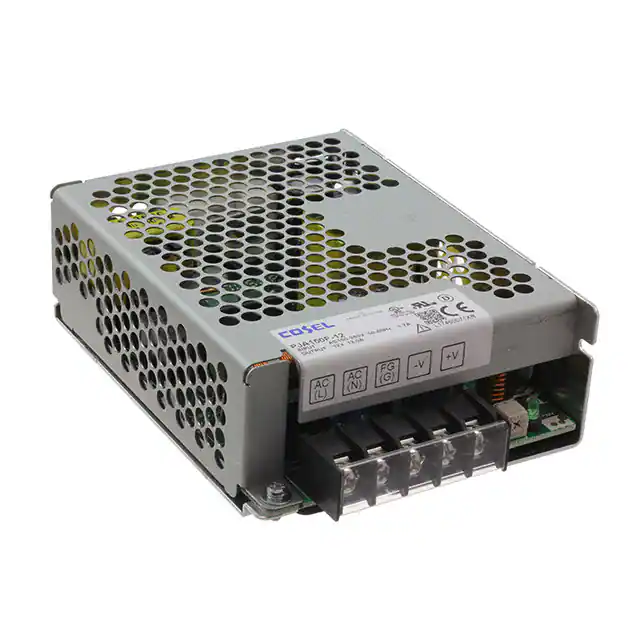

PJA150F-24AC/DC CONVERTER 24V 150W |
151 | - |
|
数据表 |
PJA (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 6.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.08" L x 1.61" W x 3.82" H (129.0mm x 40.9mm x 97.0mm) | ||
|
SLB65S24CAC DC POWER SUPPLY |
0 | - |
|
数据表 |
SLB65 (65W) | Box | Active | Open Frame | 1 | 24V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 2.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | ||
|

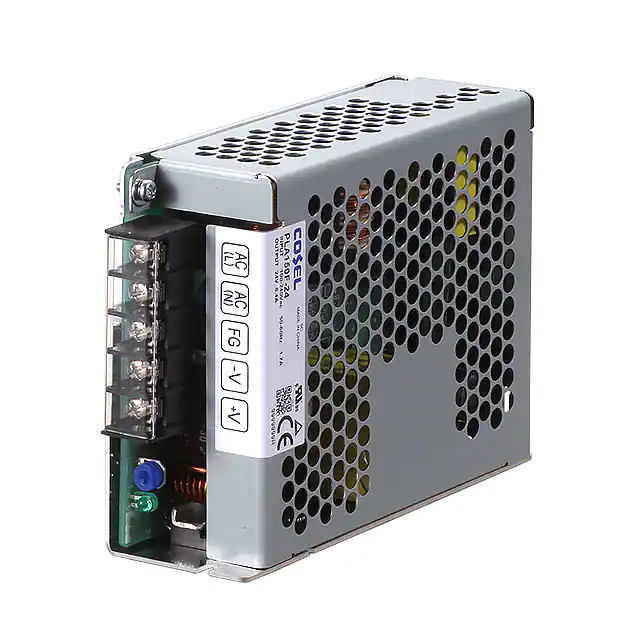

PLA150F-24AC/DC CONVERTER 24V 150W |
51 | - |
|
数据表 |
PLA (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 6.4 A | - | - | ITE (Commercial) | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | ||
|
SE-450-48AC/DC CONVERTER 48V 451W |
70 | - |
|
数据表 |
SE-450 (450W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 451W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 9.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 8.86" L x 4.88" W x 1.97" H (225.0mm x 124.0mm x 50.0mm) | ||
|
AWSP150-12AC/DC CONVERTER 12V 150W |
57 | - |
|
数据表 |
AWSP150 | Box | Active | Enclosed | 1 | 12V | - | - | 150W | - | - | 88 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) | ||
|

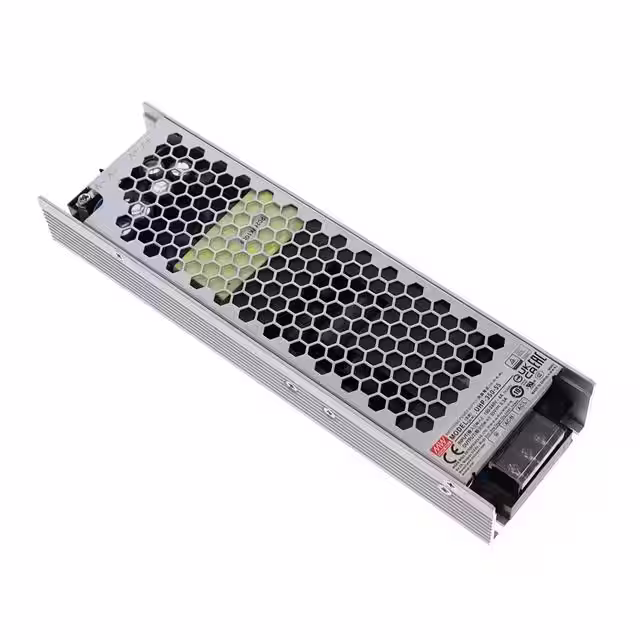

UHP-350-55AC/DC CONVERTER 55V 347W |
35 | - |
|
数据表 |
UHP-350 (350W) | Bulk | Active | Enclosed | 1 | 55V | - | - | 347W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
RAC150-24SG/ENCAC/DC CONVERTER 24V 125W |
224 | - |
|
数据表 |
POWERLINE RAC150-G (150W) | Box | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 125W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.13" L x 2.44" W x 1.38" H (105.0mm x 62.0mm x 35.0mm) | ||
|
TXLN 080-312M2AC/DC CONVERTER 5V +/-12V 94W |
217 | - |
|
数据表 |
TXLN 080 (80W) | Box | Active | Enclosed | 3 | 5V | 12V | -12V | 94W | - | - | 88 ~ 264 VAC, 125 ~ 375 VDC | - | 8 A | - | 3.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.74" W x 1.50" H (159.0mm x 95.0mm x 38.0mm) | ||
|
QPDF-150-24AC/DC CONVERTER 24V 150W |
337 | - |
|
数据表 |
QPDF-150 (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm) | ||
|
EPL150PS12AC/DC CONVERTER 12V 100W |
30 | - |
|
数据表 |
EPL150 (150W) | Box | Active | Open Frame | 1 | 12V | - | - | 100W (150W Forced Air) | - | - | 80 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) | ||
|
SE-450-12AC/DC CONVERTER 12V 450W |
143 | - |
|
数据表 |
SE-450 (450W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 450W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 37.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 8.86" L x 4.88" W x 1.97" H (225.0mm x 124.0mm x 50.0mm) | ||
|
NMP1K2-CE##HK-00AC/DC CNVRTR 5V 12V 24V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 24V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CE##KC-00AC/DC CNVRTR 5V 12V 48V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 48V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CE##KE-00AC/DC CNVRTR 5V 12V 48V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 48V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CE##KH-00AC/DC CNVRTR 5V 12V 48V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 48V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
FSP220-50FGBBI(M)AC/DC CNVRTR 3.3V 5V +/-12V 258W |
107 | - |
|
数据表 |
FSP220-50FGBBI(M) (220W) | Box | Active | Enclosed | 4 | 3.3V | 5V | 12V | 258W | -12V | - | 90 ~ 264 VAC | - | 8 A | - | 12 A | ITE (Commercial), Medical | - | 14 A | 300 mA | - | 50°C | Standby Output, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) | ||
|
CSS150-12AC/DC CONVERTER 12V 100W |
89 | - |
|
数据表 |
CSS150 (150W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 100W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.3 A | - | - | Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | ||
|
MB65S24KAC/DC CONVERTER 24V 65W |
53 | - |
|
数据表 |
MB65S (65W) | Box | Active | Open Frame | 1 | 24V | - | - | 65W | - | - | 85 ~ 264 VAC | - | 2.7 A | - | - | Medical | - | - | - | 4.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) |
