交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600SL-0251-DK000AC/DC CONVERTER 3X12V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 425W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-5450-DK000AC/DC CNVT 2X12V 48V 2X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 5 | 12V | 12V | 48V | 300W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | 5 A | 3.75 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-5103-DK000AC/DC CNVRTR 2X12V 5V 24V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 275W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
UHP-200R-5AC/DC CONVERTER 5V 200W |
278 | - |
|
数据表 |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 5V | - | - | 200W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 40 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | ||
|
HRP-150-12AC/DC CONVERTER 12V 156W |
35 | - |
|
数据表 |
HRP-150 (150W) | Box | Active | Enclosed | 1 | 12V | - | - | 156W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
ECP60UD03AC/DC CONVERTER 5V 24V 60W |
648 | - |
|
数据表 |
ECP (60W) | Box | Active | Open Frame | 2 | 5V | 24V | - | 60W | - | - | 85 ~ 264 VAC | - | 7 A | - | 1.5 A | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|

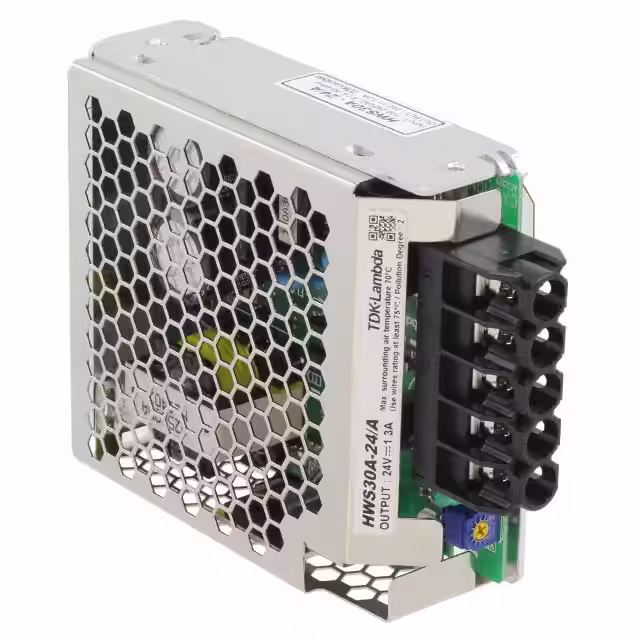

HWS30A-24/AAC/DC CONVERTER 24V 30W |
331 | - |
|
数据表 |
HWS-A (30W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 30W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.3 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.74" L x 1.24" W x 3.23" H (95.0mm x 31.5mm x 82.0mm) | ||
|
NMP1K2-CCK##C-00AC/DC CONVERTER 2X5V 48V 5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
UHP-200-55AC/DC CONVERTER 55V 198W |
30 | - |
|
数据表 |
UHP-200 (200W) | Bulk | Active | Enclosed | 1 | 55V | - | - | 198W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 3.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | ||
|
NMP1K2-CCK##E-00AC/DC CNVRTR 2X5V 48V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
LFMWLP75-1303AC/DC CONVERTER 24V 75W |
171 | - |
|
数据表 |
MWLP75 (75W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 75W | - | - | 85 ~ 264 VAC, 390VDC | - | 3.12 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | ||
|
NMP1K2-CCK##H-00AC/DC CNVRTR 2X5V 48V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
TPP 30-112-JAC/DC CONVERTER 12V 30W |
33 | - |
|
数据表 |
TPP 30-J (30W) | Box | Active | Enclosed | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.95" L x 1.50" W x 1.00" H (100.3mm x 38.1mm x 25.4mm) | ||
|
PMT-48V350W1ARAC/DC CONVERTER 48V 350W |
44 | - |
|
数据表 |
PMT (350W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 350W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | ||
|
FSP350-F35-A24AC/DC CONVERTER 24V 199W |
78 | - |
|
数据表 |
FSP350-F35 A (350W) | Box | Active | Open Frame | 1 | 24V | - | - | 199W (350W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial) | - | - | - | 500 V | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.4mm) | ||
|
|
HB48-0.5-AGAC/DC CONVERTER 48V 24W |
103 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 1 | 48V | - | - | 24W | - | - | 100, 120, 220, 230, 240 VAC | - | 500 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 50°C | Adjustable Output | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) | ||
|
NMP1K2-CCK##K-00AC/DC CONVERTER 2X5V 2X48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CCK#C#-00AC/DC CONVERTER 2X5V 48V 5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CCK#E#-00AC/DC CNVRTR 2X5V 48V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CCK#H#-00AC/DC CNVRTR 2X5V 48V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 48V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
