交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM70S120-SPower Supp, Batt, Cond Cincon Electronics Co. LTD |
9 | - |
|
数据表 |
CFM70S (70W) | Box | Active | Open Frame | 1 | 12V | - | - | 70W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.20" L x 2.17" W x 1.20" H (106.7mm x 55.1mm x 30.5mm) |
|
|
CFM101S120AC/DC CONVERTER 12V 101W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM101S (100W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 101W | - | - | 90 ~ 264 VAC | - | 8.4 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
CFM101S150AC/DC CONVERTER 15V 101W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM101S (100W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 101W | - | - | 90 ~ 264 VAC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
|
CFM101S200AC/DC CONVERTER 20V 100W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM101S (100W) | Box | Obsolete | Open Frame | 1 | 20V | - | - | 100W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
|
CFM101S240AC/DC CONVERTER 24V 101W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM101S (100W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 101W | - | - | 90 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
CFM201S120AC/DC CONVERTER 12V 200W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM201S (200W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 16.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.44" H (127.0mm x 76.2mm x 36.6mm) |
|
|
CFM201S240AC/DC CONVERTER 24V 200W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM201S (200W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 8.34 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.44" H (127.0mm x 76.2mm x 36.6mm) |
|
|
CFM201S360AC/DC CONVERTER 36V 200W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM201S (200W) | Box | Obsolete | Open Frame | 1 | 36V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 5.56 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.44" H (127.0mm x 76.2mm x 36.6mm) |
|
|
CFM201S480AC/DC CONVERTER 48V 200W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM201S (200W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 4.17 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.44" H (127.0mm x 76.2mm x 36.6mm) |
|

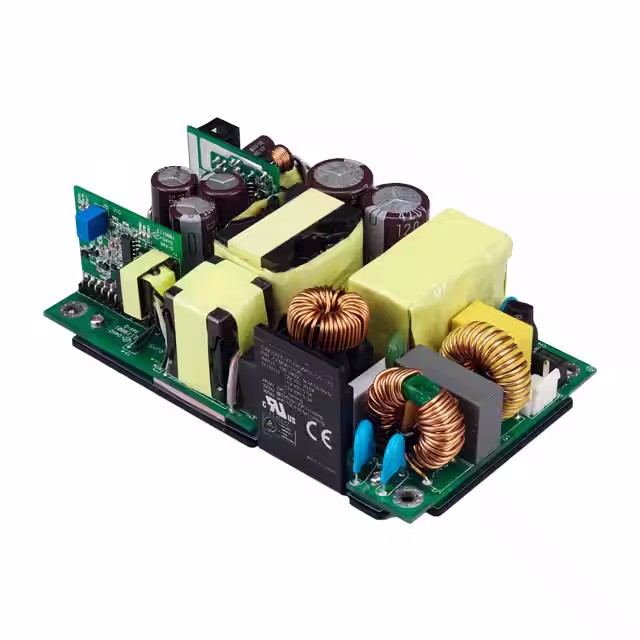

CFM361S240AC/DC CONVERTER 24V 355W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM361S (360W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 355W | - | - | 90 ~ 264 VAC | - | 14.8 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) |
