交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

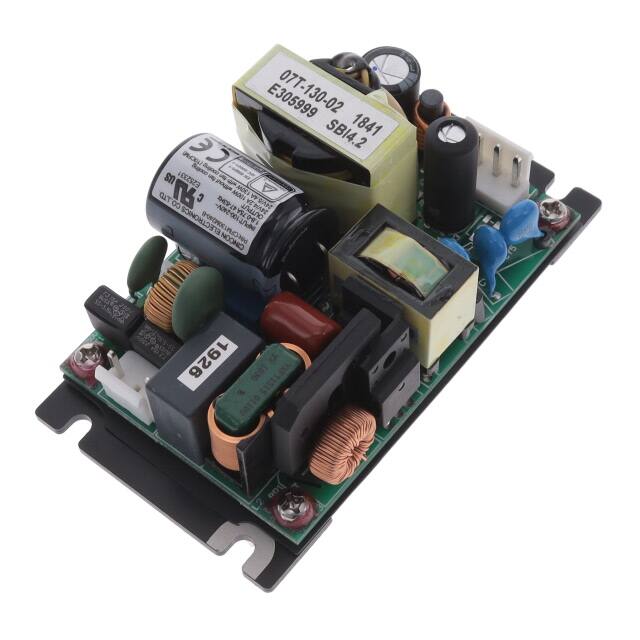

CFM130M240-BAC/DC CONVERTER 24V 101W Cincon Electronics Co. LTD |
9 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Open Frame | 1 | 24V | - | - | 101W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.1mm) |
|

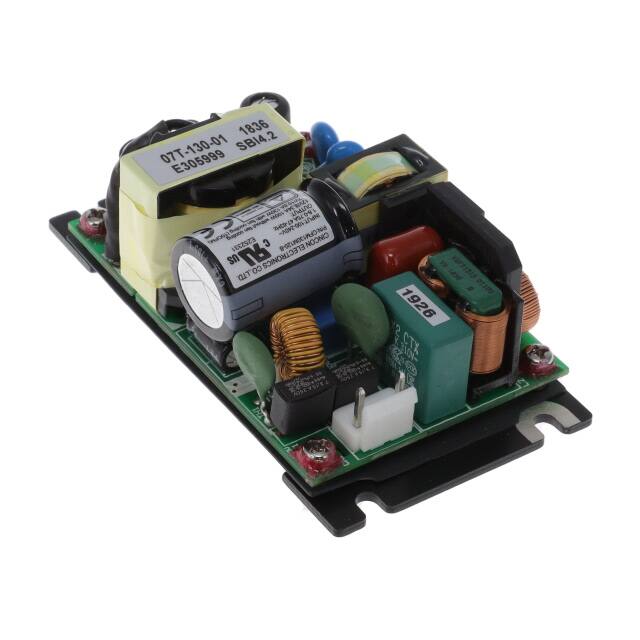

CFM130M120-BAC/DC CONVERTER 12V 100W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Open Frame | 1 | 12V | - | - | 100W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 8.34 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.1mm) |
|

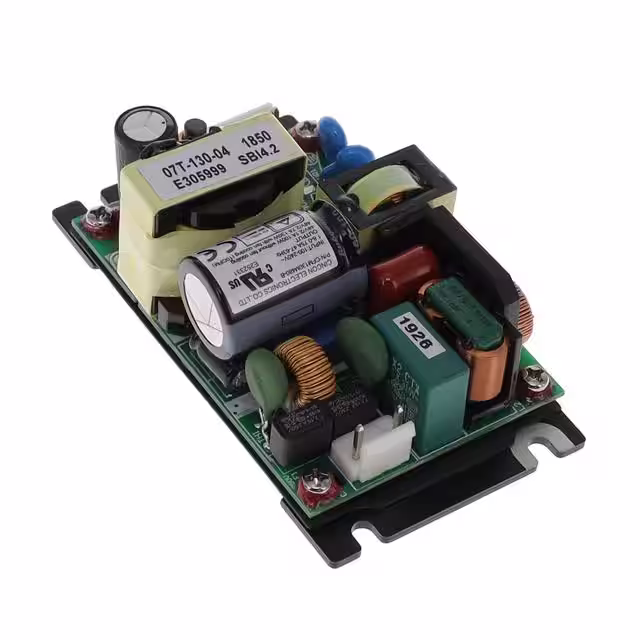

CFM130M480-BAC/DC CONVERTER 48V 101W Cincon Electronics Co. LTD |
8 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Open Frame | 1 | 48V | - | - | 101W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.1 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.1mm) |
|

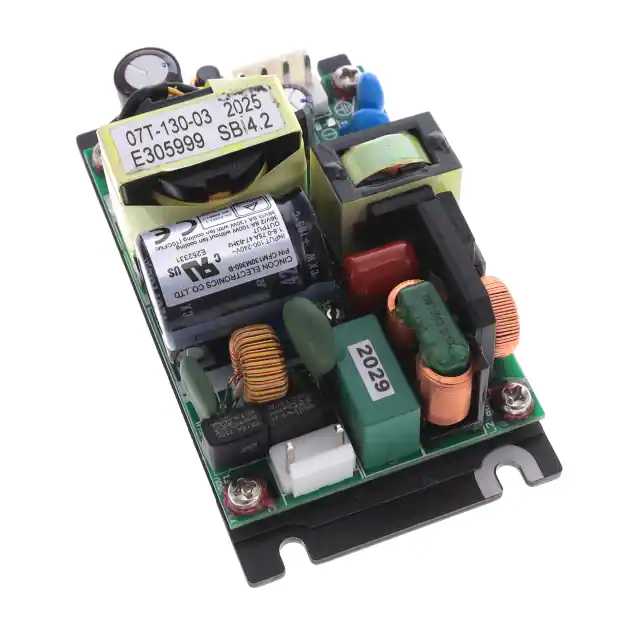

CFM130M360-BAC/DC CONVERTER 36V 101W Cincon Electronics Co. LTD |
10 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Open Frame | 1 | 36V | - | - | 101W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.8 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.1mm) |
|
CFM130M360-CAC/DC CONVERTER 36V 101W Cincon Electronics Co. LTD |
10 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Enclosed | 1 | 36V | - | - | 101W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.8 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|
CFM130M240-CAC/DC CONVERTER 24V 101W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM130M (130W) | Box | Active | Enclosed | 1 | 24V | - | - | 101W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|

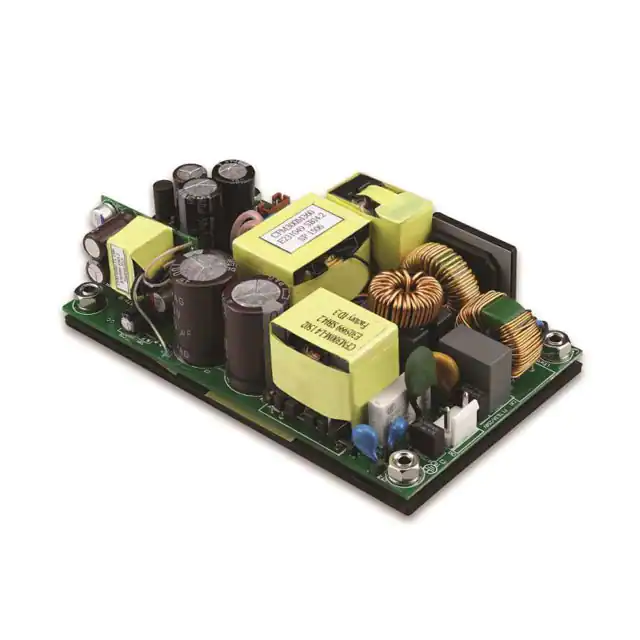

CFM300M360AC/DC CONVERTER 36V 300W Cincon Electronics Co. LTD |
9 | - |
|
数据表 |
CFM300M (300W) | Box | Active | Open Frame | 1 | 36V | - | - | 300W | - | - | 90 ~ 264 VAC | - | 8.34 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|
CFM500M360AC/DC CONVERTER 36V 320W Cincon Electronics Co. LTD |
15 | - |
|
数据表 |
CFM500M (500W) | Box | Active | Open Frame | 1 | 36V | - | - | 320W (500W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.89 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

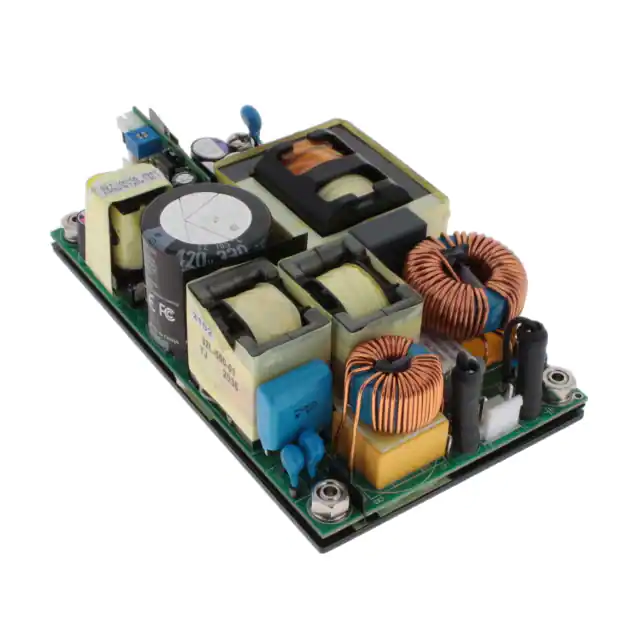

CFM500M120AC/DC CONVERTER 12V 250W Cincon Electronics Co. LTD |
8 | - |
|
数据表 |
CFM500M (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W (500W Forced Air) | - | - | 85 ~ 264 VAC | - | 20.83 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|
CFM500M120CAC/DC CONVERTER 12V 250W Cincon Electronics Co. LTD |
8 | - |
|
数据表 |
CFM500M (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 250W (500W Forced Air) | - | - | 85 ~ 264 VAC | - | 20.83 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
