交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

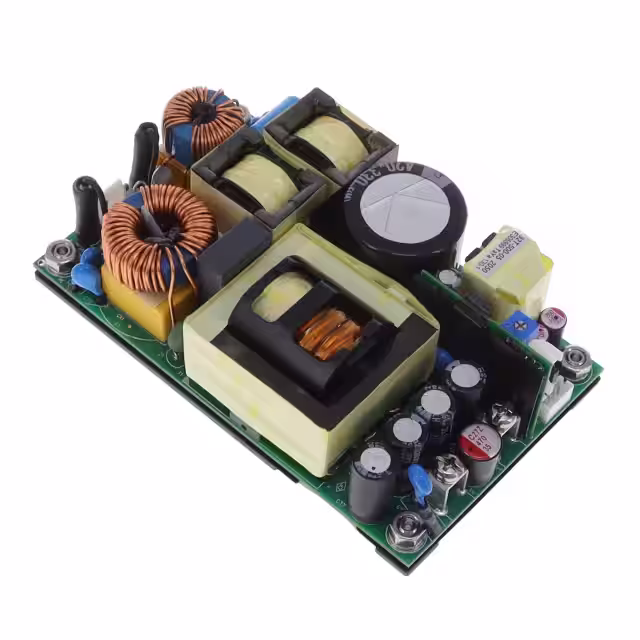

CFM500S180AC/DC CONVERTER 18V 300W Cincon Electronics Co. LTD |
42 | - |
|
数据表 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 18V | - | - | 300W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 16.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

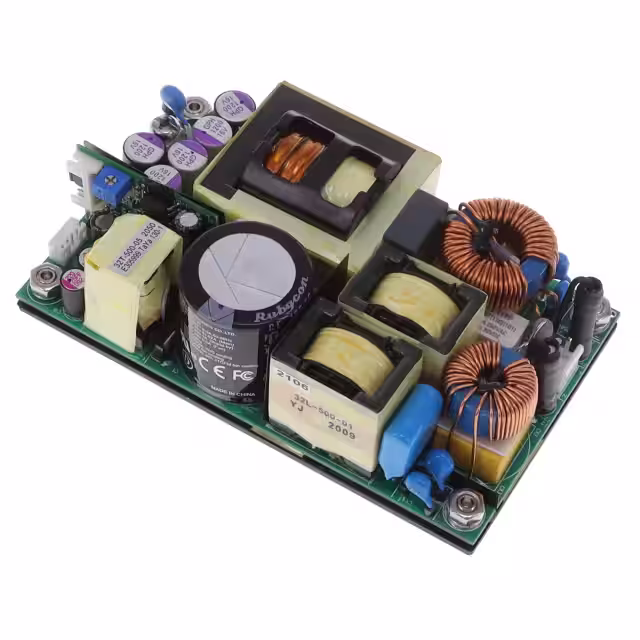

CFM500S120AC/DC CONVERTER 12V 300W Cincon Electronics Co. LTD |
35 | - |
|
数据表 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 300W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 25 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|
CFM500M240AC/DC CONVERTER 24V 320W Cincon Electronics Co. LTD |
46 | - |
|
数据表 |
CFM500M (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 320W (500W Forced Air) | - | - | 85 ~ 264 VAC | - | 13.33 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|
CFM60M120-CAMEDICAL OPEN FRAME AC-DC CFM60M1 Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM60M (60W) | Box | Active | Enclosed | 1 | 12V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | Household Appliances | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 1.97" W x 1.58" H (117.0mm x 50.0mm x 40.0mm) |
|
|
CFM60M120-PMEDICAL OPEN FRAME AC-DC CFM60M1 Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM60M (60W) | Box | Active | Open Frame | 1 | 12V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | Household Appliances | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) |
|
|
CFM60M240-CAMEDICAL OPEN FRAME AC-DC CFM60M2 Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM60M (60W) | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 1.97" W x 1.58" H (117.0mm x 50.0mm x 40.0mm) |
|
|
CFM60M150-CAMEDICAL OPEN FRAME AC-DC CFM60M1 Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM60M (60W) | Box | Active | Enclosed | 1 | 15V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 4 A | - | - | Household Appliances | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 1.97" W x 1.58" H (117.0mm x 50.0mm x 40.0mm) |
|
|
CFM60M240-PMEDICAL OPEN FRAME AC-DC CFM60M2 Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM60M (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) |
|
CFM150S360-BAC/DC CONVERTER 36V 120W Cincon Electronics Co. LTD |
95 | - |
|
数据表 |
CFM150S (150W) | Box | Active | Open Frame | 1 | 36V | - | - | 120W | - | - | 90 ~ 264 VAC | - | 3.33 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, Baseplate, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.36" H (116.8mm x 50.8mm x 34.6mm) |
|
CFM40T-04AC/DC CONVERTER 5V 24V -12V 43W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM40T (40W) | Box | Active | Open Frame | 3 | 5V | 24V | -12V | 43W | - | - | 90 ~ 264 VAC | - | 3 A | - | 1 A | ITE (Commercial) | - | 300 mA | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) |
