交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM70S480PWR SPLS, Batteries Condit Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM70S (70W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 70W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.46 A | - | - | Household Appliances | - | - | - | 4.25 kV | -30°C ~ 80°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm) |
|
CFM06S240-TAC/DC CONVERTER 24V 6W Cincon Electronics Co. LTD |
183 | - |
|
数据表 |
CFM06S (6W) | Box | Active | Open Frame | 1 | 24V | - | - | 6W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 250 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 1.95" L x 0.73" W x 0.59" H (49.5mm x 18.5mm x 15.0mm) |
|
CFM12S240-TAC/DC CONVERTER 24V 12W Cincon Electronics Co. LTD |
302 | - |
|
数据表 |
CFM12S (12W) | Box | Active | Open Frame | 1 | 24V | - | - | 12W | - | - | 90 ~ 264 VAC | - | 500 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) |
|
CFM12S150-TAC/DC CONVERTER 15V 12W Cincon Electronics Co. LTD |
241 | - |
|
数据表 |
CFM12S (12W) | Box | Active | Open Frame | 1 | 15V | - | - | 12W | - | - | 90 ~ 264 VAC | - | 800 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 75°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) |
|
|
CFM12S090-TAC/DC CONVERTER 9V 12W Cincon Electronics Co. LTD |
112 | - |
|
数据表 |
CFM12S (12W) | Box | Active | Open Frame | 1 | 9V | - | - | 12W | - | - | 90 ~ 264 VAC | - | 1.34 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) |
|
CFM25S120-TAC/DC CONVERTER 12V 25W Cincon Electronics Co. LTD |
154 | - |
|
数据表 |
CFM25S (25W) | Box | Active | Open Frame | 1 | 12V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) |
|
CFM70S360-CAAC/DC CONVERTER 36V 70W Cincon Electronics Co. LTD |
118 | - |
|
数据表 |
CFM70S (70W) | Box | Active | Enclosed | 1 | 36V | - | - | 70W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 1.94 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.20" L x 2.44" W x 1.58" H (81.3mm x 62.0mm x 40.0mm) |
|

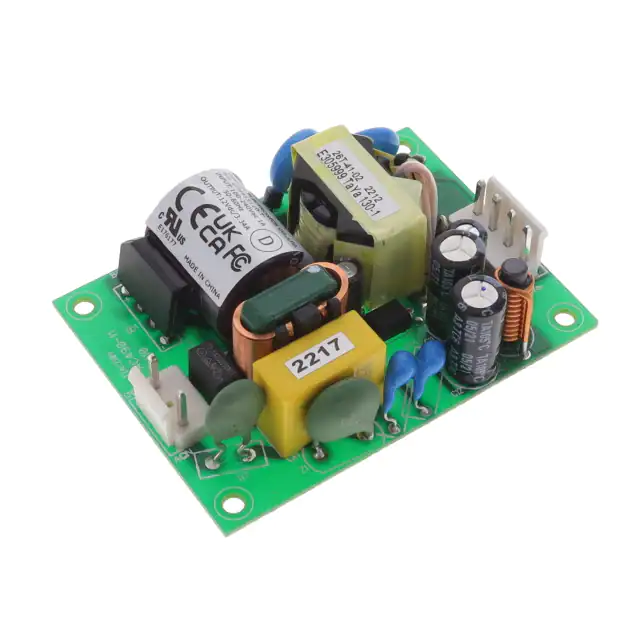

CFM41S120-TAC/DC CONVERTER 12V 40W Cincon Electronics Co. LTD |
287 | - |
|
数据表 |
CFM41S (40W) | Box | Active | Open Frame | 1 | 12V | - | - | 40W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 3.34 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 2.70" L x 2.00" W x 0.78" H (68.6mm x 50.8mm x 19.7mm) |
|
CFM40S090AC/DC CONVERTER 9V 40W Cincon Electronics Co. LTD |
182 | - |
|
数据表 |
CFM40S (40W) | Box | Active | Open Frame | 1 | 9V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 4.45 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
CFM40M090AC/DC CONVERTER 9V 40W Cincon Electronics Co. LTD |
138 | - |
|
数据表 |
CFM40M (40W) | Box | Active | Open Frame | 1 | 9V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 4.45 A | - | - | ITE (Commercial), Medical | - | - | - | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
