交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600SL-3201-DK000AC/DC CONVERTER 24V 12V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 12V | 5V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NPS63-MAC/DC CONVERTER 12V 60W |
177 | - |
|
数据表 |
NPS60-M (60W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 21.8mm) | ||
|
NEVO+600SL-2033-DK000AC/DC CONVERTER 12V 2X24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 12V | 24V | 24V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 7.5 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
FCB100US24AC/DC CONVERTER 24V 84W |
265 | - |
|
数据表 |
FCB100 (100W) | Tray | Active | Open Frame | 1 | 24V | - | - | 84W (101W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
LFMWLT60-1002AC/DC CONVERTER 15V 65W |
138 | - |
|
数据表 |
MWLT60 (60W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 4.33 A | - | - | Medical | - | - | - | 5.7 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
|
NEVO+600S-1404-DK000AC/DC CONVERTER 5V 2X48V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 48V | 48V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 3.75 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
EPP-150-48AC/DC CONVERTER 48V 101W |
1,202 | - |
|
数据表 |
EPP-150 (150W) | Box | Active | Open Frame | 1 | 48V | - | - | 101W (150W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
EPP-150-15AC/DC CONVERTER 15V 101W |
157 | - |
|
数据表 |
EPP-150 (150W) | Box | Active | Open Frame | 1 | 15V | - | - | 101W (150W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|

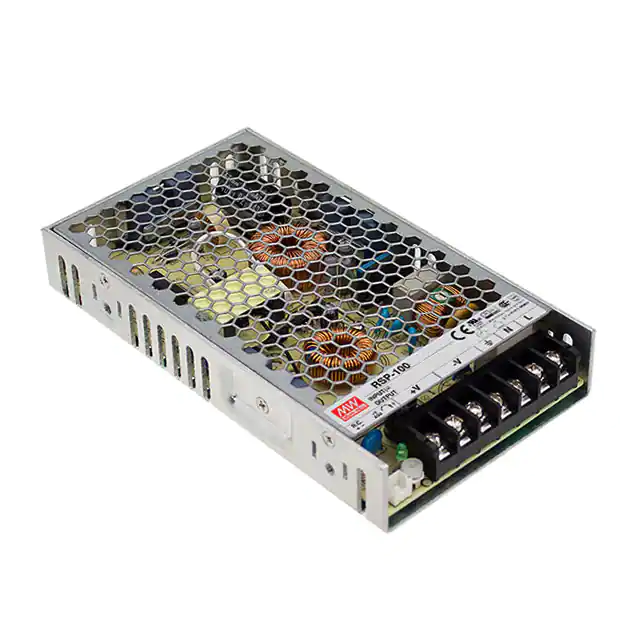

RSP-100-5AC/DC CONVERTER 5V 100W |
127 | - |
|
数据表 |
RSP-100 (100W) | Box | Active | Enclosed | 1 | 5V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
LM350-22B54R2-CQAC/DC CONVERTER 54V 351W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 54V | - | - | 351W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
PLA50F-12AC/DC CONVERTER 12V 50W |
109 | - |
|
数据表 |
PLA (50W) | Box | Last Time Buy | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | ||
|
LM350-22B36R2-CQAC/DC CONVERTER 36V 349W |
1 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 36V | - | - | 349W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 9.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|

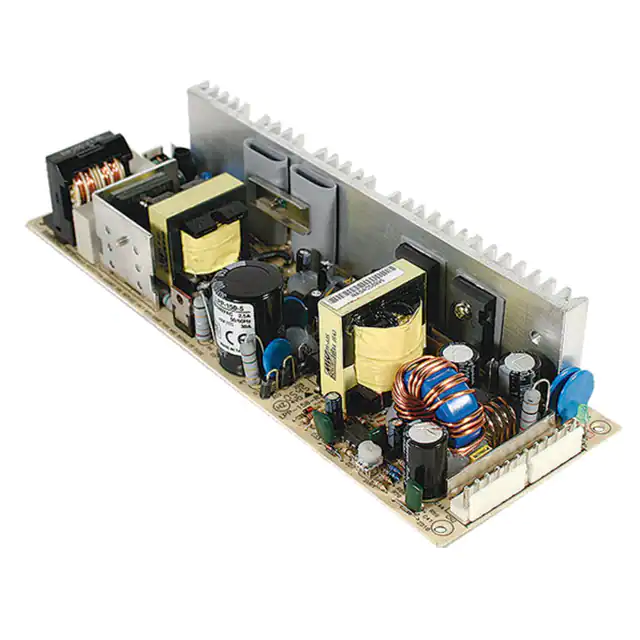

LPP-150-24AC/DC CONVERTER 24V 151W |
200 | - |
|
数据表 |
LPP-150 (150W) | Box | Active | Open Frame | 1 | 24V | - | - | 151W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.61" H (222.0mm x 75.0mm x 41.0mm) | ||
|
NEVO+600S-5410-DK000AC/DC CNVRTR 2X12V 48V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 48V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 3.75 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
LPP-150-15AC/DC CONVERTER 15V 150W |
121 | - |
|
数据表 |
LPP-150 (150W) | Box | Active | Open Frame | 1 | 15V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.61" H (222.0mm x 75.0mm x 41.0mm) | ||
|
NEVO+600S-0224-DK000AC/DC CONVERTER 2X12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
MTB080012AAC/DC CONVERTER 12V 80W |
248 | - |
|
数据表 |
MTB080 (65-100W) | Box | Active | Open Frame | 1 | 12V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 6.7 A | - | - | Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | ||
|
NEVO+600S-0241-DK000AC/DC CONVERTER 12V 48V 5V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 48V | 5V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 3.75 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
RID-65BAC/DC CONVERTER 5V 24V 68W |
0 | - |
|
数据表 |
RID-65 (65W) | Box | Active | Enclosed | 2 | 5V | 24V | - | 68W | - | - | 88 ~ 264 VAC, 125 ~ 373 VDC | - | 4 A | - | 2 A | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) | ||
|
GECA20-24GAC/DC CONVERTER 24V 20W |
0 | - |
|
数据表 |
GECA20 (20W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 20W | - | - | 90 ~ 264 VAC | - | 840 mA | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.85" H (89.1mm x 51.0mm x 21.6mm) |
