交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMT-5V35W1AGAC/DC CONVERTER 5V 35W |
0 | - |
|
数据表 |
PMT (35W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 35W | - | - | 85 ~ 264 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) | ||
|
|
PJ-12V30WBNAAC/DC CONVERTER 12V 30W |
0 | - |
|
数据表 |
PJ (30W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 1.01" H (105.0mm x 50.0mm x 25.6mm) | ||
|
|
PJ-24V30WBNAAC/DC CONVERTER 24V 30W |
0 | - |
|
数据表 |
PJ (30W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 24V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 1.01" H (105.0mm x 50.0mm x 25.6mm) | ||
|
VGS-150C-24-BAC/DC CONVERTER 24V 156W |
0 | - |
|
数据表 |
VGS-150C | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 156W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|

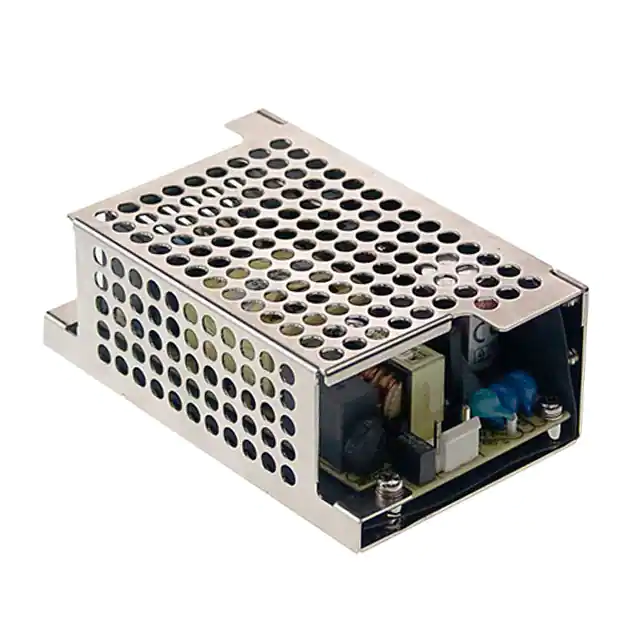

PSC-60B-CAC/DC CONVERTER 27.6V 27.6V 59W |
0 | - |
|
数据表 |
PSC-60 (60W) | Box | Active | Enclosed | 2 | 27.6V | 27.6V | - | 59W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 1.4 A | - | 750 mA | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
LFA10F-5-J1AC/DC CONVERTER 5V |
0 | - |
|
数据表 |
LFA (10W) | Box | Active | Open Frame | 1 | 5V | - | - | - | - | - | 85 ~ 264 VAC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 2.89" L x 1.97" W x 0.87" H (73.4mm x 50.0mm x 22.1mm) | ||
|
VGS-100W-5AC/DC CONVERTER 5V 90W |
0 | - |
|
数据表 |
VGS-100W (100W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 90W | - | - | 85 ~ 305 VAC, 120 ~ 431 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
AMES100-12S277NZAC/DC CONVERTER 12V 102W |
2 | - |
|
数据表 |
AMES100-277NZ (102W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
KPSB25-15-JAC/DC CONVERTER 15V 25W |
0 | - |
|
数据表 |
KPSB25-25 (25W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 1.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) | ||
|
KPSB25-36-JAC/DC CONVERTER 36V 25W |
0 | - |
|
数据表 |
KPSB25-25 (25W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 700 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) | ||
|
KPSB25-24-JAC/DC CONVERTER 24V 25W |
0 | - |
|
数据表 |
KPSB25-25 (25W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 1.05 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) | ||
|
KPSB25-48-JAC/DC CONVERTER 48V 25W |
0 | - |
|
数据表 |
KPSB25-25 (25W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 520 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) | ||
|
VGS-150C-24-AAC/DC CONVERTER 24V 156W |
0 | - |
|
数据表 |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 156W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
VGS-150W-24AC/DC CONVERTER 24V 156W |
0 | - |
|
数据表 |
VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 156W | - | - | 85 ~ 305 VAC, 120 ~ 431 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LM350-22B48R2-CQAC/DC CONVERTER 48V 350W |
5 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 350W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 7.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
LM350-22B15R2-CQAC/DC CONVERTER 15V 350W |
5 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 350W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 23.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
LM350-22B12R2-CQAC/DC CONVERTER 12V 348W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 348W | - | - | 176 ~ 264 VAC, 240 ~ 370 VDC | - | 29 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
NMP1K2-CC#H#K-00AC/DC CNVRTR 2X5V 24V 48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CC#HC#-00AC/DC CONVERTER 2X5V 24V 5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-CC#HE#-00AC/DC CNVRTR 2X5V 24V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
