交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EPS-45S-24AC/DC CONVERTER 24V 46W |
8,239 | - |
|
数据表 |
EPS-45S (45W) | Box | Active | Open Frame | 1 | 24V | - | - | 46W | - | - | 80 ~ 264 VAC | - | 1.9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) | ||
|
NEVO+600S-4501-DK000AC/DC CNVRTR 48V 2X12V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
PMC-24V050W1AAAC/DC CONVERTER 24V 50W |
0 | - |
|
数据表 |
PMC (50W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) | ||
|

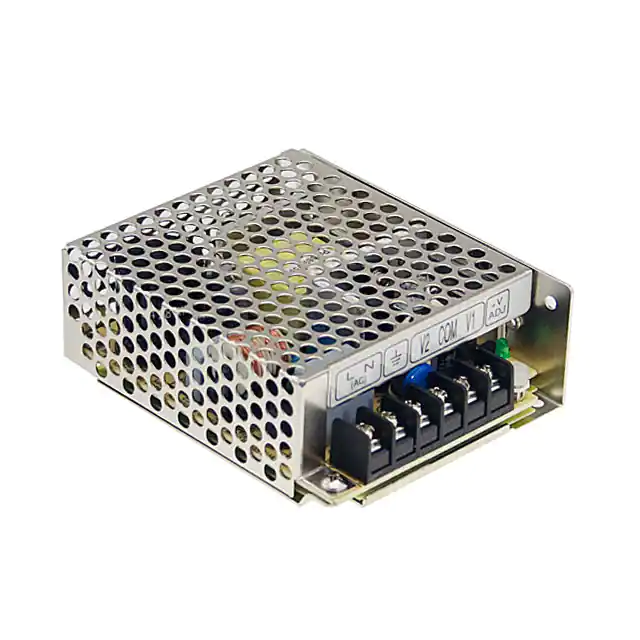

RS-35-24AC/DC CONVERTER 24V 36W |
2,283 | - |
|
数据表 |
RS-35 (35W) | Box | Active | Enclosed | 1 | 24V | - | - | 36W | - | - | 88 ~ 264 VAC, 125 ~ 373 VDC | - | 1.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) | ||
|
NEVO+600S-4205-DK000AC/DC CONVERTER 48V 3X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 300W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 15 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
AMES200-48SNZ-PAC/DC CONVERTER 48V 211W |
0 | - |
|
数据表 |
AMES200-NZ | Active | Enclosed | 1 | 43.2 ~ 52.8V | - | - | 211.2W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 4.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | |||
|
AMES200-12SNZ-PAC/DC CONVERTER 12V 204W |
0 | - |
|
数据表 |
AMES200-NZ | Active | Enclosed | 1 | 10.2 ~ 13.8V | - | - | 204W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | |||
|
EPS-25-5AC/DC CONVERTER 5V 25W |
125 | - |
|
数据表 |
EPS-25 (25W) | Box | Active | Open Frame | 1 | 5V | - | - | 25W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) | ||
|
NEVO+600S-0214-DK000AC/DC CONVERTER 12V 5V 48V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 5V | 48V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 25 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
AMES200-36SNZ-PAC/DC CONVERTER 36V 212W |
0 | - |
|
数据表 |
AMES200-NZ | Active | Enclosed | 1 | 32.4 ~ 39.6V | - | - | 212.4W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 5.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | |||
|
RPS-60-5AC/DC CONVERTER 5V 50W |
939 | - |
|
数据表 |
RPS-60 (60W) | Box | Active | Open Frame | 1 | 5V | - | - | 50W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
NEVO+600S-0533-DK000AC/DC CONVERTER 2X12V 2X24V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 24V | 450W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 7.5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
VOF-S25C-12AC/DC CONVERTER 12V 25W |
0 | - |
|
数据表 |
VOF-S25C (25W) | Box | Active | Open Frame | 1 | 12V | - | - | 25W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.77" H (70.5mm x 27.9mm x 19.5mm) | ||
|
NEVO+600SL-2034-DK000AC/DC CONVERTER 12V 24V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 12V | 24V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 7.5 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
FSP065-P24-A19AC/DC CONVERTER 19V 65W |
452 | - |
|
数据表 |
FSP065-P24 A (65W) | Box | Active | Open Frame | 1 | 19V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 3.42 A | - | - | ITE (Commercial) | - | - | - | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) | ||
|
VOF-S25C-48AC/DC CONVERTER 48V 25W |
0 | - |
|
数据表 |
VOF-S25C (25W) | Box | Active | Open Frame | 1 | 48V | - | - | 25W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 520 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.77" H (70.5mm x 27.9mm x 19.5mm) | ||
|
VOF-S25C-24AC/DC CONVERTER 24V 25W |
0 | - |
|
数据表 |
VOF-S25C (25W) | Box | Active | Open Frame | 1 | 24V | - | - | 25W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 1.05 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.77" H (70.5mm x 27.9mm x 19.5mm) | ||
|
EPS-65-5AC/DC CONVERTER 5V 55W |
380 | - |
|
数据表 |
EPS-65 (65W) | Box | Active | Open Frame | 1 | 5V | - | - | 55W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 11 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
VOF-S25C-36AC/DC CONVERTER 36V 25W |
0 | - |
|
数据表 |
VOF-S25C (25W) | Box | Active | Open Frame | 1 | 36V | - | - | 25W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 700 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.77" H (70.5mm x 27.9mm x 19.5mm) | ||
|
FSP065-P24-A12AC/DC CONVERTER 12V 65W |
150 | - |
|
数据表 |
FSP065-P24 A (65W) | Box | Active | Open Frame | 1 | 12V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 5.4 A | - | - | ITE (Commercial) | - | - | - | 500 V | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
