交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600S-0511-DK000AC/DC CONVERTER 2X12V 2X5V 400W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 400W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-2103-DK000AC/DC CONVERTER 12V 5V 24V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 5V | 24V | 275W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 25 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
RFE2500-48AC/DC CONVERTER 48V 2500W |
70 | - |
|
数据表 |
RFE2500 (2500W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 2500W | - | - | 85 ~ 265 VAC | - | 52 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 13.54" L x 4.21" W x 1.60" H (344.0mm x 107.0mm x 40.8mm) | ||
|
NEVO+600SL-1140-DK000AC/DC CONVERTER 2X5V 48V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 5V | 48V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
RFE2500-24AC/DC CONVERTER 24V 2500W |
26 | - |
|
数据表 |
RFE2500 (2500W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 2500W | - | - | 85 ~ 265 VAC | - | 96 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 13.54" L x 4.21" W x 1.60" H (344.0mm x 107.0mm x 40.8mm) | ||
|
NEVO+600S-5110-DK000AC/DC CONVERTER 2X12V 2X5V 250W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 250W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|

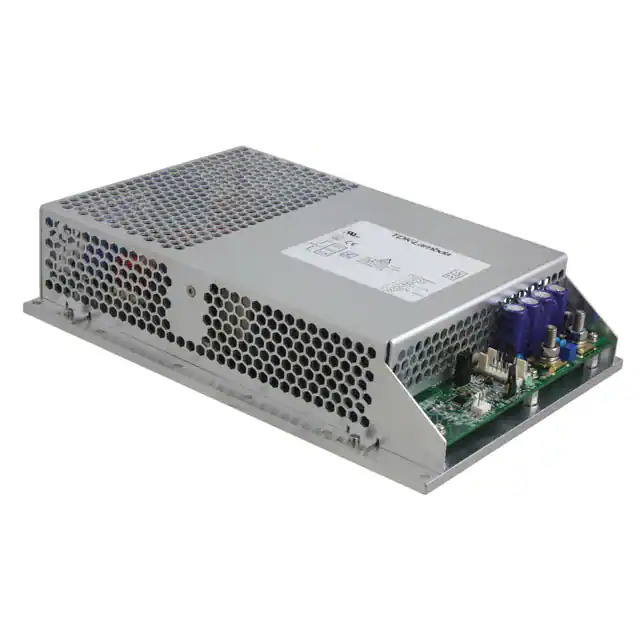

CPFE1000F-28AC/DC CONVERTER 28V 720W |
27 | - |
|
数据表 |
CPFE1000F (720-1000W) | Bulk | Active | Enclosed | 1 | 28V | - | - | 720W | - | - | 90 ~ 265 VAC | - | 36 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.63" L x 7.48" W x 2.40" H (270.0mm x 190.0mm x 61.0mm) | ||
|
RST-5000-48AC/DC CONVERTER 48V 5040W |
105 | - |
|
数据表 |
RST-5000 (5000W) | Box | Active | Enclosed | 1 | 48V | - | - | 5040W | - | - | 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase) | - | 105 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense | Chassis Mount | 18.90" L x 8.31" W x 3.29" H (480.0mm x 211.0mm x 83.5mm) | ||
|
NEVO+600S-2054-DK000AC/DC CONVERTER 3X12V 48V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 300W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 5 A | ITE (Commercial) | - | 5 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-0241-DK000AC/DC CONVERTER 12V 48V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 12V | 48V | 5V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 3.75 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C#KCH#-00AC/DC CNVRTR 5V 48V 5V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KCK#-00AC/DC CNVRTR 5V 48V 5V 48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KE#C-00AC/DC CNVRTR 5V 48V 12V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KE#E-00AC/DC CNVRTR 5V 48V 2X12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KE#H-00AC/DC CNVRTR 5V 48V 12V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KE#K-00AC/DC CNVRTR 5V 48V 12V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KEC#-00AC/DC CNVRTR 5V 48V 12V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KEE#-00AC/DC CNVRTR 5V 48V 2X12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KEH#-00AC/DC CNVRTR 5V 48V 12V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C#KEK#-00AC/DC CNVRTR 5V 48V 12V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
