交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM100-23B54R2-CQAC/DC CONVERTER 54V 103W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 54V | - | - | 103W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 1.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
NMP1K2-#K#HHC-00AC/DC CNVRTR 48V 2X24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#K#HHE-00AC/DC CNVRTR 48V 2X24V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 24V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#K#HHH-00AC/DC CONVERTER 48V 3X24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 24V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#K#HHK-00AC/DC CNVRTR 48V 2X24V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 24V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#K#HKC-00AC/DC CNVRTR 48V 24V 48V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
LM100-23B12R2-CQAC/DC CONVERTER 12V 102W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 102W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B24R2-CQAC/DC CONVERTER 24V 108W |
3 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 108W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 4.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B05R2-CQAC/DC CONVERTER 5V 90W |
2 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 90W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
PSK-3D-12-TAC/DC CONVERTER 12V 3W |
0 | - |
|
数据表 |
PSK-3D (3W) | Tray | Not For New Designs | Enclosed | 1 | 12V | - | - | 3W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 250 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) | ||
|
AMES75-12S277NZ-QAC/DC CONVERTER 12V 72W |
4 | - |
|
数据表 |
AMES75-277NZ (72W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
AMES75-48S277NZ-PAC/DC CONVERTER 48V 77W |
4 | - |
|
数据表 |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 77W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
AMES75-5S277NZAC/DC CONVERTER 5V 70W |
4 | - |
|
数据表 |
AMES75-277NZ (70W) | Box | Obsolete | Enclosed | 1 | 5V | - | - | 70W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
AMES75-15S277NZ-QAC/DC CONVERTER 15V 75W |
4 | - |
|
数据表 |
AMES75-277NZ (75W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 15V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600S-5032-DK000AC/DC CNVRTR 2X12V 24V 12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 24V | 300W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 7.5 A | 15 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-4401-DK000AC/DC CONVERTER 2X48V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 48V | 48V | 5V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|

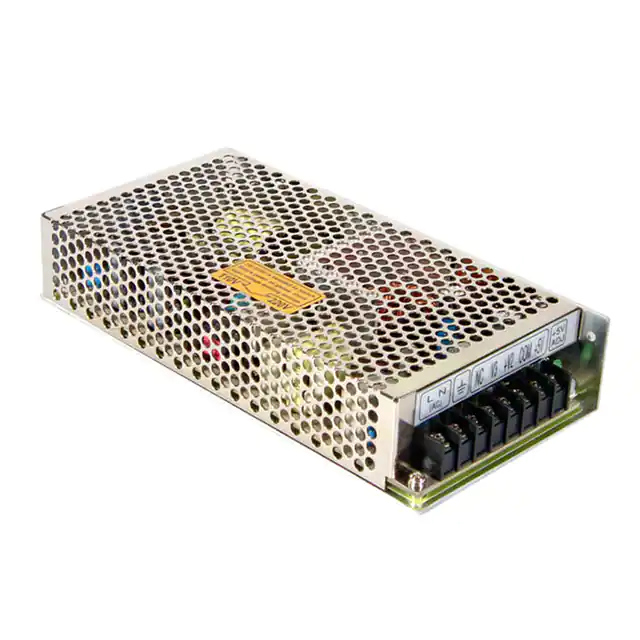

RD-125-1224AC/DC CONVERTER 12V 24V 133W |
656 | - |
|
数据表 |
RD-125 (125W) | Box | Active | Enclosed | 2 | 12V | 24V | - | 133W | - | - | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | - | 3.7 A | - | 3.7 A | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
RD-125AAC/DC CONVERTER 5V 12V 131W |
558 | - |
|
数据表 |
RD-125 (125W) | Box | Active | Enclosed | 2 | 5V | 12V | - | 131W | - | - | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | - | 7.7 A | - | 7.7 A | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
LRS-350-24AC/DC CONVERTER 24V 350W |
915 | - |
|
数据表 |
LRS-350 (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 14.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

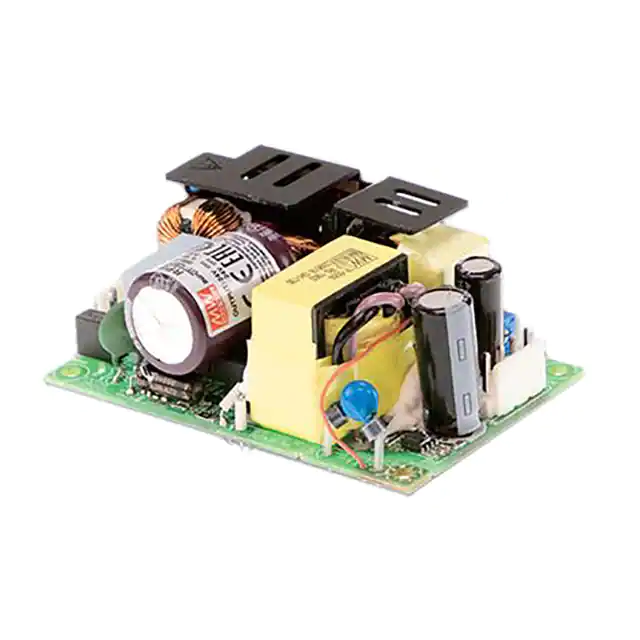

RPS-120S-24AC/DC CONVERTER 24V 120W |
407 | - |
|
数据表 |
RPS-120S (120W) | Box | Active | Open Frame | 1 | 24V | - | - | 120W (150W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 5 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) |
