交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

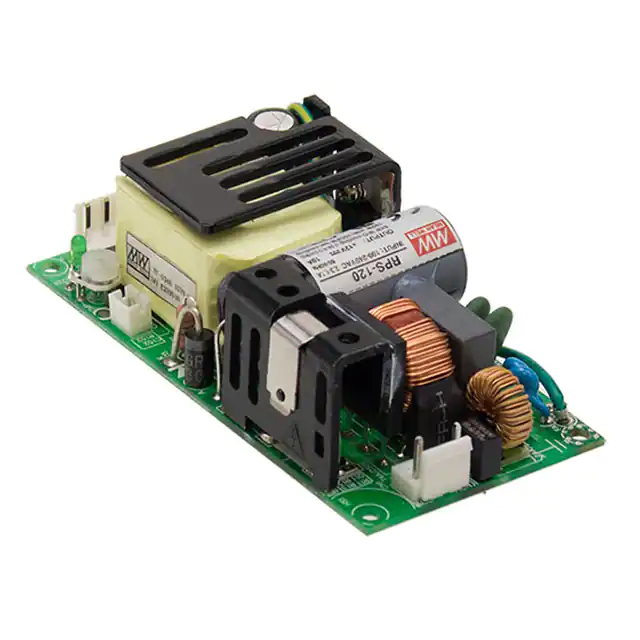

RPS-120-12AC/DC CONVERTER 12V 84W |
717 | - |
|
数据表 |
RPS-120 (120W) | Box | Active | Open Frame | 1 | 12V | - | - | 84W (120W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 7 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|

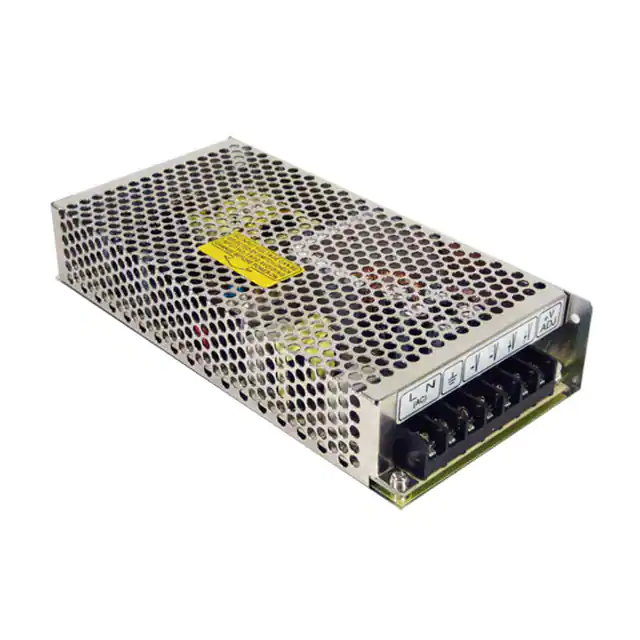

RS-150-24AC/DC CONVERTER 24V 156W |
2,037 | - |
|
数据表 |
RS-150 (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 156W | - | - | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | - | 6.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|

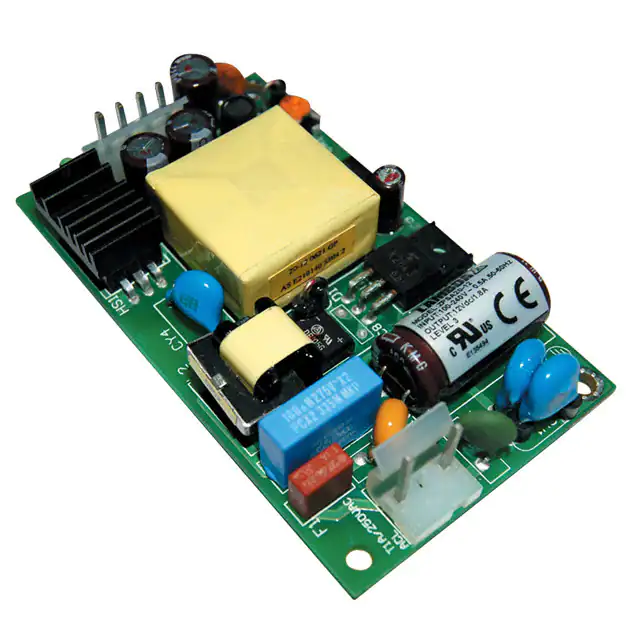

ZPSA20-24AC/DC CONVERTER 24V 20W |
117 | - |
|
数据表 |
ZPSA20 (14-20W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 20W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 920 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm) | ||
|
NEVO+600S-3203-DK000AC/DC CONVERTER 24V 12V 24V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 12V | 24V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#K#EHH-00AC/DC CNVRTR 48V 12V 2X24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NEVO+600S-3220-DK000AC/DC CONVERTER 24V 2X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 12V | 12V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600S-0443-DK000AC/DC CONVERTER 2X48V 24V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 48V | 48V | 24V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NMP1K2-#K#EHK-00AC/DC CNVRT 48V 12V 24V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-#K#EKC-00AC/DC CNVRTR 48V 12V 48V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 48V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-#K#EKE-00AC/DC CNVRT 48V 12V 48V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 48V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-3204-DK000AC/DC CONVERTER 24V 12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600S-5330-DK000AC/DC CONVERTER 2X12V 2X24V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 24V | 300W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 7.5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
CFM60S240AC/DC CONVERTER 24V 60W |
2,041 | - |
|
数据表 |
CFM60S (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|

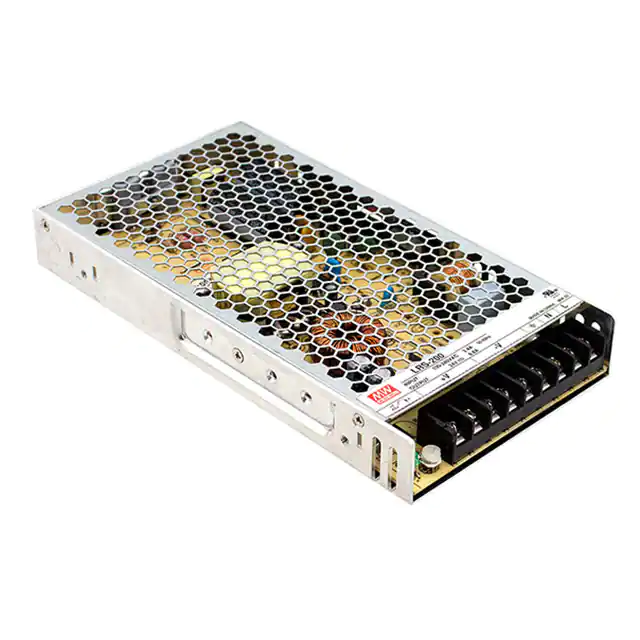

LRS-200-12AC/DC CONVERTER 12V 204W |
693 | - |
|
数据表 |
LRS-200 (200W) | Box | Active | Enclosed | 1 | 12V | - | - | 204W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 17 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

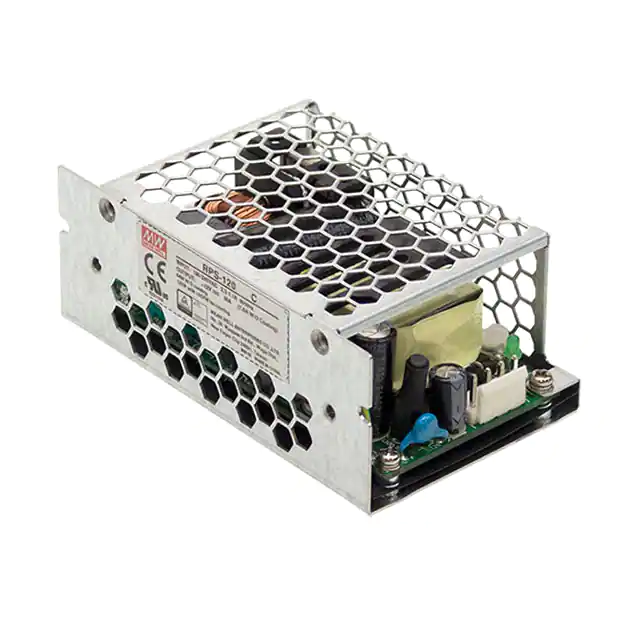

RPS-120-24-CAC/DC CONVERTER 24V 84W |
433 | - |
|
数据表 |
RPS-120 (120W) | Box | Active | Enclosed | 1 | 24V | - | - | 84W (120W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 3.5 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.07" L x 2.44" W x 1.57" H (103.4mm x 62.0mm x 39.9mm) | ||
|
|
CFM60S120AC/DC CONVERTER 12V 60W |
381 | - |
|
数据表 |
CFM60S (60W) | Box | Active | Open Frame | 1 | 12V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
|
RPS-120-12-CAC/DC CONVERTER 12V 84W |
286 | - |
|
数据表 |
RPS-120 (120W) | Box | Active | Enclosed | 1 | 12V | - | - | 84W (120W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 7 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.07" L x 2.44" W x 1.57" H (103.4mm x 62.0mm x 39.9mm) | ||
|
|
CFM60S150AC/DC CONVERTER 15V 60W |
221 | - |
|
数据表 |
CFM60S (60W) | Box | Active | Open Frame | 1 | 15V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|

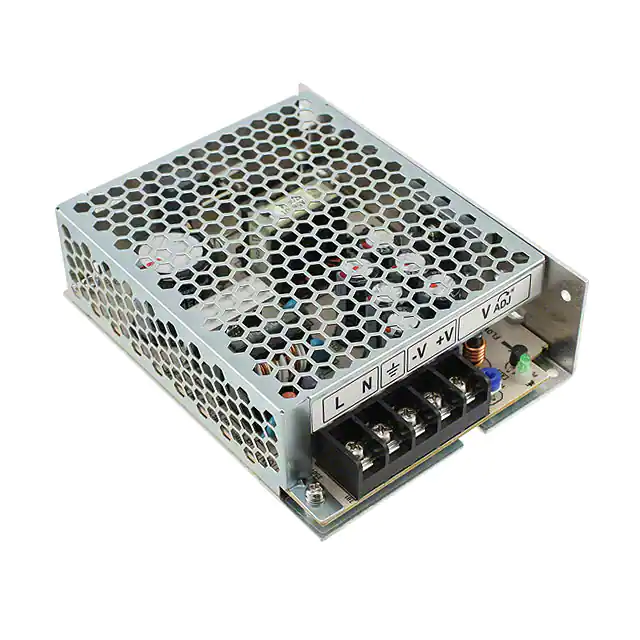

LS75-12AC/DC CONVERTER 12V 75W |
267 | - |
|
数据表 |
LS (75W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 75W | - | - | 88 ~ 264 VAC | - | 6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm) | ||
|
|
NEVO+600S-5013-DK000AC/DC CNVRTR 2X12V 5V 24V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 275W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
