| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCL300PS24AC/DC CONVERTER 24V 300W XP Power |
0 | - |
|
数据表 |
LCL (300W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 300W | - | - | 85 ~ 264 VAC, 127 ~ 370 VDC | - | 13 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.07" L x 4.33" W x 1.97" H (205.0mm x 110.0mm x 50.0mm) |
|
LCL300PS48AC/DC CONVERTER 48V 300W XP Power |
0 | - |
|
数据表 |
LCL (300W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 300W | - | - | 85 ~ 264 VAC, 127 ~ 370 VDC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.07" L x 4.33" W x 1.97" H (205.0mm x 110.0mm x 50.0mm) |
|
LCL500PS15AC/DC CONVERTER 15V 500W XP Power |
0 | - |
|
数据表 |
LCL (500W) | Box | Obsolete | Enclosed | 1 | 15V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 34 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
|
LCL500PS24AC/DC CONVERTER 24V 500W XP Power |
0 | - |
|
数据表 |
LCL (500W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 21 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
|

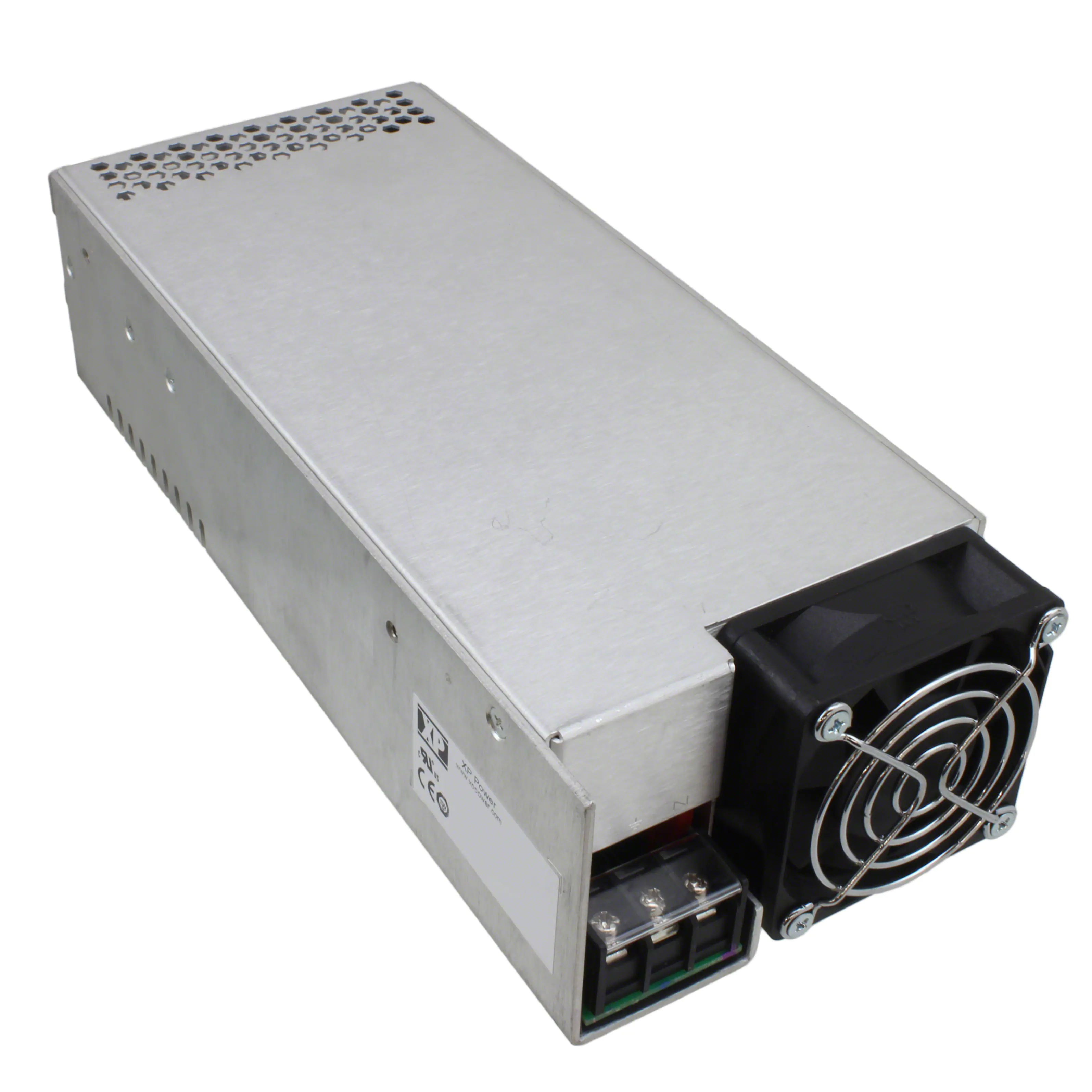

HHP650PS12AC/DC CONVERTER 12V 607W XP Power |
0 | - |
|
数据表 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 12V | - | - | 607W | - | - | 85 ~ 305 VAC | - | 50 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
|
HHP650PS15AC/DC CONVERTER 15V 607W XP Power |
0 | - |
|
数据表 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 15V | - | - | 607W | - | - | 85 ~ 305 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
|
HHP650PS24AC/DC CONVERTER 24V 657W XP Power |
0 | - |
|
数据表 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 24V | - | - | 657W | - | - | 85 ~ 305 VAC | - | 27 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
|
HHP650PS28AC/DC CONVERTER 28V 651W XP Power |
0 | - |
|
数据表 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 28V | - | - | 651W | - | - | 85 ~ 305 VAC | - | 23 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
|
HHP650PS48AC/DC CONVERTER 48V 657W XP Power |
0 | - |
|
数据表 |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 48V | - | - | 657W | - | - | 85 ~ 305 VAC | - | 13.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
|
GCS250PS12-RAC/DC CONVERTER 12V 180W XP Power |
0 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 12V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
