交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

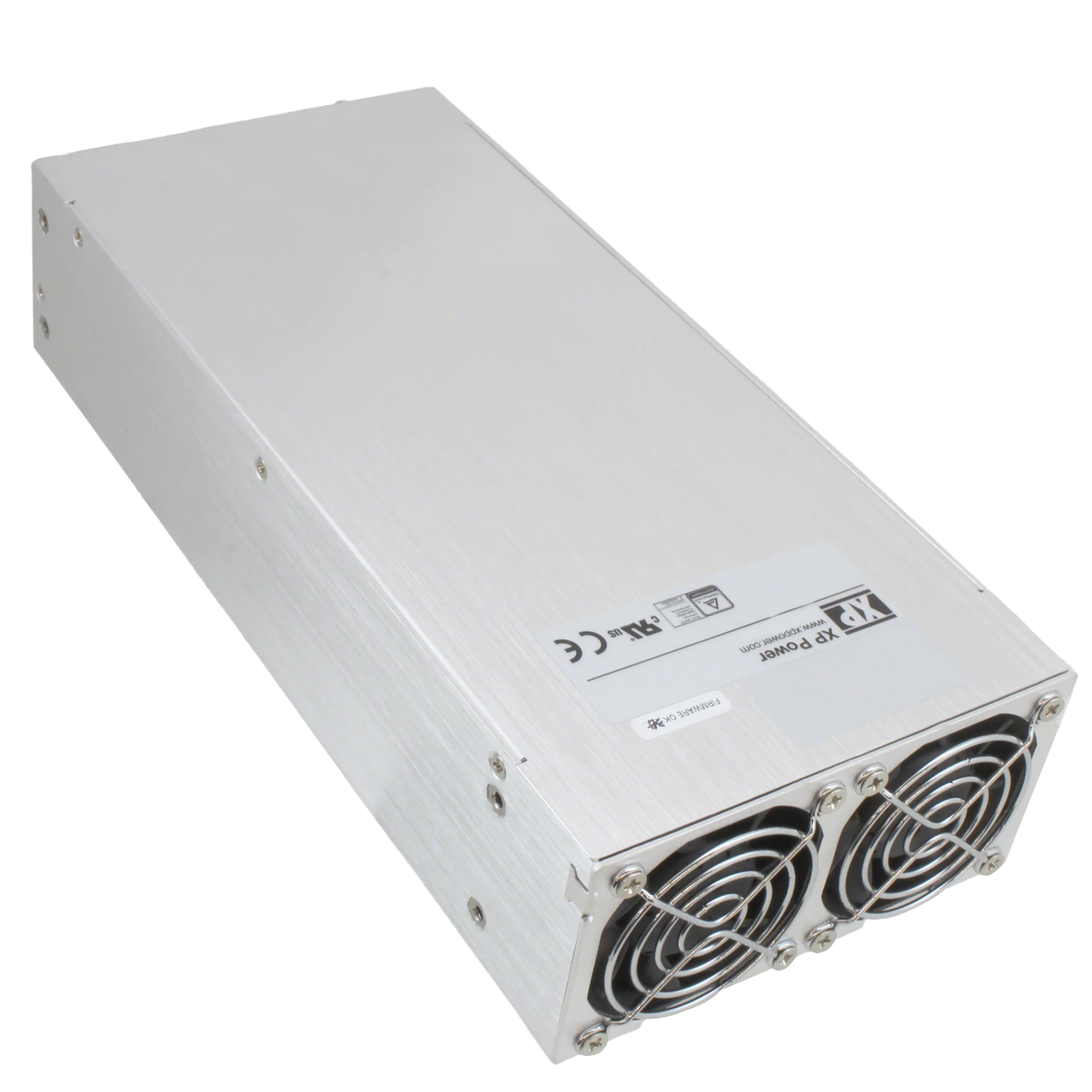

HDS1500PS15AC/DC CONVERTER 15V 1500W XP Power |
0 | - |
|
数据表 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 15V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 100 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
N12-HMMR-00A02AC-DC CONFIGURED NANOFLEX XP Power |
0 | - |
|
数据表 |
nanofleX | Box | Active | Enclosed, Conformal Coated | 1 | 12V | - | - | 250W | - | - | 90 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 11.35" L x 4.20" W x 1.67" H (288.3mm x 106.7mm x 42.4mm) |
|
|
HDS1500PS24AC/DC CONVERTER 24V 1500W XP Power |
0 | - |
|
数据表 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 24V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 62.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
|
HDS1500PS36AC/DC CONVERTER 36V 1500W XP Power |
0 | - |
|
数据表 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 36V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 41.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
HPU1K5PS12AC/DC CONVERTER 12V 1200W XP Power |
0 | - |
|
数据表 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 12V | - | - | 1200W | - | - | 85 ~ 264 VAC | - | 100 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
|
HPU1K5PS12-MAC/DC CONVERTER 12V 1200W XP Power |
0 | - |
|
数据表 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 12V | - | - | 1200W | - | - | 85 ~ 264 VAC | - | 100 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
|
HPU1K5PS24-MAC/DC CONVERTER 24V 1500W XP Power |
0 | - |
|
数据表 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 24V | - | - | 1500W | - | - | 85 ~ 264 VAC | - | 50 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|

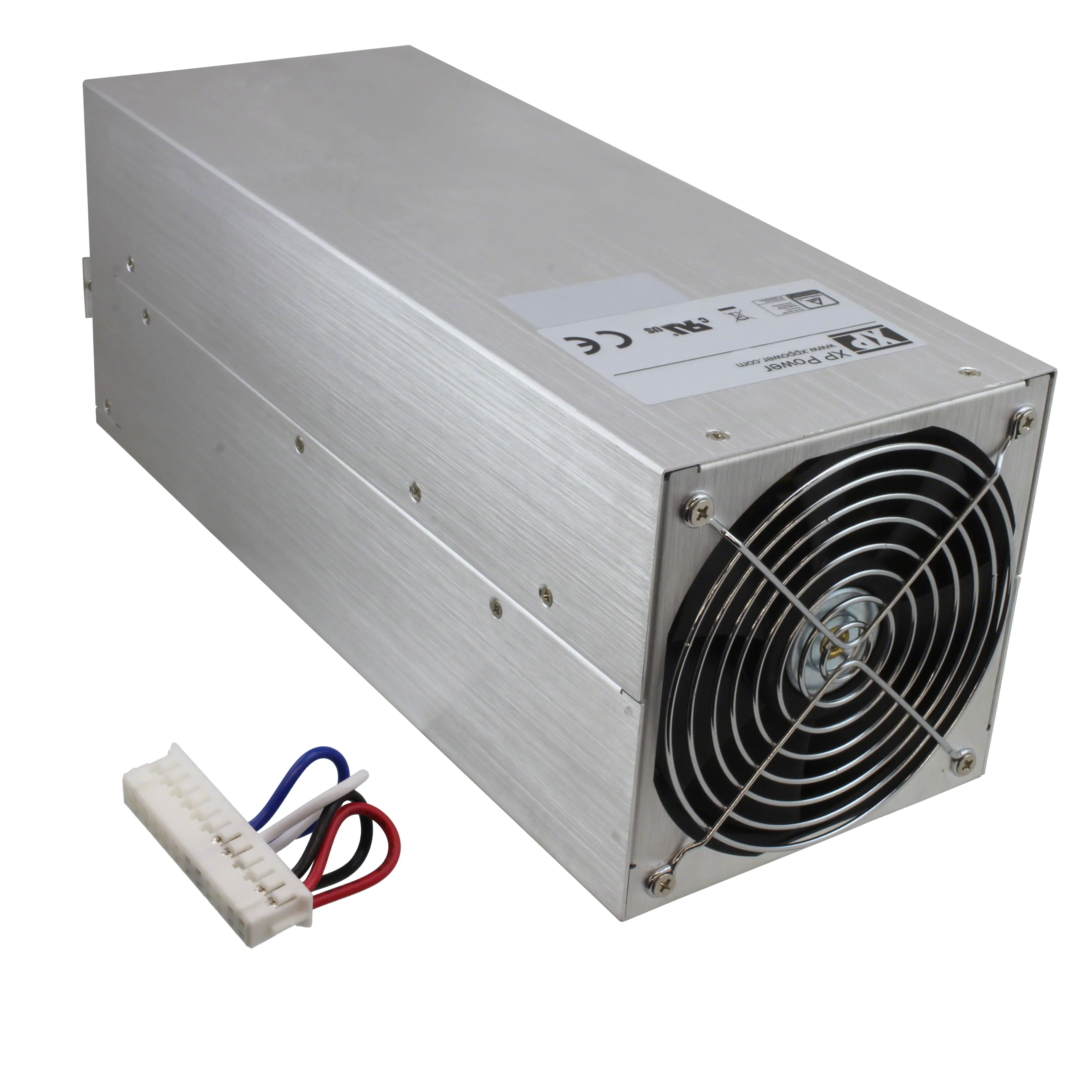

HDS3000PS15AC/DC CONVERTER 15V 3000W XP Power |
0 | - |
|
数据表 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 15V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 200 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
|
|
HDS3000PS36AC/DC CONVERTER 36V 3000W XP Power |
1 | - |
|
数据表 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 36V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 83.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
|
MHP1000PS28AC/DC CONVERTER 28V 1000W XP Power |
0 | - |
|
数据表 |
MHP (1000W) | Box | Active | Enclosed | 1 | 28V | - | - | 1000W | - | - | 85 ~ 264 VAC | - | 36 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
