交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCE80PS20AC/DC CONVERTER 20V 80W XP Power |
0 | - |
|
数据表 |
LCE80 (80W) | Box | Active | Open Frame | 1 | 20V | - | - | 80W | - | - | 90 ~ 305 VAC | - | 4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|

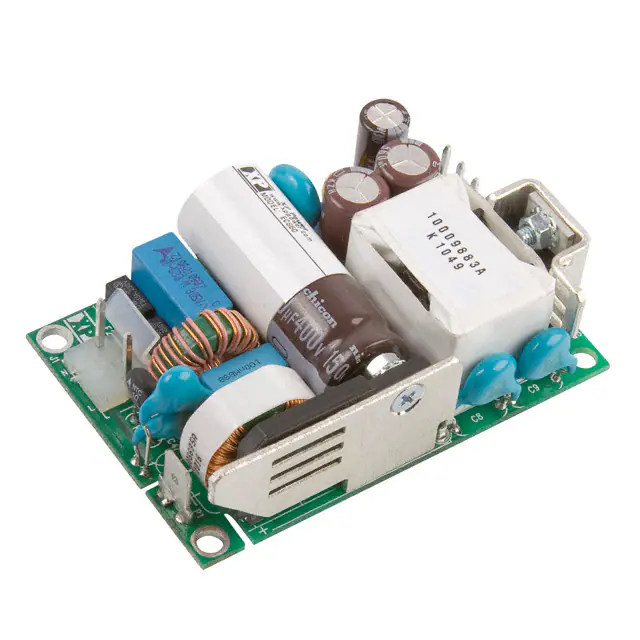

ECS60US05AC/DC CONVERTER 5V 60W XP Power |
1 | - |
|
数据表 |
ECS (45W) | Box | Active | Open Frame | 1 | 5V | - | - | 60W | - | - | 80 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|
ECL30UD03-TAC/DC CONVERTER 5V 12V 30W XP Power |
0 | - |
|
数据表 |
ECL (30W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 30W | - | - | 85 ~ 264 VAC | - | 3 A | - | 1.3 A | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
|
ECL30UT02-TAC/DC CONVERTER 5V +/-12V 30W XP Power |
0 | - |
|
数据表 |
ECL (30W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 30W | - | - | 85 ~ 264 VAC | - | 3 A | - | 630 mA | ITE (Commercial) | - | 630 mA | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
SMH600PD1224-EFAC/DC CONVERTER 12V -24V 600W XP Power |
0 | - |
|
数据表 |
SMH600 (600W) | Box | Obsolete | Enclosed | 2 | 12V | -24V | - | 600W | - | - | 90 ~ 264 VAC | - | 33.33 A | - | 16.67 A | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 1.60" H (228.6mm x 127.0mm x 40.6mm) |
|
ECE60US05-SAC/DC CONVERTER 5V 50W XP Power |
0 | - |
|
数据表 |
ECE60 (60W) | Tray | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
SMP350PS15AC/DC CONVERTER 15V 330W XP Power |
0 | - |
|
数据表 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 15V | - | - | 330W | - | - | 85 ~ 264 VAC | - | 22 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) |
|
ECH450PS19AC/DC CONVERTER 19V 247W XP Power |
1 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 19V | - | - | 247W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 13 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
|

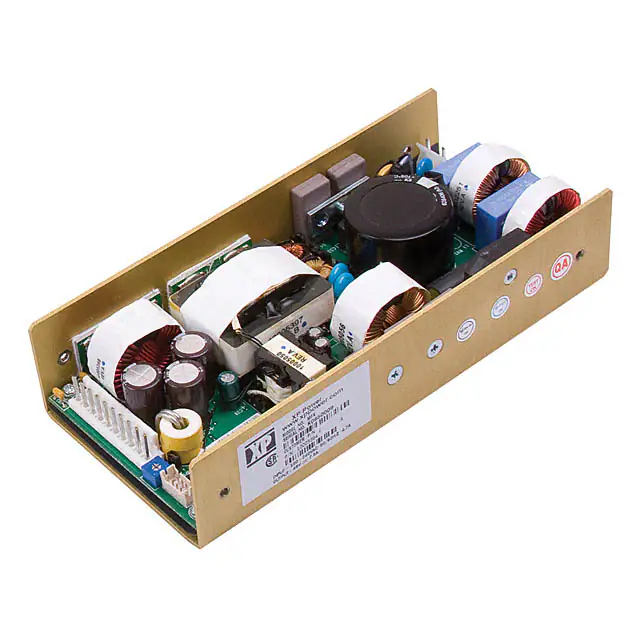

MFA420PS12AC/DC CONVERTER 12V 420W XP Power |
0 | - |
|
数据表 |
MFA (420W) | Box | Active | Open Frame | 1 | 12V | - | - | 420W (434W Forced Air) | - | - | 85 ~ 264 VAC | - | 35 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
|
|
MFA420PS24AC/DC CONVERTER 24V 420W XP Power |
0 | - |
|
数据表 |
MFA (420W) | Box | Active | Open Frame | 1 | 24V | - | - | 420W (434W Forced Air) | - | - | 85 ~ 264 VAC | - | 17.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
