交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

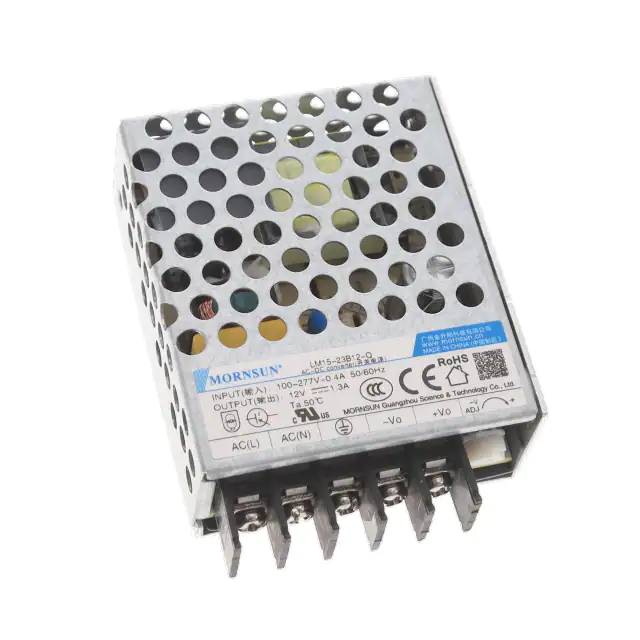

LM15-23B12-QAC/DC CONVERTER 12V 16W Mornsun America, LLC |
30 | - |
|
数据表 |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|

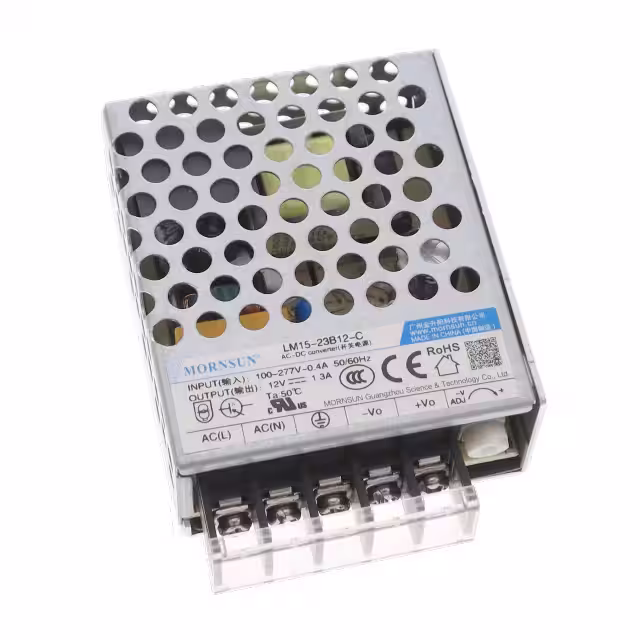

LM15-23B12-CAC/DC CONVERTER 12V 16W Mornsun America, LLC |
22 | - |
|
数据表 |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LO30-23B24EAC/DC CONVERTER 24V 31W Mornsun America, LLC |
33 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 31W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
|
|
LO30-23B12EAC/DC CONVERTER 12V 30W Mornsun America, LLC |
24 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
|
|
LO30-23B15EAC/DC CONVERTER 15V 30W Mornsun America, LLC |
24 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 30W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
|
|
LO30-23B03EAC/DC CONVERTER 3.3V 20W Mornsun America, LLC |
12 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 3.3V | - | - | 20W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 6 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
|
|
LM15-23B03-QAC/DC CONVERTER 3.3V 10W Mornsun America, LLC |
15 | - |
|
数据表 |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 3.3V | - | - | 10W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
LM15-23B15-QAC/DC CONVERTER 15V 15W Mornsun America, LLC |
6 | - |
|
数据表 |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 15W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
LM15-23B15-CAC/DC CONVERTER 15V 15W Mornsun America, LLC |
6 | - |
|
数据表 |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 15W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|

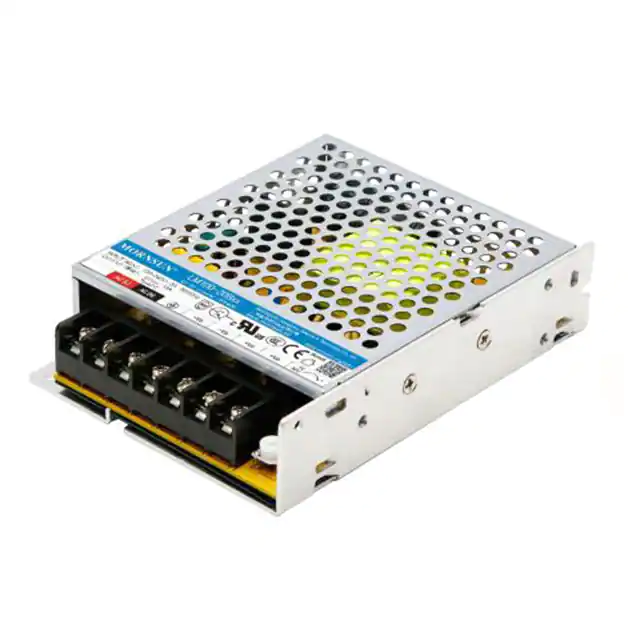

LM35-20B05AC/DC CONVERTER 5V 35W Mornsun America, LLC |
94 | - |
|
数据表 |
LM35-20Bxx (35W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 35W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
