交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM35-20B24-QAC/DC CONVERTER 24V 36W Mornsun America, LLC |
4 | - |
|
数据表 |
LM35-20Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LO30-10B05AC/DC CONVERTER 5V 21W Mornsun America, LLC |
0 | - |
|
数据表 |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 21W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 4.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) |
|
|
LO30-10B12AC/DC CONVERTER 12V 30W Mornsun America, LLC |
0 | - |
|
数据表 |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) |
|
LO65-10B05AC/DC CONVERTER 5V 50W Mornsun America, LLC |
4 | - |
|
数据表 |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
|
LM35-23B12-QAC/DC CONVERTER 12V 36W Mornsun America, LLC |
3 | - |
|
数据表 |
LM35-23Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 36W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

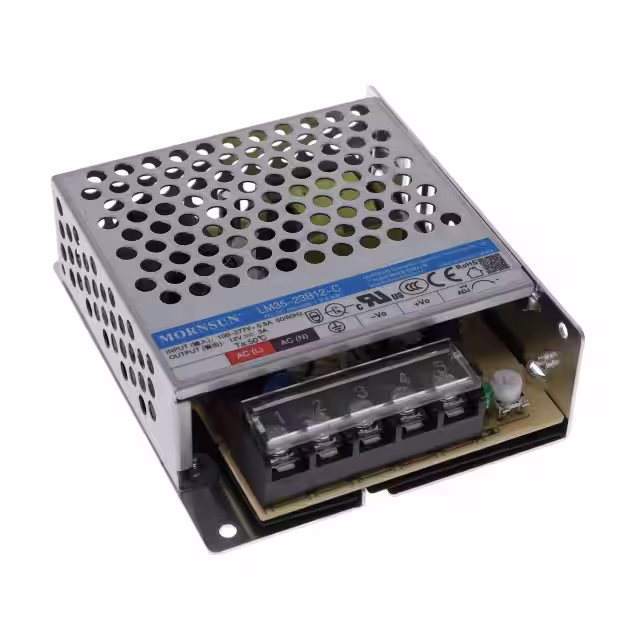

LM35-23B12-CAC/DC CONVERTER 12V 36W Mornsun America, LLC |
3 | - |
|
数据表 |
LM35-23Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 36W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

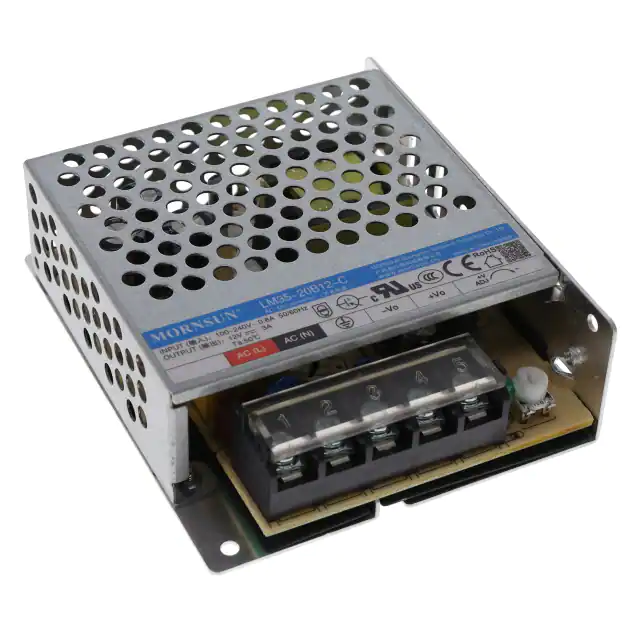

LM35-20B12-CAC/DC CONVERTER 12V 36W Mornsun America, LLC |
0 | - |
|
数据表 |
LM35-20Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LM75-23B15AC/DC CONVERTER 15V 75W Mornsun America, LLC |
1 | - |
|
数据表 |
LM75-23Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM75-20B48AC/DC CONVERTER 48V 77W Mornsun America, LLC |
0 | - |
|
数据表 |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 77W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 1.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM75-23B12AC/DC CONVERTER 12V 72W Mornsun America, LLC |
0 | - |
|
数据表 |
LM75-23Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
