交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO30-10B09AC/DC CONVERTER 9V 30W Mornsun America, LLC |
5 | - |
|
数据表 |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 9V | - | - | 30W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) |
|
LO65-20B12SMUAC/DC CONVERTER 12V 65W Mornsun America, LLC |
0 | - |
|
数据表 |
LO65-20BxxSMU (65W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 65W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 5.42 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|

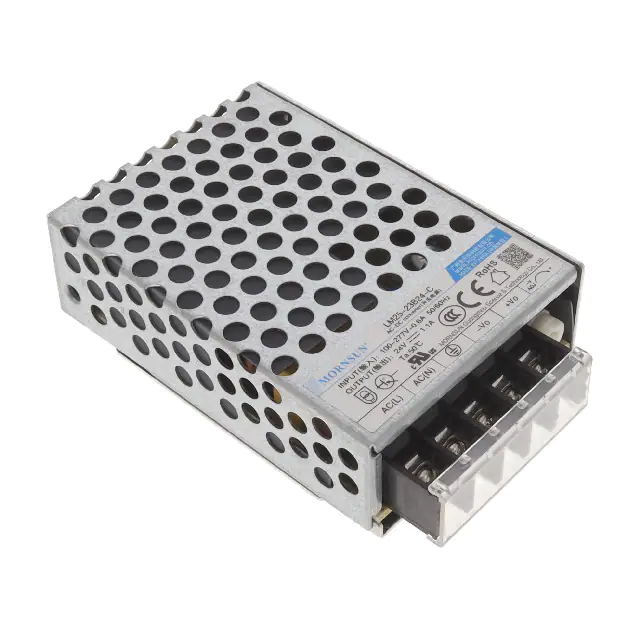

LM25-23B24-CAC/DC CONVERTER 24V 26W Mornsun America, LLC |
0 | - |
|
数据表 |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 26W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|

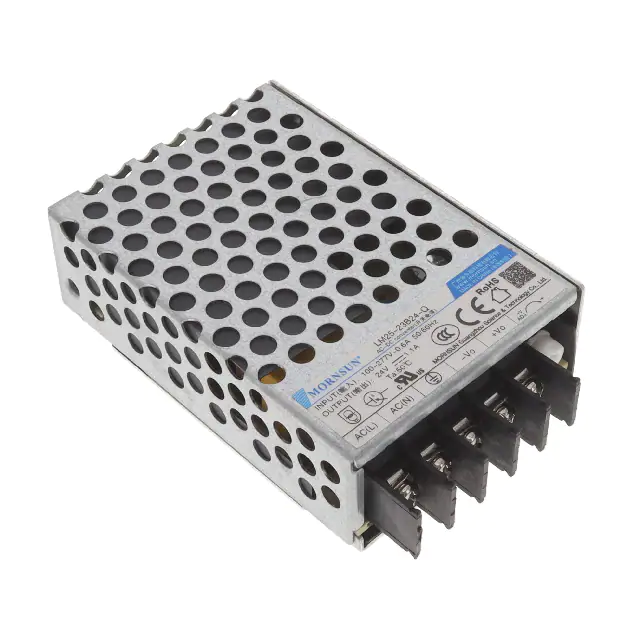

LM25-23B24-QAC/DC CONVERTER 24V 26W Mornsun America, LLC |
0 | - |
|
数据表 |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 26W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|

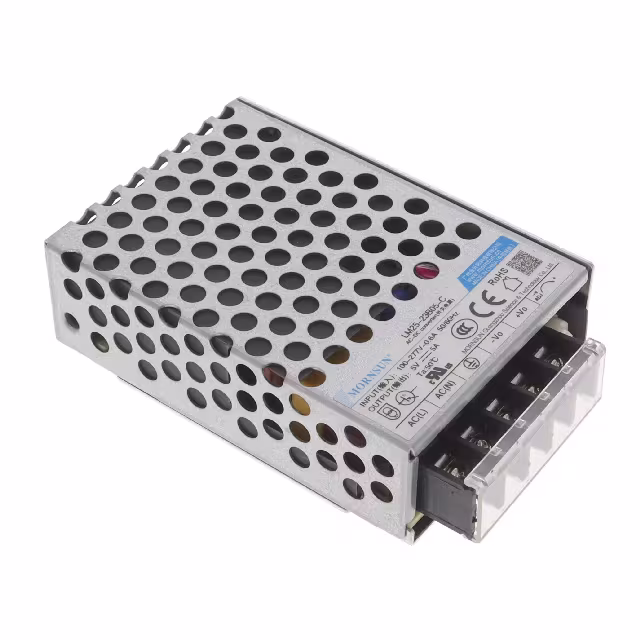

LM25-23B05-CAC/DC CONVERTER 5V 25W Mornsun America, LLC |
0 | - |
|
数据表 |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 25W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
LM25-23B48-CAC/DC CONVERTER 48V 27W Mornsun America, LLC |
1 | - |
|
数据表 |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 27W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 570 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
LM25-23B15-QAC/DC CONVERTER 15V 26W Mornsun America, LLC |
1 | - |
|
数据表 |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 26W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.7 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
LM25-23B48-QAC/DC CONVERTER 48V 27W Mornsun America, LLC |
1 | - |
|
数据表 |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 27W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 570 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
LM25-23B15-CAC/DC CONVERTER 15V 26W Mornsun America, LLC |
1 | - |
|
数据表 |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 26W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.7 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
LO45-10B05AC/DC CONVERTER 5V 40W Mornsun America, LLC |
0 | - |
|
数据表 |
LO45-10Bxx (45W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 40W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
