交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEU65-120AC/DC CONVERTER 12V 65W Triad Magnetics |
34 | - |
|
数据表 |
AEU65 | Box | Active | Enclosed | 1 | 12V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 5.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|
AWSP60-24AC/DC CONVERTER 24V 60W Triad Magnetics |
27 | - |
|
数据表 |
AWSP60 | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
|
|
AWSP60-5AC/DC CONVERTER 5V 60W Triad Magnetics |
10 | - |
|
数据表 |
AWSP60 | Box | Active | Enclosed | 1 | 5V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 12 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
|

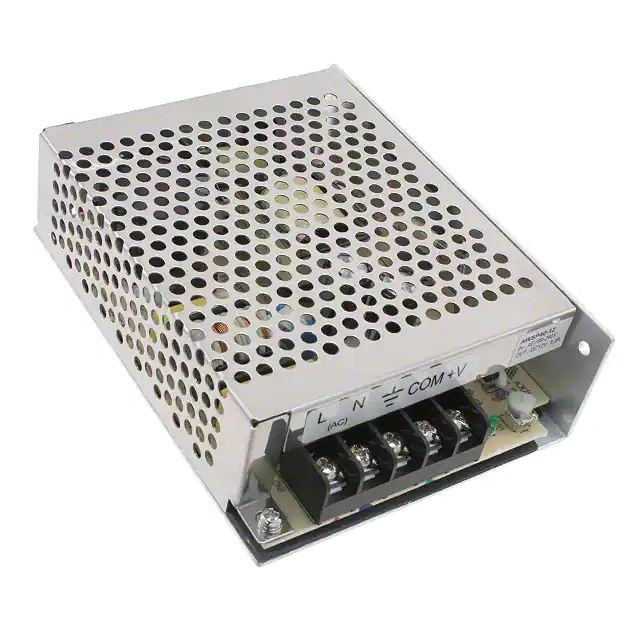

AWSP40-5AC/DC CONVERTER 5V 40W Triad Magnetics |
42 | - |
|
数据表 |
AWSP40 | Box | Active | Enclosed | 1 | 5V | - | - | 40W | - | - | 85 ~ 264 VAC | - | 7.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
|
AWSP40-24AC/DC CONVERTER 24V 40W Triad Magnetics |
15 | - |
|
数据表 |
AWSP40 | Box | Active | Enclosed | 1 | 24V | - | - | 40W | - | - | 85 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

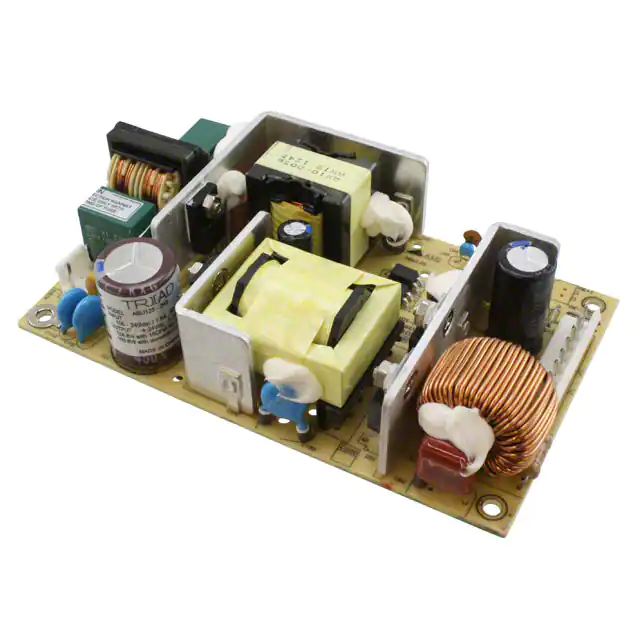

ABU125-240AC/DC CONVERTER 24V 100W Triad Magnetics |
11 | - |
|
数据表 |
ABU125 | Box | Active | Open Frame | 1 | 24V | - | - | 100W | - | - | 90 ~ 264 VAC | - | 4.16 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
AWSP100-12AC/DC CONVERTER 12V 100W Triad Magnetics |
13 | - |
|
数据表 |
AWSP100 | Box | Active | Enclosed | 1 | 12V | - | - | 100W | - | - | 88 ~ 264 VAC | - | 8.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
|
ABU125-560AC/DC CONVERTER 56V 90W Triad Magnetics |
0 | - |
|
数据表 |
ABU125 | Box | Obsolete | Open Frame | 1 | 56V | - | - | 90W | - | - | 90 ~ 264 VAC | - | 1.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
