交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

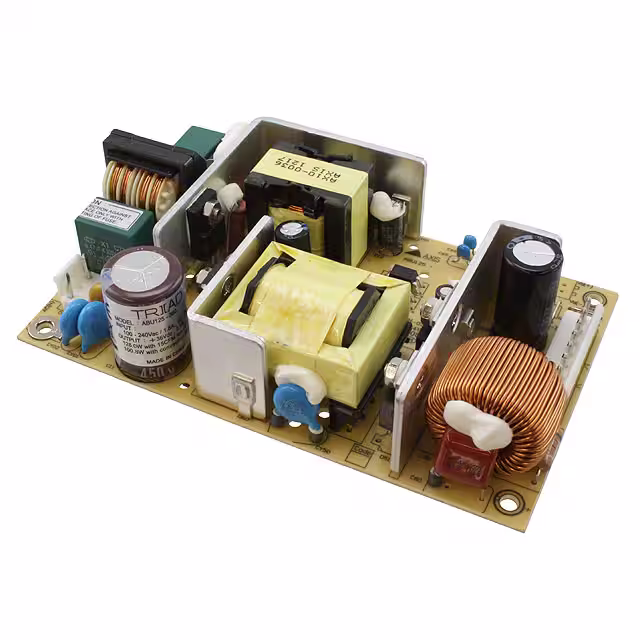

ABU125-360AC/DC CONVERTER 36V 100W Triad Magnetics |
0 | - |
|
数据表 |
ABU125 | Box | Active | Open Frame | 1 | 36V | - | - | 100W | - | - | 90 ~ 264 VAC | - | 2.78 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
ABU125-540AC/DC CONVERTER 54V 87W Triad Magnetics |
0 | - |
|
数据表 |
ABU125 | Box | Active | Open Frame | 1 | 54V | - | - | 87W | - | - | 90 ~ 264 VAC | - | 1.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
|
JSU240-0750AC/DC CONVERTER 24V 18W Triad Magnetics |
21 | - |
|
数据表 |
JSU240 | Box | Active | Enclosed | 1 | 24V | - | - | 18W | - | - | 90 ~ 264 VAC | - | 750 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
|
|
JSU120-1500AC/DC CONVERTER 12V 18W Triad Magnetics |
35 | - |
|
数据表 |
JSU120 | Box | Active | Enclosed | 1 | 12V | - | - | 18W | - | - | 90 ~ 264 VAC | - | 1.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 40°C | Universal Input | Rack Mount | 2.95" L x 1.89" W x 1.22" H (74.9mm x 48.0mm x 31.0mm) |
|

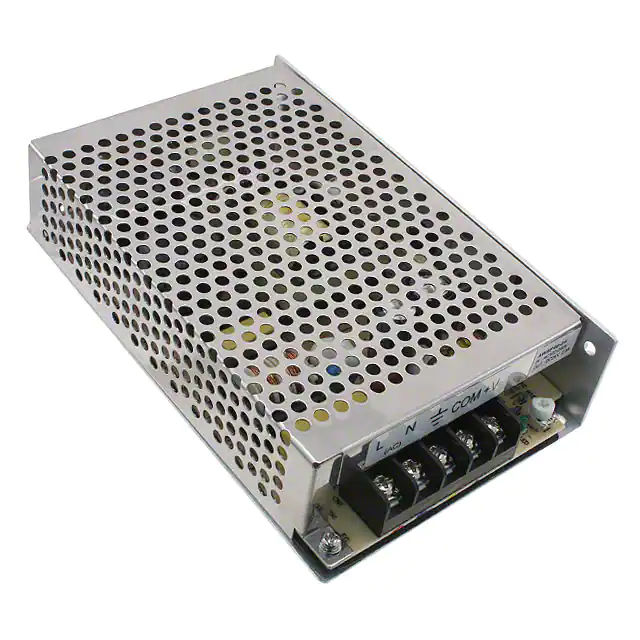

AWSP60-12AC/DC CONVERTER 12V 60W Triad Magnetics |
30 | - |
|
数据表 |
AWSP60 | Box | Active | Enclosed | 1 | 12V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
|
AWSP100-24AC/DC CONVERTER 24V 100W Triad Magnetics |
27 | - |
|
数据表 |
AWSP100 | Box | Active | Enclosed | 1 | 24V | - | - | 100W | - | - | 88 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
|
AEU65-240AC/DC CONVERTER 24V 65W Triad Magnetics |
46 | - |
|
数据表 |
AEU65 | Box | Active | Enclosed | 1 | 24V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 2.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|
ALS50-12AC/DC CONVERTER 12V 50W Triad Magnetics |
76 | - |
|
数据表 |
ALS50 | Box | Active | Open Frame | 1 | 12V | - | - | 50W | - | - | 90 ~ 260 VAC, 120 ~ 370 VDC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
|
ALS50-5AC/DC CONVERTER 5V 50W Triad Magnetics |
9 | - |
|
数据表 |
ALS50 | Box | Active | Open Frame | 1 | 5V | - | - | 50W | - | - | 90 ~ 260 VAC, 120 ~ 370 VDC | - | 9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
|
AEU65-360AC/DC CONVERTER 36V 65W Triad Magnetics |
43 | - |
|
数据表 |
AEU65 | Box | Active | Enclosed | 1 | 36V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 1.8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
