拨动开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 特性 | 执行器类型 | 执行器长度 | 开关功能 | 照明 | 照明类型，颜色 | 防护等级 | 照明电压（额定值） | 工作温度 | 衬套螺纹 | 端接样式 | 面板开孔尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

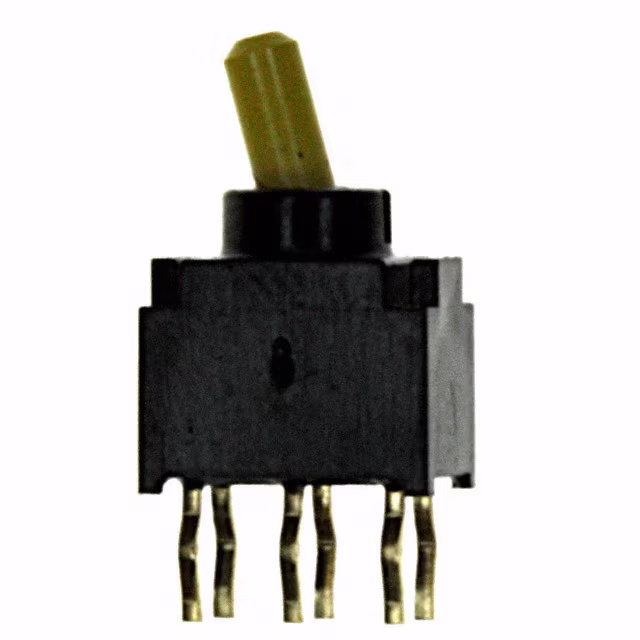

FT2D-2M-ZSWITCH TOGGLE DPDT 0.4VA 28V Nidec Components Corporation |
164 | - |
|
数据表 |
FT | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Washable, Yellow Actuator | Standard Round | 3.80mm | On-On | Non-Illuminated | - | - | - | -40°C ~ 85°C | Unthreaded | PC Pin | - |
|

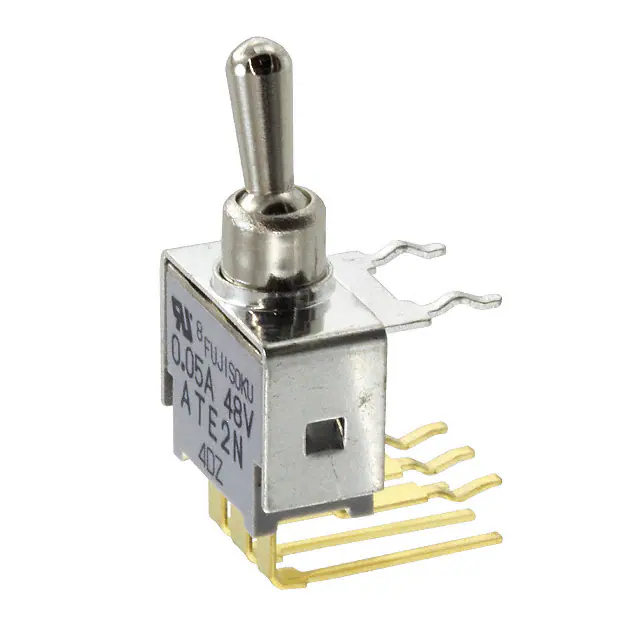

ATE2D-6M3-10-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
135 | - |
|
数据表 |
ATE | Tray | Active | Through Hole, Right Angle | DPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Standard Round | 6.00mm | On-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|
8A1011C-ZSWITCH TOGGLE SPDT 25MA 20V Nidec Components Corporation |
1,395 | - |
|
数据表 |
8A | Bulk | Active | Panel Mount | SPDT | 25mA (DC) | - | 20 V | Sealed - Flux Protection | Standard Round | 10.50mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.50mm Dia |
|
8G1012-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
115 | - |
|
数据表 |
8G | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Washable | Standard Round | 6.80mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | Unthreaded | PC Pin | - |
|
ET110F-ZSWITCH TOGGLE SPDT 10A 125V Nidec Components Corporation |
309 | - |
|
数据表 |
ET | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | - | Standard Round | 17.00mm | On-Mom | Non-Illuminated | - | - | - | - | M12 x 1 | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia |
|
8J2021-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
138 | - |
|
数据表 |
8J | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | - | Standard Round | 6.80mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.50mm Dia |
|

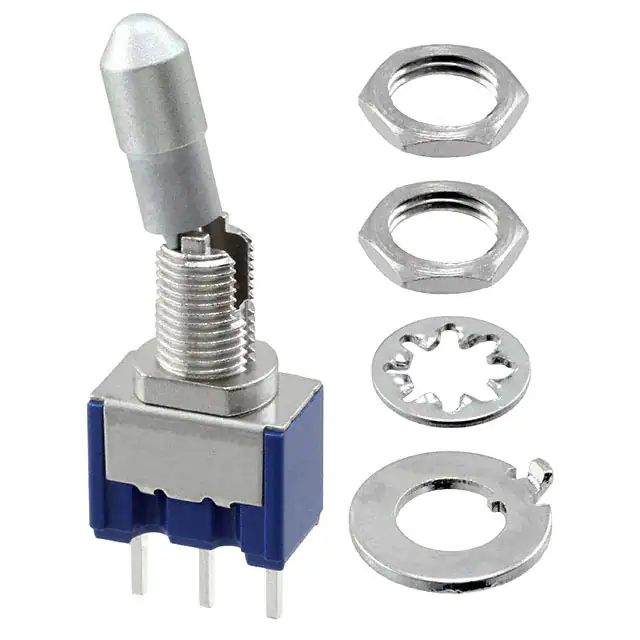

8E1012-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
112 | - |
|
数据表 |
8E | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Sealed - Flux Protection | Locking Lever | 16.50mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.50mm Dia |
|
ET115A-ZSWITCH TOGGLE SPST 15A 125V Nidec Components Corporation |
130 | - |
|
数据表 |
ET | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | - | Standard Round | 17.00mm | On-Off | Non-Illuminated | - | - | - | - | M12 x 1 | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia |
|
ATE1E-2F3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
114 | - |
|
数据表 |
ATE | Tray | Active | Through Hole | SPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Flatted | 10.00mm | On-Off-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|
CF-TA-1EB4-A12SWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
195 | - |
|
数据表 |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | - | Standard Round | 6.00mm | On-Off-On | Non-Illuminated | - | - | - | -40°C ~ 85°C | Unthreaded | Gull Wing | - |
