拨动开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 特性 | 执行器类型 | 执行器长度 | 开关功能 | 照明 | 照明类型，颜色 | 防护等级 | 照明电压（额定值） | 工作温度 | 衬套螺纹 | 端接样式 | 面板开孔尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATE1E-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
9,118 | - |
|
数据表 |
ATE | Tray | Active | Through Hole | SPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Standard Round | 6.00mm | On-Off-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|

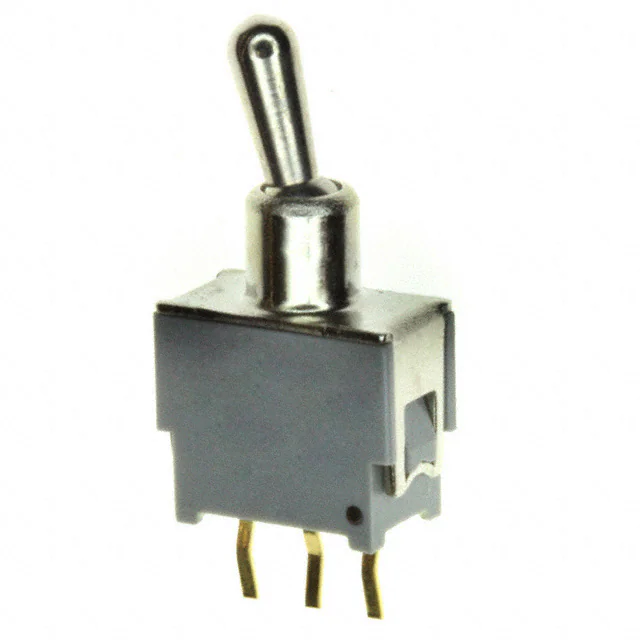

ATE1D-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V Nidec Components Corporation |
5,494 | - |
|
数据表 |
ATE | Tray | Active | Through Hole | SPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Standard Round | 6.00mm | On-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|
FT1D-4M-ZSWITCH TOGGLE SPDT 0.4VA 28V Nidec Components Corporation |
1,142 | - |
|
数据表 |
FT | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Washable, Yellow Actuator | Standard Round | 3.80mm | On-On | Non-Illuminated | - | - | - | -40°C ~ 85°C | Unthreaded | PC Pin | - |
|
8A1012-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
1,583 | - |
|
数据表 |
8A | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Sealed - Flux Protection | Standard Round | 10.50mm | On-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.50mm Dia |
|

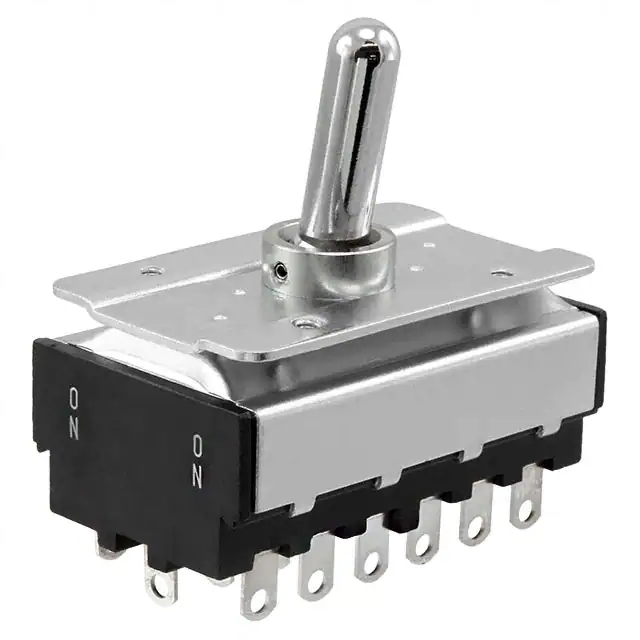

ET610N13-ZSWITCH TOGGLE 6PDT 10A 125V Nidec Components Corporation |
122 | - |
|
数据表 |
ET | Bulk | Active | Panel Mount | 6PDT | 10A (AC) | 125 V | - | - | Standard Round | 27.00mm | On-On | Non-Illuminated | - | - | - | - | Unthreaded | Solder Lug | Circular - 15.50mm Dia |
|
CFT2-1DC-AWSWITCH TOGGLE SPDT 0.4VA 28V Nidec Components Corporation |
1,272 | - |
|
数据表 |
CFT2 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Washable, Gray Actuator | Standard Round | 3.80mm | On-On | Non-Illuminated | - | - | - | -40°C ~ 85°C | Unthreaded | PC Pin | - |
|
ATE2D-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
990 | - |
|
数据表 |
ATE | Tray | Active | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Standard Round | 6.00mm | On-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|
|
ATE2E-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
464 | - |
|
数据表 |
ATE | Tray | Active | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | Washable | Standard Round | 6.00mm | On-Off-On | Non-Illuminated | - | - | - | -20°C ~ 85°C | Unthreaded | PC Pin | - |
|
|
8A1022-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
135 | - |
|
数据表 |
8A | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Sealed - Flux Protection | Standard Round | 10.50mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | 1/4-40 | PC Pin | Circular - 6.50mm Dia |
|
ET115C12-ZSWITCH TOGGLE SPST-NO 15A 125V Nidec Components Corporation |
656 | - |
|
数据表 |
ET | Bulk | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | - | Standard Round | 17.00mm | Off-Mom | Non-Illuminated | - | - | - | - | M12 x 1 | Solder Lug | Circular - 12.50mm Dia |
