散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-55150W-C0-R0HEATSINK 15X15X24.5MM W/OUT TIM |
0 | - |
|
数据表 |
- | Bulk | Active | Top Mount | BGA | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.965" (24.50mm) | Thermal Tape, Adhesive (Not Included) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

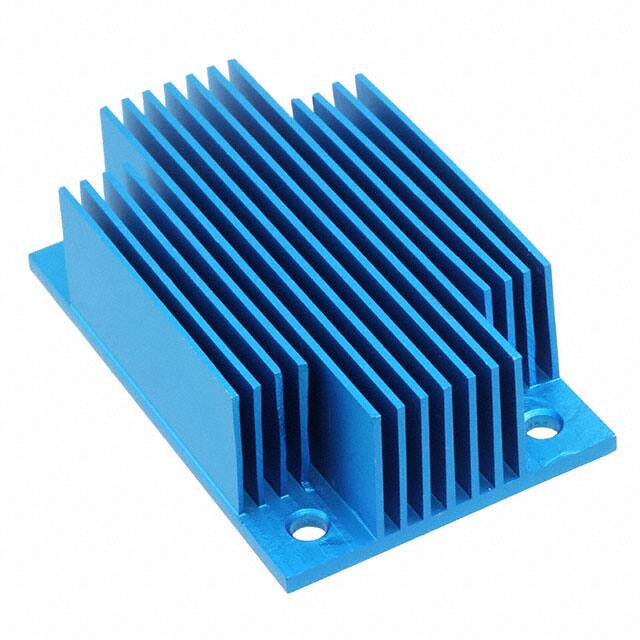

ATS-P1-33-C3-R0HEATSINK 57.9X36.83X17.78MM T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | Push Pin | - | 17.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

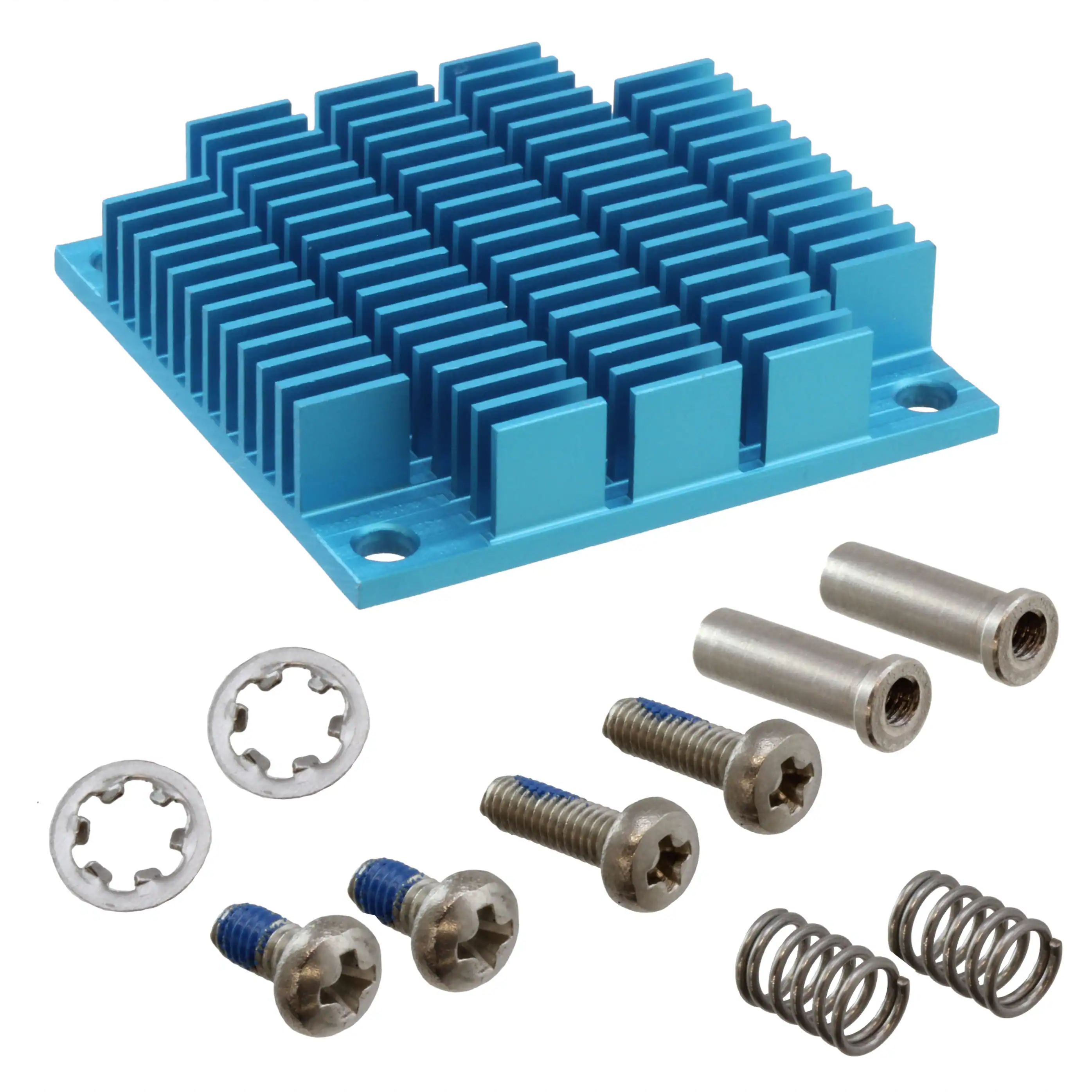

ATS-H1-06-C1-R0HEATSINK 45X45X10MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 20.15°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

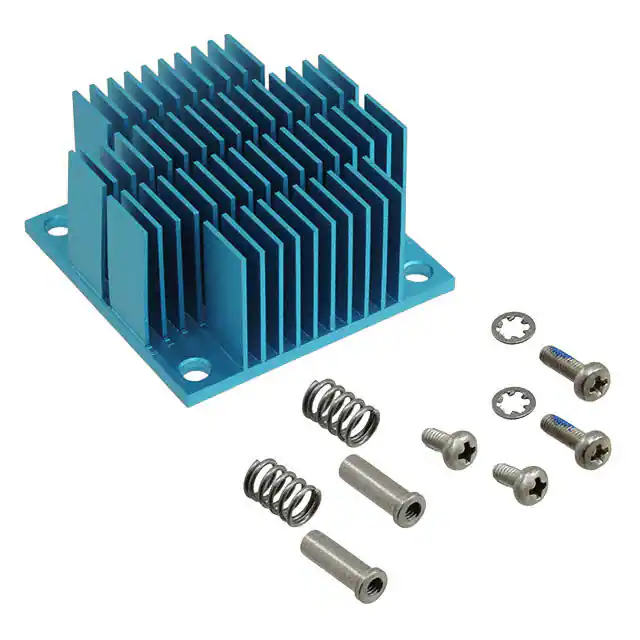

ATS-H1-45-C1-R0HEATSINK 25X25X20MM L-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 14.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-55-C1-R0HEATSINK 35X35X10MM L-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 23.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-75-C1-R0HEATSINK 25X25X20MM R-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 14.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-85-C1-R0HEATSINK 35X35X10MM R-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 23.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

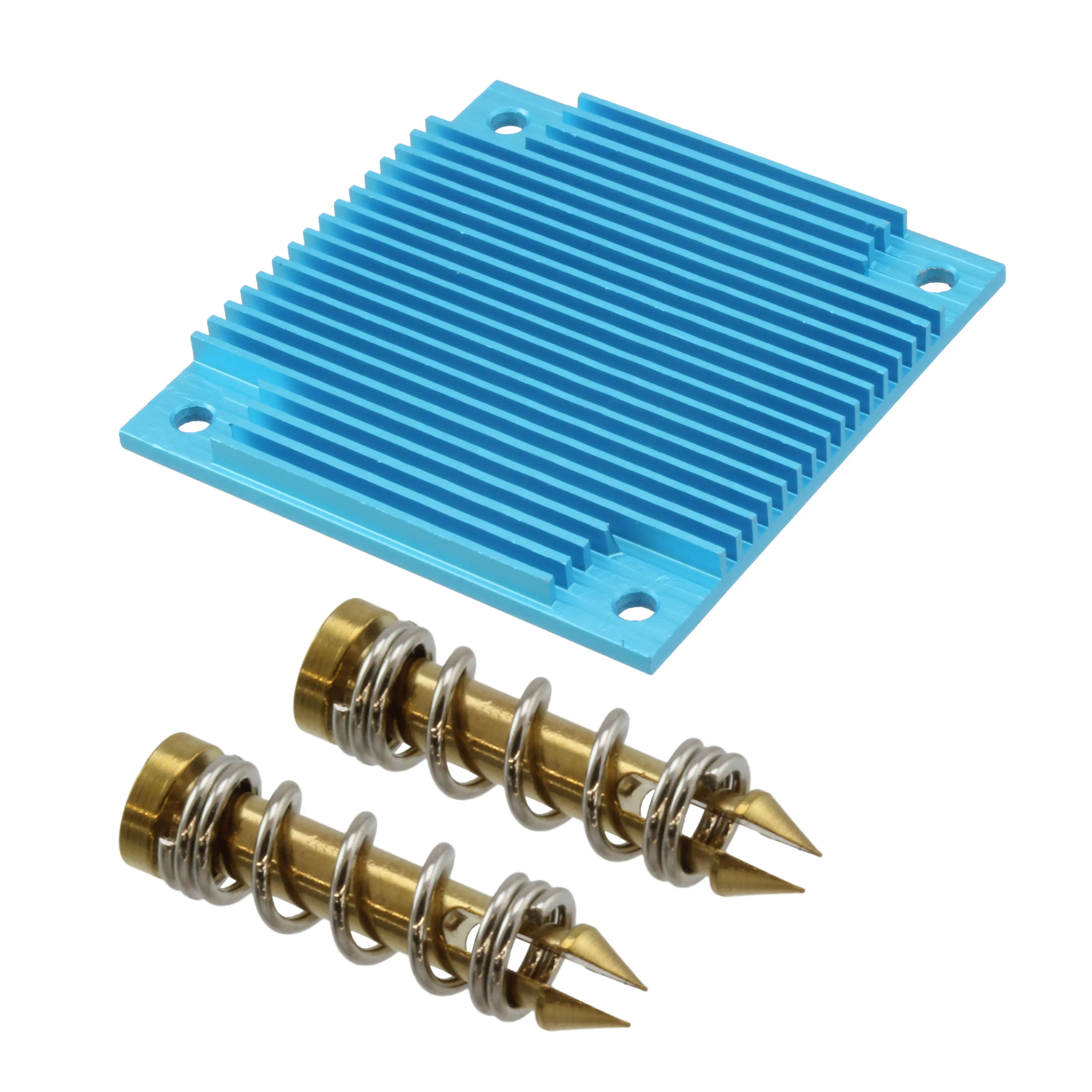

ATS-15D-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | Push Pin | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-52325G-C0-R0HEATSINK 32.5X32.5X12.5MM NO TIM |
0 | - |
|
数据表 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.492" (12.50mm) | Thermal Tape, Adhesive (Not Included) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-134-C1-R0HEATSINK 70X70X15MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 4.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-115-C1-R0HEATSINK 40X40X20MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
11-5602-5111-5602-51 REV F |
0 | - |
|
数据表 |
- | Bulk | Active | Top Mount | BGA | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.453" (11.50mm) | Push Pin | - | - | 3.70°C/W | Brass | Black Anodized |
|

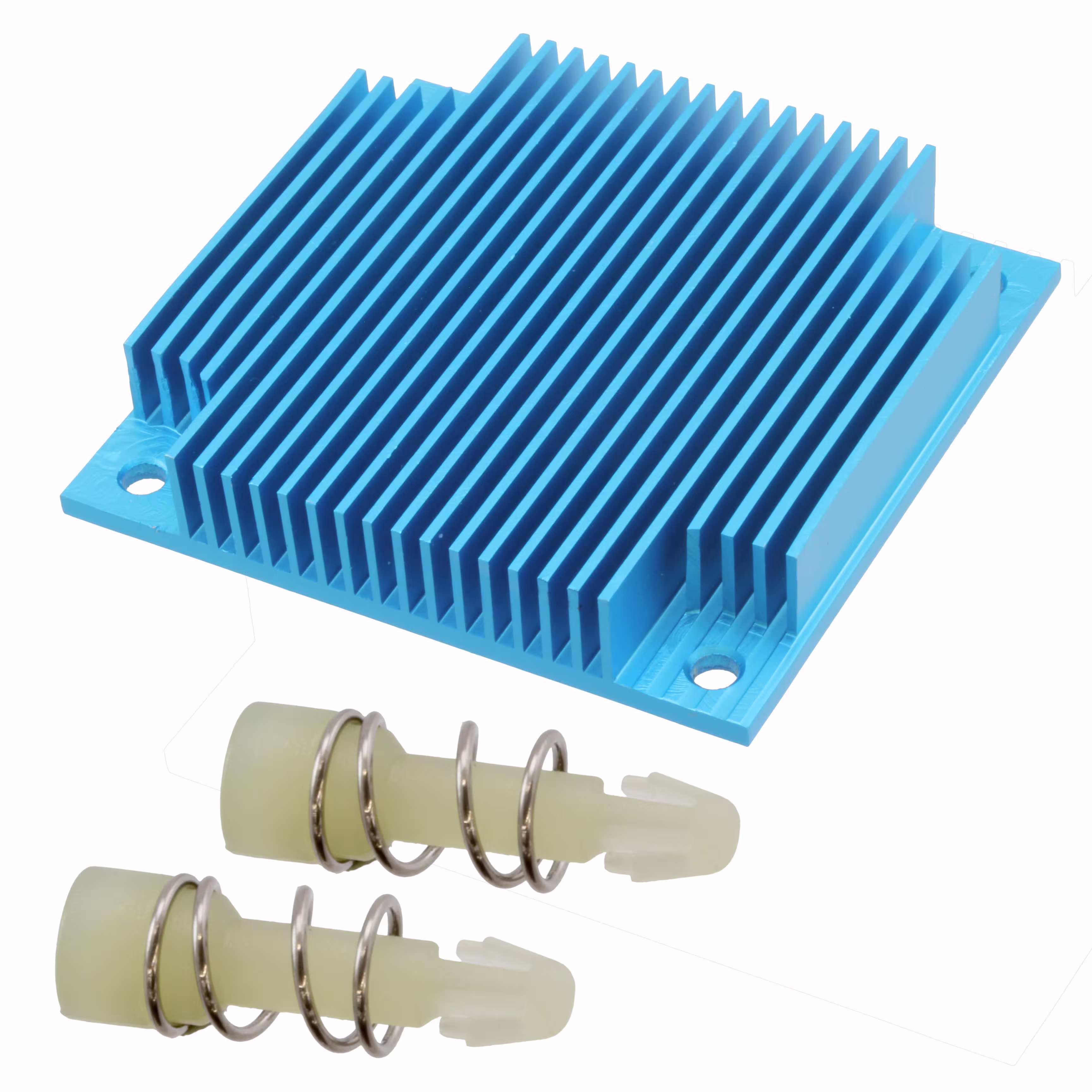

ATS-P1-40-C1-R0HEATSINK 57.9X60.96X11.43MM |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | Push Pin | - | 14.55°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

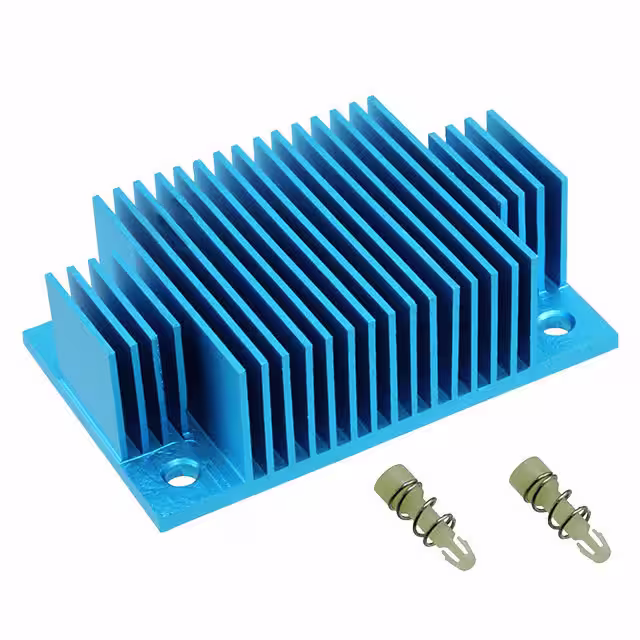

ATS-P1-37-C3-R0HEATSINK 36.83X57.6X17.78MM T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | Push Pin | - | 9.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

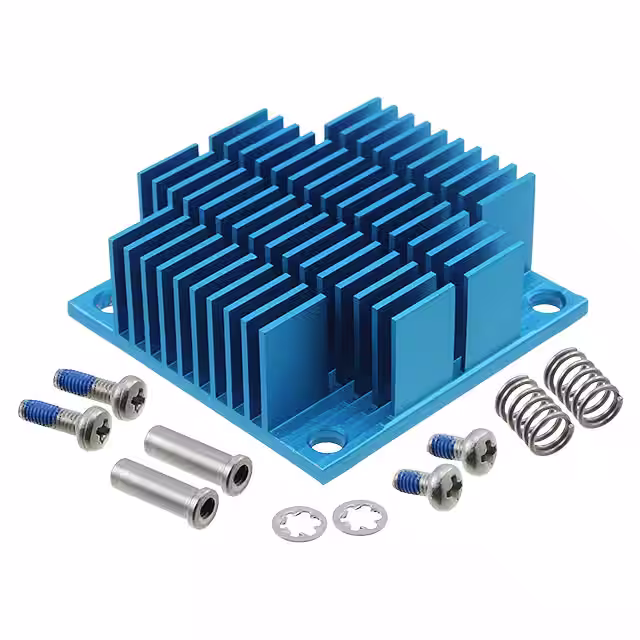

ATS-H1-50-C1-R0HEATSINK 30X30X15MM L-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-80-C1-R0HEATSINK 30X30X15MM R-TAB |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

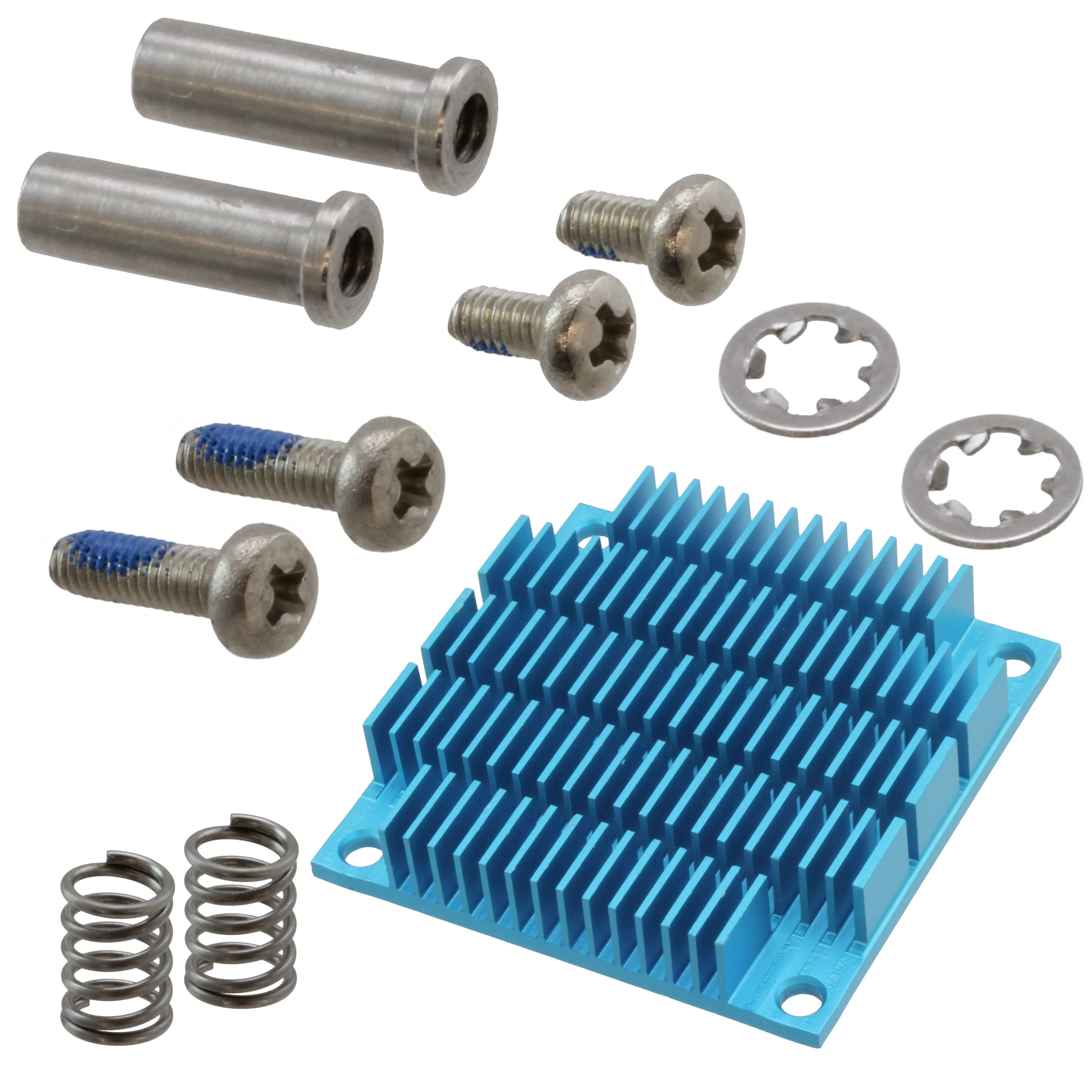

ATS-H1-200-C1-R0HEATSINK 50X50X10MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 9.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-202-C1-R0HEATSINK 54X54X6MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.236" (6.00mm) | Push Pin | - | 14.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-54190W-C0-R0HEATSINK 19X19X24.5MM W/OUT TIM |
0 | - |
|
数据表 |
- | Bulk | Active | Top Mount | BGA | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.965" (24.50mm) | Thermal Tape, Adhesive (Not Included) | 0.3W @ 20°C | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
AER45-45-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 | - |
|
数据表 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.457" (11.60mm) | Thermal Tape, Adhesive (Included) | - | 2.70°C/W @ 200 LFM | 8.70°C/W | Aluminum Alloy | Black Anodized |
