散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-14B-131-C1-R0HEATSINK 60X60X20MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 3.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-14B-63-C3-R0HEATSINK 40X40X20MM L-TAB T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14B-93-C3-R0HEATSINK 40X40X20MM R-TAB T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15B-131-C1-R0HEATSINK 60X60X20MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 3.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15B-63-C3-R0HEATSINK 40X40X20MM L-TAB T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
AER40-40-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 | - |
|
数据表 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.693" (17.60mm) | Thermal Tape, Adhesive (Included) | - | 2.42°C/W @ 200 LFM | 9.01°C/W | Aluminum Alloy | Black Anodized |
|
|
ATS-15B-93-C3-R0HEATSINK 40X40X20MM R-TAB T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-117-C1-R0HEATSINK 45X45X10MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 10.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55350R-C0-R0HEATSINK 35X35X19.5MM W/OUT TIM |
0 | - |
|
数据表 |
- | Bulk | Active | Top Mount | BGA | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | Thermal Tape, Adhesive (Not Included) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-16B-131-C1-R0HEATSINK 60X60X20MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 3.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52290G-C0-R0HEATSINK 29X29X12.5MM W/OUT TIM |
0 | - |
|
数据表 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | Thermal Tape, Adhesive (Not Included) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-55310R-C0-R0HEATSINK 31X31X19.5MM W/OUT TIM |
0 | - |
|
数据表 |
- | Bulk | Active | Top Mount | BGA | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | Thermal Tape, Adhesive (Not Included) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-16F-210-C1-R0HEATSINK 70X70X12MM XCUT |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | Push Pin | - | 5.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

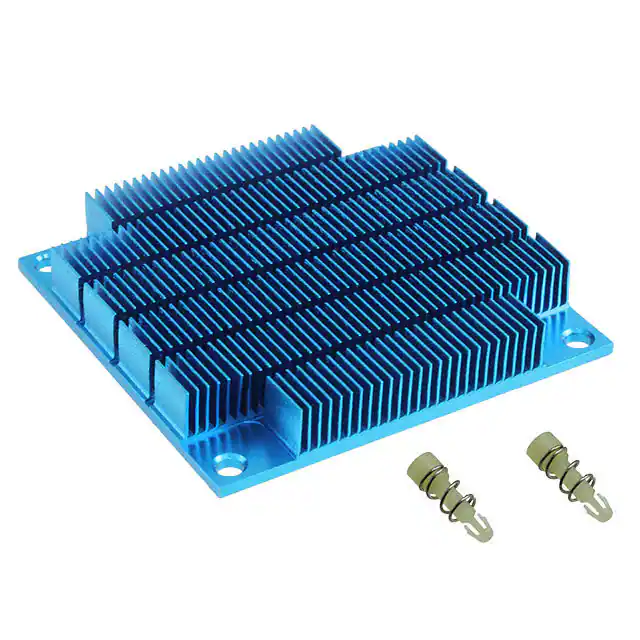

ATS-P1-111-C1-R1HEATSINK 60.00MM X 60.00MM ALUM |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | Push Pin | - | 26.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

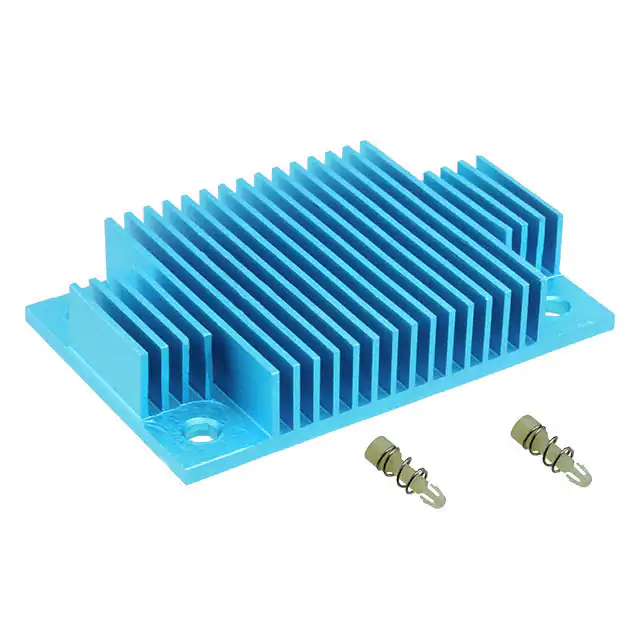

ATS-P1-36-C3-R0HEATSINK 36.83X57.6X11.43MM T412 |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.450" (11.43mm) | Push Pin | - | 14.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

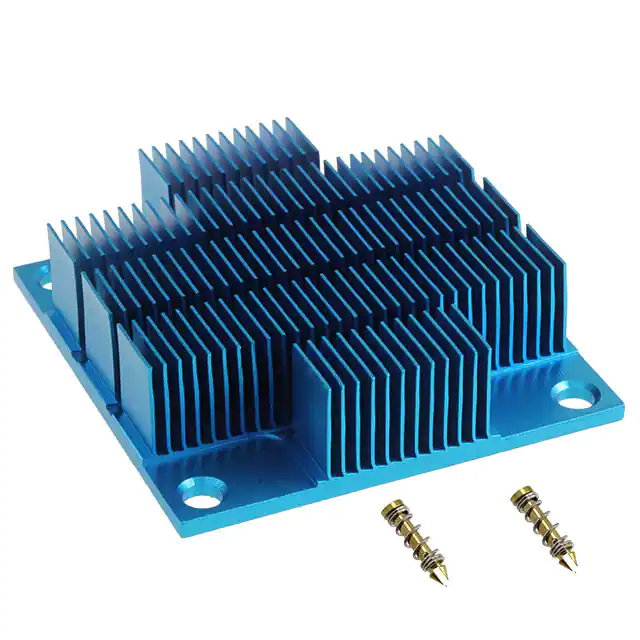

ATS-P2-106-C3-R1HEATSINK 45.00MM X 45.00MM ALUM |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | Push Pin | - | 26.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-107-C3-R1HEATSINK 50.00MM X 50.00MM ALUM |
0 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | Push Pin | - | 28.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
AER43-43-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 | - |
|
数据表 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.457" (11.60mm) | Thermal Tape, Adhesive (Included) | - | 2.82°C/W @ 200 LFM | 9.57°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 | - |
|
数据表 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.575" (14.60mm) | Thermal Tape, Adhesive (Included) | - | 2.52°C/W @ 200 LFM | 9.07°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 | - |
|
数据表 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.693" (17.60mm) | Thermal Tape, Adhesive (Included) | - | 2.32°C/W @ 200 LFM | 8.57°C/W | Aluminum Alloy | Black Anodized |
