散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX060060006-205-C1-R0HEATSINK 60X60X6MM XCUT CP |
120 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | Push Pin | - | 12.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050010-200-C3-R0HEATSINK 50X50X10MM XCUT CP |
196 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 9.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-29-12-S-AB-0HEATSINK 29X12MM SIDE PUSH PIN |
480 | - |
|
数据表 |
960 | Box | Active | Top Mount | BGA | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.472" (12.00mm) | Push Pin | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-PCB1061HEATSINK TRIPLE TO-126 COPPER |
5,620 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-126 | Rectangular, Fins | 1.759" (44.68mm) | 1.750" (44.45mm) | - | 0.400" (10.16mm) | Clip and Board Mounts | - | 6.50°C/W @ 200 LFM | 15.00°C/W | Copper | Tin |
.jpg)
|
6230DG (COPPER)HEATSINK COPPER TO-220 W/TABS |
1,306 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | Bolt On and PC Pin | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 12.50°C/W | Copper | Tin |
|
|
960-21-21-D-AB-0HEATSINK 21X21MM DIA PUSH PIN |
2,378 | - |
|
数据表 |
960 | Box | Active | Top Mount | BGA | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.827" (21.00mm) | Push Pin | - | 4.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX030030030-53-C1-R0HEATSINK 30X30X30MM L-TAB FP |
125 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 8.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

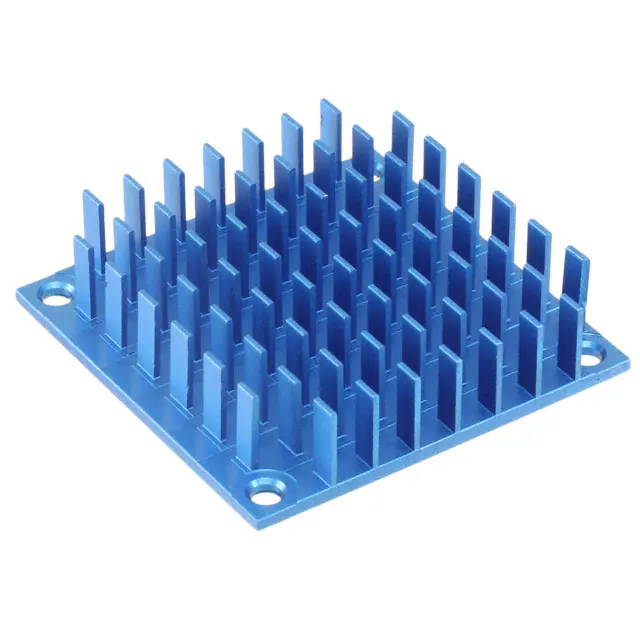

ATS-CPX050050012-201-C3-R0HEATSINK 50X50X12MM XCUT CP |
294 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.472" (12.00mm) | Push Pin | - | 8.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030030-173-C3-R0HEATSINK 30X30X30MM R-TAB CP |
149 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 4.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030030-53-C2-R0HEATSINK 30X30X30MM L-TAB FP |
177 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 8.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX054054010-125-C3-R0HEATSINK 54X54X10MM XCUT CP |
123 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 8.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040035-96-C1-R0HEATSINK 40X40X35MM R-TAB FP |
105 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | Push Pin | - | 5.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040025-156-C3-R0HEATSINK 40X40X25MM L-TAB CP |
105 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | Push Pin | - | 4.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-23-12-D-AB-0HEATSINK 23X12MM DIA PUSH PIN |
350 | - |
|
数据表 |
960 | Box | Active | Top Mount | BGA | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.472" (12.00mm) | Push Pin | - | 6.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
137 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | Push Pin | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-193-C2-R0HEATSINK 40X40X6MM XCUT T766 |
494 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | Push Pin | - | 21.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-21-23-D-AB-0HEATSINK 21X23MM DIA PUSH PIN |
120 | - |
|
数据表 |
960 | Box | Active | Top Mount | BGA | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.905" (23.00mm) | Push Pin | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-03A-65-C2-R0HEATSINK 40X40X30MM L-TAB T766 |
103 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040030-157-C2-R0HEATSINK 40X40X30MM L-TAB CP |
106 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 3.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03A-73-C2-R0HEATSINK 25X25X10MM R-TAB T766 |
113 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
