散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR401-50AEALUMINUM HEATSINK 50MM BLK ANODI Ohmite |
0 | - |
|
数据表 |
CR | Box | Obsolete | Board Level, Vertical | TO-401 | Rectangular, Fins | 1.969" (50.00mm) | 2.953" (75.00mm) | - | - | 2 Clips and PC Pin | - | - | 3.80°C/W | Aluminum Alloy | Black Anodized |
|
BGAH325-075EBGA HEATSINK W/TAPE Ohmite |
0 | - |
|
数据表 |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Square, Angled Fins | 1.279" (32.50mm) | 1.279" (32.50mm) | - | 0.295" (7.50mm) | Thermal Tape, Adhesive (Included) | - | - | 6.00°C/W | Aluminum Alloy | Black Anodized |
|
C264-058-2AEHEATSINK AND CLIPS FOR 2 TO-264 Ohmite |
0 | - |
|
数据表 |
C | Box | Obsolete | Board Level, Vertical | TO-264 | Rectangular, Fins | 2.283" (58.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 2 Clips and PC Pin | - | - | - | Aluminum | Black Anodized |
|
BGAH190-090EBGA HEATSINK W/TAPE Ohmite |
0 | - |
|
数据表 |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | Thermal Tape, Adhesive (Included) | - | 4.50°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
C247-050-2VEHEATSINK FOR TO-247 WITH 2 CLIPS Ohmite |
0 | - |
|
数据表 |
C | Box | Obsolete | Board Level, Vertical | TO-247 | Rectangular, Fins | 1.969" (50.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 2 Clips and PC Pin | 2.5W @ 30°C | 5.00°C/W @ 200 LFM | - | Aluminum | Degreased |
|
|
CR401-50VEALUMINUM HEATSINK 50MM DEGREASED Ohmite |
0 | - |
|
数据表 |
CR | Box | Obsolete | Board Level, Vertical | TO-401 | Rectangular, Fins | 1.969" (50.00mm) | 2.953" (75.00mm) | - | - | 2 Clips and PC Pin | - | - | 3.80°C/W | Aluminum Alloy | Degreased |
|
MA-101-27EHEATSINK W/CLIP - TO-247/TO-264 Ohmite |
0 | - |
|
数据表 |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Rectangular, Fins | 1.060" (26.92mm) | 1.350" (34.30mm) | - | 1.520" (38.61mm) | Clip and PC Pin | - | - | 8.00°C/W | Aluminum | Black Anodized |
|
PA-T21-38EDUAL PIN FIN HEATSINK 1 CLIP Ohmite |
8 | - |
|
数据表 |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Rectangular, Pin Fins | 2.170" (55.12mm) | 1.240" (31.50mm) | - | 1.520" (38.61mm) | Clip and PC Pin | - | - | 3.13°C/W | Aluminum | Black Anodized |
|
BGAH375-125EBGA HEATSINK W/TAPE Ohmite |
15 | - |
|
数据表 |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.492" (12.50mm) | Thermal Tape, Adhesive (Included) | - | - | 3.00°C/W | Aluminum Alloy | Black Anodized |
|

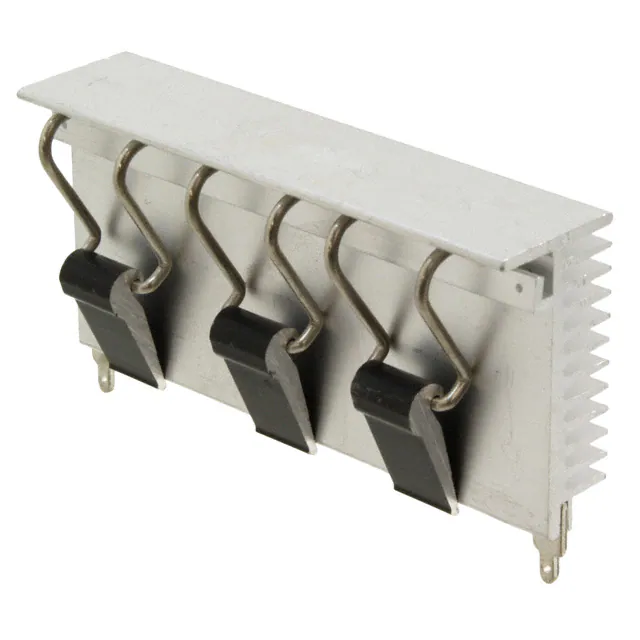

C220-075-3VEHEATSINK AND CLIPS FOR 3 TO-220 Ohmite |
15 | - |
|
数据表 |
C | Box | Obsolete | Board Level, Vertical | TO-220 | Rectangular, Fins | 2.953" (75.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 3 Clips and PC Pin | - | - | - | Aluminum | Degreased |
