射频天线
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率范围 | 天线类型 | 频段数量 | 安装类型 | VSWR | 回波损耗 | 频率（中心/带宽） | 增益 | 功率 - 最大值 | 认证 | 特性 | 高度（最大值） | 等级 | 端接方式 | 防护等级 | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA220.LB.001RF ANT 700MHZ/800MHZ MOD SMA ADH Taoglas Limited |
291 | - |
|
数据表 |
Optimus | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz | Module | 11 | Adhesive | 1.92 | -5dB | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | -1.54dBi, -0.53dBi, -0.53dBi, -1.07dBi, 3dBic, -0.1dBi, 0.72dBi, 0.89dBi, -2.4dBi, -1.59dBi | 5 W | - | Cable - 3m, LNA | 0.472" (12.00mm) | - | SMA Male (2) | IP67 | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
TLS.01.305111RF ANT 829MHZ/1.575GHZ WHIP STR Taoglas Limited |
505 | - |
|
数据表 |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | Panel Mount | - | -10dB | 829MHz, 1.575GHz, 2.2GHz | 4.6dB | 100 W | - | - | 3.150" (80.00mm) | - | SMA Male | IP69K | GPS, LTE |
|
ADFGP.50A.07.0100CGNSS DUAL STACKED PATCH ANTENNA, Taoglas Limited |
131 | - |
|
数据表 |
- | Bulk | Active | Navigation | Wide Band | - | Ceramic Patch | 5 | Surface Mount | 2 | - | 1.176GHz, 1.23GHz, 1.56GHz, 1.58GHz, 1.6GHz | 0.7dBi, 1.6dBi, 2.4dBi, 3.4dBi, 3.2dBi | - | - | Cable - 100mm, LNA, Filter | 0.661" (16.80mm) | - | U.FL (UMCC), I-PEX MHF1 | - | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MA145.A.LBC.0013IN1 GNSS, LTE & WIFI ANT 2.4GHZ Taoglas Limited |
71 | - |
|
数据表 |
Olympian II | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz | Dome | 11 | Panel Mount | 2 | - | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz | -0.2dBi, 1.3dBi, 0.4dBi, 3.6dBi, -1.98dBi, -1.67dBi, 3.8dBi, 3.5dBi, 2.7dBi, 3.1dBi, 3.6dBi | 10 W | - | Cable - 1m, LNA, Filter | 1.909" (48.50mm) | - | RP-SMA Male, SMA Male | IP67 | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
OMB.242.08F21RF ANT 2.4GHZ WHIP STR N FEM Taoglas Limited |
74 | - |
|
数据表 |
Barracuda | Tube | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | Bracket Mount | 1.3 | - | 2.4GHz | 8dBi | 50 W | - | - | 20.591" (523.00mm) | - | N Type Female | - | Bluetooth, WLAN |
|
IAA.01.121111RF ANT 1.6GHZ MODULE SMA ML MAG Taoglas Limited |
448 | - |
|
数据表 |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.616GHz ~ 1.626GHz | Module | 1 | Magnetic | 1.5 | - | 1.6GHz | - | - | - | - | 0.484" (12.30mm) | - | SMA Male | IP67 | Iridium® |
|
MA170.A.BI.001MONSOON 3M LTE MIMO(1&2) SMA(M)S Taoglas Limited |
304 | - |
|
数据表 |
- | Tray | Active | Cellular | Wide Band | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 8 | Base Mount | 5 | - | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.45GHz | 1.47dBi, 2.28dBi, 2.36dBi, 2.74dBi, 3.28dBi, 4.43dBi, 5.93dBi | - | - | - | 1.218" (30.93mm) | - | SMA Male | - | 2G, 3G, 4G, LTE |
|

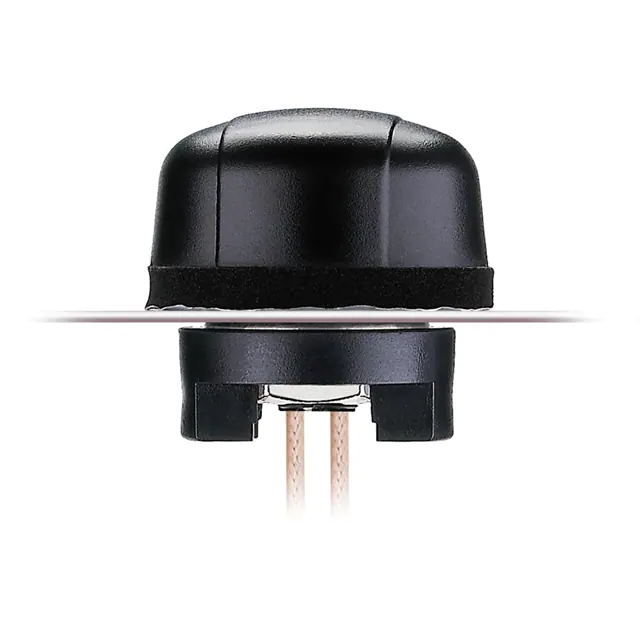

MA510.C.CG.005RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA Taoglas Limited |
746 | - |
|
数据表 |
Hercules | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz | Dome | 2 | Panel Mount | 2 | -10dB | 2.4GHz, 5.3GHz | 3.9dBi, 3dBi | 2 W | - | - | 1.142" (29.00mm) | - | RP-SMA Male | IP69K | Bluetooth, WLAN, Zigbee™ |
|

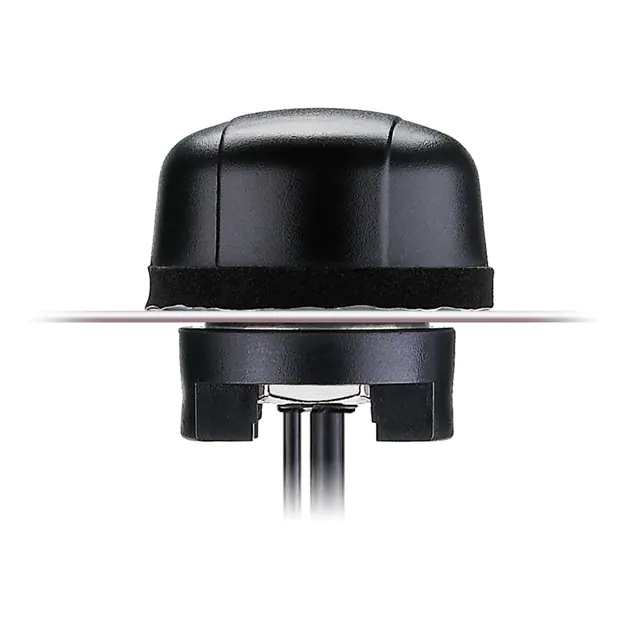

MA520.A.BC.008RF ANT 850MHZ/900MHZ DOME PNL MT Taoglas Limited |
245 | - |
|
数据表 |
Hercules | Bag | Active | Cellular, WiFi | Wide Band | 850MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.825GHz | Dome | 7 | Panel Mount | - | -8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz | 1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi | 10 W | - | Cable - 2m | 1.122" (28.50mm) | - | SMA Male, RP-SMA Male (2) | IP67, IP69K | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi |
|

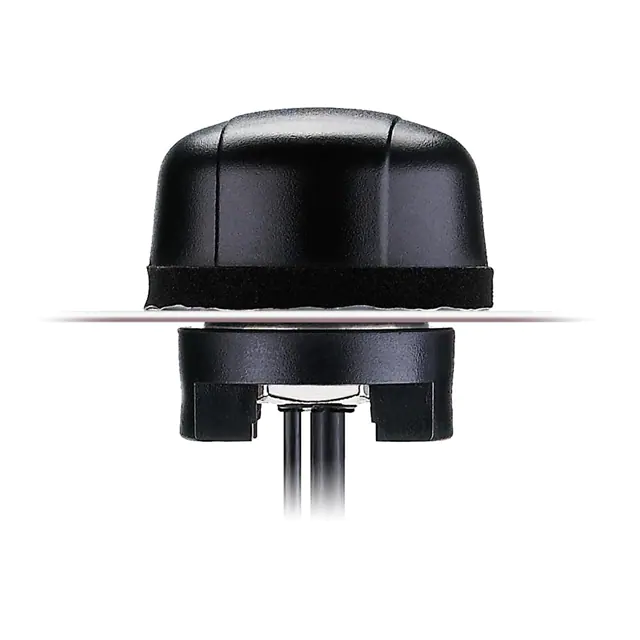

MA501.C.AC.001RF ANT 1.575GHZ/2.4GHZ DOME CAB Taoglas Limited |
184 | - |
|
数据表 |
- | Bag | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.57GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz | Dome | 3 | Panel Mount | 2, 1.8 | -12.1dB, -15.3dB | 1.575GHz, 2.4GHz, 5.2GHz | 2dBi, 4.05dBi, 4.37dBi | - | - | Cable - 3m, LNA, Filter | 1.142" (29.00mm) | - | SMA Male (1), RP-SMA Male (1) | IP67, IP69K | Bluetooth, GPS, WLAN, Zigbee™ |
