干簧继电器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点额定值（电流） | 切换电压 | 线圈电流 | 触点材料 | 线圈类型 | 特性 | 触点形式 | 端接样式 | 密封等级 | 工作温度 | 必须动作电压 | 释放时间 | 必须释放电压 | 动作时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9001-05-11RELAY REED SPST 500MA 5V Coto Technology |
27,768 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode, EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
|
8L02-05-01RELAY REED DPST 500MA 5V Coto Technology |
2,375 | - |
|
数据表 |
8L | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | - | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|
9091-05-11RELAY REED SPST 500MA 5V Coto Technology |
13,522 | - |
|
数据表 |
9091 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode, EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.3 ms | 0.4 VDC | 0.5 ms |
|

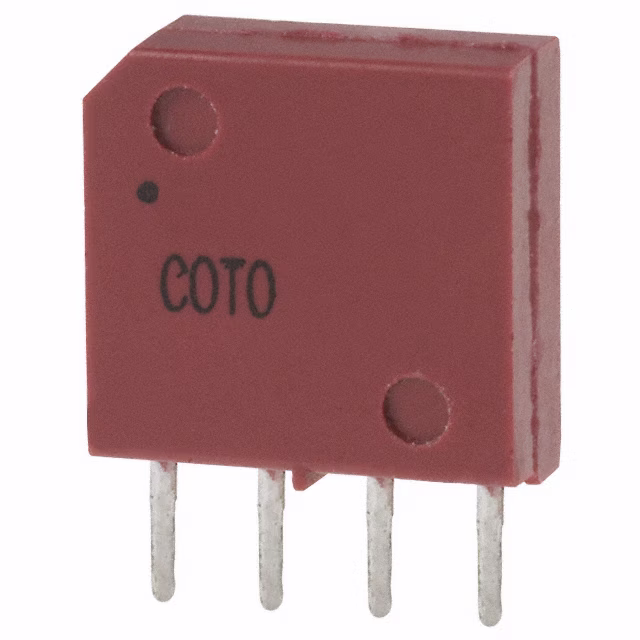

9012-05-10RELAY REED SPST 500MA 5V Coto Technology |
21,838 | - |
|
数据表 |
9012 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
|
|
9012-12-10RELAY REED SPST 500MA 12V Coto Technology |
8,389 | - |
|
数据表 |
9012 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 16 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.35 ms |
|
9401-05-00RELAY REED SPST 500MA 5V Coto Technology |
456 | - |
|
数据表 |
9400 | Tube | Active | Surface Mount | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | - | Non Latching | - | SPST-NO (1 Form A) | Gull Wing | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.4 ms |
|
9001-05-02RELAY REED SPST 500MA 5V Coto Technology |
20,556 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
|

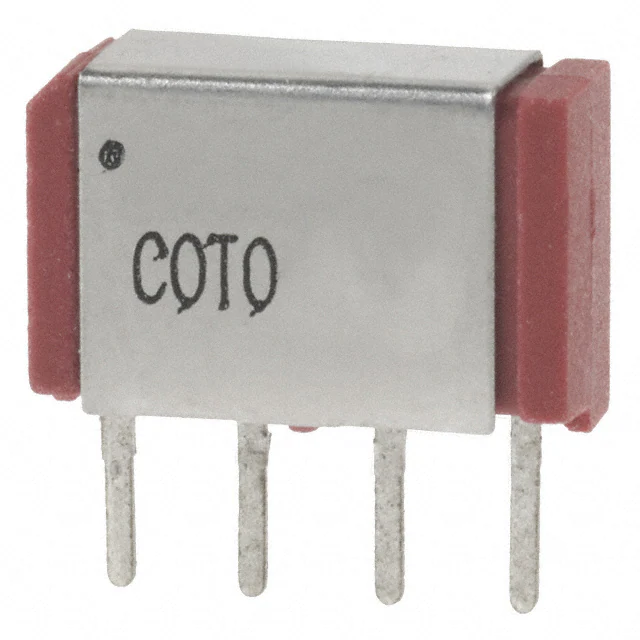

9011-05-10RELAY REED SPST 250MA 5V Coto Technology |
9,950 | - |
|
数据表 |
9011 | Bulk | Active | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
|
8L61-05-001RELAY REED SPDT 250MA 5V Coto Technology |
4,640 | - |
|
数据表 |
8L | Bulk | Active | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | - | Non Latching | - | SPDT (1 Form C) | J Lead | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.5 VDC | 1 ms |
|

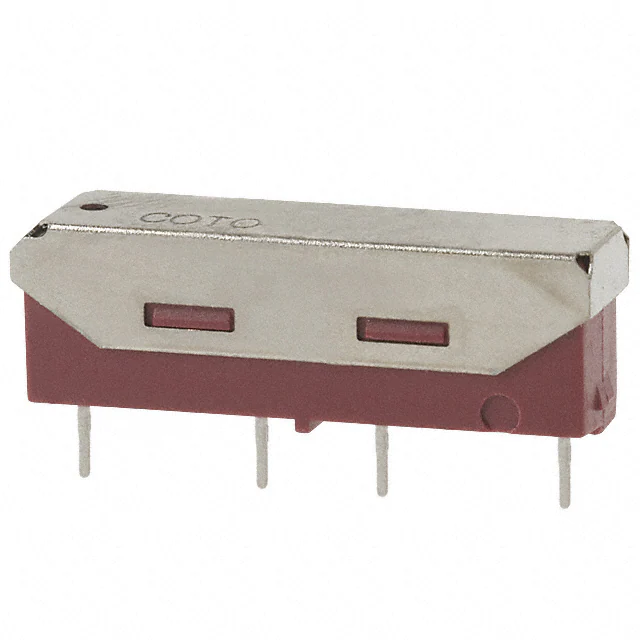

9104-12-10RELAY REED SPST 500MA 12V Coto Technology |
26,614 | - |
|
数据表 |
9104 | Bulk | Active | Through Hole | 12VDC | 500 mA | 1000VAC, 1000VDC - Max | 24 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.5 ms | 1 VDC | 0.75 ms |
