干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
7141-12-1001 RELAY REED SPDT 250MA 12V Coto Technology	1,596	-	询价单	数据表	7000	Bulk	Active	Through Hole	12VDC	250 mA	150VAC, 150VDC - Max	10.9 mA	-	Non Latching	Diode	SPDT (1 Form C)	PC Pin	-	-20°C ~ 85°C	9 VDC	2.5 ms	1 VDC	2 ms
7102-05-1011 RELAY REED DPST 500MA 5V Coto Technology	3,956	-	询价单	数据表	7000	Bulk	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	33.3 mA	-	Non Latching	Diode, Electrostatic Shield	DPST-NO (2 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.1 ms	0.4 VDC	1 ms
S1-0504 RELAY REED 4KV SPST 5V SIP Sensata Technologies, Inc.	2,868	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	1 A	300VAC, 350VDC - Max	27.8 mA	Rhodium (Rh)	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	4 VDC	0.5 ms	1.25 VDC	1 ms
S1-12-2A RELAY REED TWIN N/O 1.5KV 12V Sensata Technologies, Inc.	3,735	-	询价单	数据表	S1	Bulk	Active	Through Hole	12VDC	500 mA	1000VDC - Max	15.4 mA	Rhodium (Rh)	Non Latching	-	SPST-NO (1 Form A) x 2	PC Pin	-	-40°C ~ 85°C	9 VDC	0.3 ms	1.2 VDC	0.75 ms
S1-0504M RELAY REED 4KV SPST 5V SIP SCREE Sensata Technologies, Inc.	3,283	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	1 A	300VAC, 350VDC - Max	27.8 mA	Rhodium (Rh)	Non Latching	EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	4 VDC	0.5 ms	1.25 VDC	1 ms
S1-0504D RELAY REED 4KV SPST 5V SIP W/DIO Sensata Technologies, Inc.	3,559	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	1 A	300VAC, 350VDC - Max	27.8 mA	Rhodium (Rh)	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	4 VDC	0.5 ms	1.25 VDC	1 ms
S1-1204D RELAY REED 4KV SPST 12V SIP W/DI Sensata Technologies, Inc.	3,189	-	询价单	数据表	S1	Bulk	Active	Through Hole	12VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	10.8 VDC	0.5 ms	1.25 VDC	1 ms
S1-0504DM RELAY REED 4KV SPST 5V SIP W/DIO Sensata Technologies, Inc.	3,415	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	1 A	300VAC, 350VDC - Max	27.8 mA	Rhodium (Rh)	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	4 VDC	0.5 ms	1.25 VDC	1 ms
S1-1204DM RELAY REED 4KV SPST 12V SIP W/DI Sensata Technologies, Inc.	1,871	-	询价单	数据表	S1	Bulk	Active	Through Hole	12VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	10.8 VDC	0.5 ms	1.25 VDC	1 ms

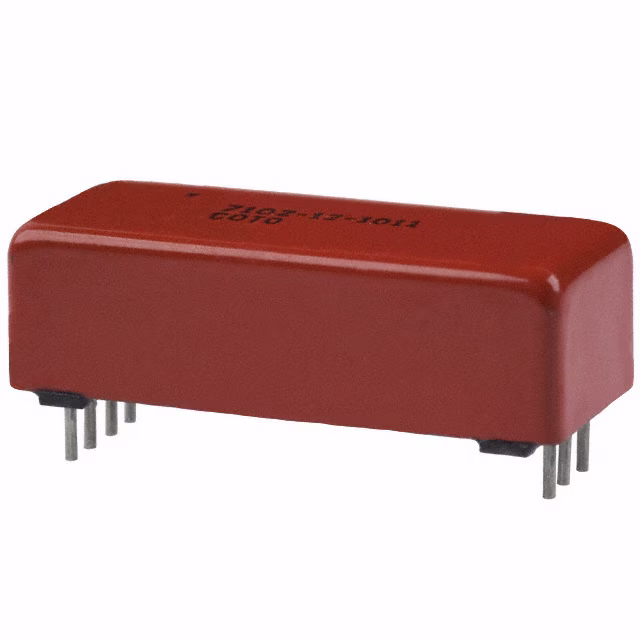

7102-12-1011 RELAY REED DPST 500MA 12V Coto Technology	4,026	-	询价单	数据表	7000	Bulk	Active	Through Hole	12VDC	500 mA	200VAC, 200VDC - Max	12 mA	-	Non Latching	Diode, Electrostatic Shield	DPST-NO (2 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.1 ms	1 VDC	1 ms
S1-05-2ADM RELAY REED TWIN N/O 1.5KV 5V Sensata Technologies, Inc.	2,211	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	500 mA	1000VDC - Max	20 mA	Rhodium (Rh)	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A) x 2	PC Pin	-	-40°C ~ 85°C	3.75 VDC	0.3 ms	0.5 VDC	0.75 ms
S1-2404D RELAY REED 4KV SPST 24V SIP W/DI Sensata Technologies, Inc.	3,426	-	询价单	数据表	S1	Bulk	Active	Through Hole	24VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	16 VDC	0.5 ms	1.25 VDC	1 ms
S1-2404 RELAY REED 4KV SPST 24V SIP Sensata Technologies, Inc.	1,419	-	询价单	数据表	S1	Bulk	Active	Through Hole	24VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	16 VDC	0.5 ms	1.25 VDC	1 ms
S1-2404M RELAY REED 4KV SPST 24V SIP SCRE Sensata Technologies, Inc.	1,558	-	询价单	数据表	S1	Bulk	Active	Through Hole	24VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	16 VDC	0.5 ms	1.25 VDC	1 ms
S1-12-B RELAY REED 1 N/C 1.5KV 12V Sensata Technologies, Inc.	2,886	-	询价单	数据表	S1	Bulk	Active	Through Hole	12VDC	500 mA	1000VDC - Max	6 mA	Rhodium (Rh)	Non Latching	-	SPST-NC (1 Form B)	PC Pin	-	-40°C ~ 85°C	9 VDC	-	1.2 VDC	-
S1-2404DM RELAY REED 4KV SPST 24V SIP W/DI Sensata Technologies, Inc.	4,268	-	询价单	数据表	S1	Bulk	Active	Through Hole	24VDC	1 A	300VAC, 350VDC - Max	24 mA	Rhodium (Rh)	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	16 VDC	0.5 ms	1.25 VDC	1 ms
3501-05-910 RELAY REED SPST 500MA 5V Coto Technology	4,177	-	询价单	数据表	3500	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	14.3 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	Sealed - Hermetically	-20°C ~ 85°C	3.8 VDC	0.1 ms	0.4 VDC	0.75 ms
S1-05-BD RELAY REED 1 N/C 1.5KV 5V Sensata Technologies, Inc.	3,127	-	询价单	数据表	S1	Bulk	Active	Through Hole	5VDC	500 mA	1000VDC - Max	6.4 mA	Rhodium (Rh)	Non Latching	Diode	SPST-NC (1 Form B)	PC Pin	-	-40°C ~ 85°C	3.75 VDC	-	0.5 VDC	-
S1-12-BM RELAY REED 1 N/C 1.5KV 12V Sensata Technologies, Inc.	4,426	-	询价单	数据表	S1	Bulk	Active	Through Hole	12VDC	500 mA	1000VDC - Max	6 mA	Rhodium (Rh)	Non Latching	EMI Shielded	SPST-NC (1 Form B)	PC Pin	-	-40°C ~ 85°C	9 VDC	-	1.2 VDC	-
DBR71205U RELAY REED SPST-NC 5KV 12V Sensata Technologies, Inc.	1,864	-	询价单	数据表	DB	Bulk	Active	Through Hole	12VDC	3 A	1000VAC, 1000VDC - Max	50 mA	Rhodium (Rh)	Non Latching	-	SPST-NC (1 Form B)	PC Pin	-	-20°C ~ 70°C	9 VDC	3 ms	1.25 VDC	2 ms

共 1567 条记录«上一页 1... 21 22 23 242526 27 28...79 下一页»
