STMicroelectronics|单个二极管 - 页 92

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	技术	电压 - 直流反向 (Vr)（最大值）	电压 - 正向 (Vf)（最大值）@ If	速度	反向恢复时间 (trr)	电流 - 反向漏电 @ Vr	电容 @ Vr, F	电流 - 平均整流（Io）	等级	认证	安装类型	供应商设备封装	工作温度 - 结点
STPSC6H065D DIODE SIL CARB 650V 6A TO220AC STMicroelectronics	958	-	询价单	数据表	-	TO-220-2	Tube	Active	SiC (Silicon Carbide) Schottky	650 V	1.75 V @ 6 A	No Recovery Time > 500mA (Io)	0 ns	60 µA @ 650 V	300pF @ 0V, 1MHz	6A	-	-	Through Hole	TO-220AC	-40°C ~ 175°C
SPV1512N DIODE GEN PURP 12V 16A 8VFQFPN STMicroelectronics	8,057	-	询价单	数据表	ECOPACK®	8-PowerVDFN	Tape & Reel (TR)	Active	Standard	12 V	140 mV @ 16 A	Standard Recovery >500ns, > 200mA (Io)	-	10 µA @ 12 V	-	16A	-	-	Surface Mount	8-VFQFPN (6x5)	-40°C ~ 150°C
SPV1540N DIODE GEN PURP 12V 16A 8VFQFPN STMicroelectronics	9,684	-	询价单	数据表	ECOPACK®	8-PowerVDFN	Tape & Reel (TR)	Active	Standard	12 V	140 mV @ 16 A	Standard Recovery >500ns, > 200mA (Io)	-	10 µA @ 12 V	-	16A	-	-	Surface Mount	8-VFQFPN (6x5)	-40°C ~ 150°C
FERD30M45D DIODE FERD 45V 30A TO220AC STMicroelectronics	6,247	-	询价单	数据表	ECOPACK®	TO-220-2	Tube	Active	FERD (Field Effect Rectifier Diode)	45 V	420 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.2 mA @ 45 V	-	30A	-	-	Through Hole	TO-220AC	175°C (Max)
STPS30S45CW DIODE SCHOTTKY 45V 30A TO-247 STMicroelectronics	8,185	-	询价单	数据表	*	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
STTH12T06DI DIODE GP 600V 12A TO220AC INS STMicroelectronics	548	-	询价单	数据表	-	TO-220-2 Insulated, TO-220AC	Tube	Active	Standard	600 V	2.95 V @ 12 A	Fast Recovery =< 500ns, > 200mA (Io)	20 ns	20 µA @ 600 V	-	12A	-	-	Through Hole	TO-220AC ins	-40°C ~ 175°C
STTH30RQ06DY DIODE GEN PURP 600V 30A TO220AC STMicroelectronics	998	-	询价单	数据表	-	TO-220-2	Tube	Active	Standard	600 V	2.95 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	55 ns	40 µA @ 600 V	-	30A	Automotive	AEC-Q101	Through Hole	TO-220AC	-40°C ~ 175°C

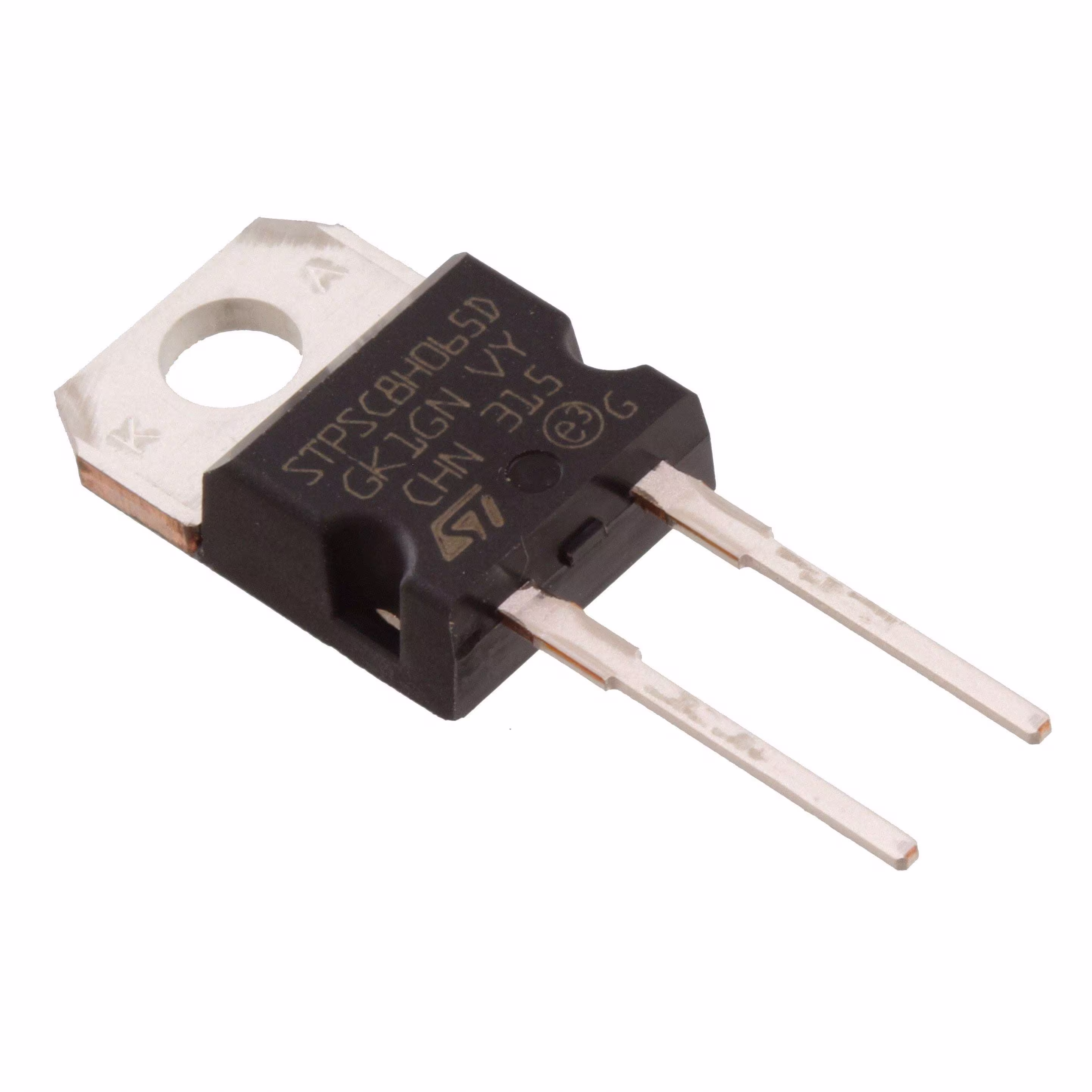

STPSC8H065D DIODE SIL CARB 650V 8A TO220AC STMicroelectronics	794	-	询价单	数据表	-	TO-220-2	Tube	Active	SiC (Silicon Carbide) Schottky	650 V	1.75 V @ 8 A	No Recovery Time > 500mA (Io)	0 ns	80 µA @ 650 V	414pF @ 0V, 1MHz	8A	-	-	Through Hole	TO-220AC	-40°C ~ 175°C
STTH30M06SPF DIODE GEN PURP 600V 30A TO3PF STMicroelectronics	876	-	询价单	数据表	-	TO-3P-3 Full Pack	Tube	Active	Standard	600 V	3.8 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	60 µA @ 600 V	-	30A	-	-	Through Hole	TO-3PF	175°C (Max)
STTH30R04DY DIODE GEN PURP 400V 30A TO220AC STMicroelectronics	772	-	询价单	数据表	-	TO-220-2	Tube	Active	Standard	400 V	1.55 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	100 ns	15 µA @ 400 V	-	30A	Automotive	AEC-Q101	Through Hole	TO-220AC	-40°C ~ 175°C

共 940 条记录«上一页 1... 88 89 90 919293 94 下一页»
