单个二极管
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 电压 - 直流反向 (Vr)（最大值） | 电压 - 正向 (Vf)（最大值）@ If | 速度 | 反向恢复时间 (trr) | 电流 - 反向漏电 @ Vr | 电容 @ Vr, F | 电流 - 平均整流（Io） | 等级 | 认证 | 安装类型 | 供应商设备封装 | 工作温度 - 结点 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA3X10000LDIODE GP 200V 100MA SMINI3-F1 Panasonic Electronic Components |
4,266 | - |
|
数据表 |
- | SC-85 | Tape & Reel (TR) | Obsolete | Standard | 200 V | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 60 ns | 1 µA @ 200 V | 3pF @ 0V, 1MHz | 100mA | - | - | Surface Mount | SMini3-F1 | 150°C (Max) |
|
DB2L33400L1DIODE SCHOTTKY 30V 500MA 0201 Panasonic Electronic Components |
2,519 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 30 V | 540 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 3.5 ns | 45 µA @ 30 V | 10pF @ 10V, 1MHz | 500mA | - | - | Surface Mount | 0201 (0603 Metric) | 150°C (Max) |
|
MA2C0290BFDIODE GEN PURP 6V 50MA DO34-A1 Panasonic Electronic Components |
9,477 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 6 V | 1.1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 6 V | - | 50mA | - | - | Through Hole | DO34-A1 | 150°C (Max) |
|
MA2C029QAFDIODE GEN PURP 6V 50MA DO34-A1 Panasonic Electronic Components |
4,285 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 6 V | 2.4 V @ 3 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 6 V | - | 50mA | - | - | Through Hole | DO34-A1 | 150°C (Max) |
|
MA2C029TAFDIODE GEN PURP 6V 70MA DO34-A1 Panasonic Electronic Components |
6,993 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 6 V | 1.92 V @ 3 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 6 V | - | 70mA | - | - | Through Hole | DO34-A1 | 150°C (Max) |
|
MA2C029WAFDIODE GEN PURP 6V 100MA DO34-A1 Panasonic Electronic Components |
4,114 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 6 V | 1.28 V @ 3 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 6 V | - | 100mA | - | - | Through Hole | DO34-A1 | 150°C (Max) |
|
MA2C16700EDIODE GEN PURP 75V 100MA DO34-A1 Panasonic Electronic Components |
5,590 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 75 V | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 2pF @ 0V, 1MHz | 100mA | - | - | Through Hole | DO34-A1 | 200°C (Max) |
|
MA2C17800EDIODE GEN PURP 40V 200MA DO34-A1 Panasonic Electronic Components |
5,608 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 40 V | 1.1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 35 V | 4pF @ 0V, 1MHz | 200mA | - | - | Through Hole | DO34-A1 | 200°C (Max) |
|

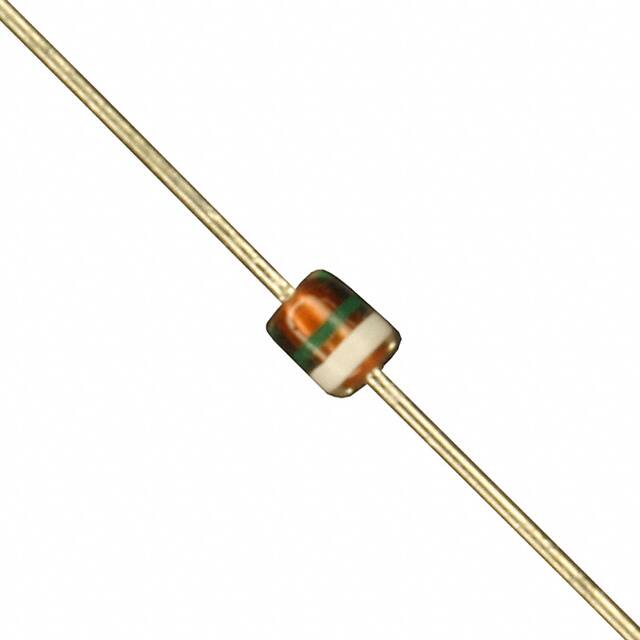

MA2C18500EDIODE GP 200V 200MA DO34-A1 Panasonic Electronic Components |
9,270 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 200 V | 1.2 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 200 V | - | 200mA | - | - | Through Hole | DO34-A1 | 175°C (Max) |
|
|
MA2C18800EDIODE GP 200V 200MA DO34-A1 Panasonic Electronic Components |
3,529 | - |
|
数据表 |
- | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | Standard | 200 V | 1.2 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 60 ns | 200 nA @ 200 V | 1pF @ 0V, 1MHz | 200mA | - | - | Through Hole | DO34-A1 | 175°C (Max) |
