按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLC-N1TFN-B3TW-AISW SILENT PB PGM RGB LED 15*15MM |
841 | - |
|
数据表 |
PLC | Tray | Active | Through Hole | - | Off-Mom | - | - | - | - | Square, Button | SPST-NO | - | - | - | LED, Blue/Green/Red | -20°C ~ 70°C | - | 1.7, 1.9, 3 VDC | PC Pin |
|
|
PLC-N1TFN-BTW-AISW SILENT PB PGM RGB LED 15*15MM |
652 | - |
|
数据表 |
PLC | Tray | Active | Through Hole | - | Off-Mom | - | - | - | - | Square, Button | SPST-NO | - | - | - | LED, Blue/Green/Red | -20°C ~ 70°C | - | 1.7, 1.9, 3 VDC | PC Pin |
|
8161SHAV2QE2SWITCH PUSHBUTTON SPDT 6A 120V |
0 | - |
|
数据表 |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | On-On | 6A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
8168SHV3QE2SWITCH PUSHBUTTON SPDT 6A 120V |
0 | - |
|
数据表 |
8060 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 6A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
8551J82ZQE22SWITCH PUSH SPST-NO 3A 120V |
0 | - |
|
数据表 |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | Off-Mom | 3A (AC/DC) | 120 V | Rectangular - 15.24mm x 12.70mm | 28 V | Square, Button | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
EB2011-BA/AT512MLIGHT TOUCH MINIATURE PUSHBUTTON |
0 | - |
|
数据表 |
EB | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC) | 125 V | Circular - 6.50mm Dia | - | Round, Button | SPDT | - | Black | - | - | -10°C ~ 70°C | - | - | Solder Lug |
|
|
PVA6LRP21101SWITCH PB SPST 2A 36V |
0 | - |
|
数据表 |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-On | 2A (DC) | - | Circular - 16.00mm Dia | 36 V | Round, Button | SPST | - | Black | - | LED, White | -20°C ~ 70°C | IP67 - Dust Tight, Waterproof | 3 VDC | Solder Lug |
|

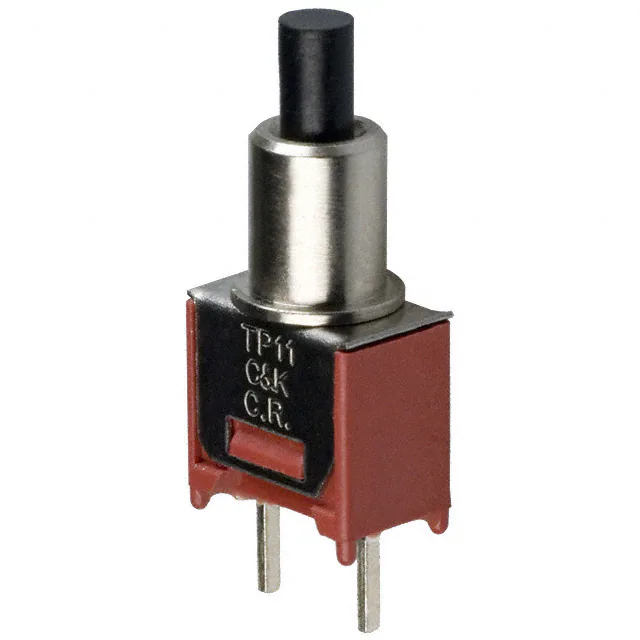

TP11SH8CQEPUSHBUTTON |
500 | - |
|
数据表 |
TP | Bulk | Active | Through Hole | Standard | Off-Mom | 1A (AC/DC) | 120 V | - | 28 V | Round, Plunger | SPST-NO | - | Black | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
PLB-N1PRGB-RA1TW-P2KNSW PB SPDT RGB LED 16MM DIA |
1,564 | - |
|
数据表 |
PLB | Tray | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLB-N1PRGB-ATW-PKTSW PB SPDT RGB LED 15*15MM |
524 | - |
|
数据表 |
PLB | Tray | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLB-N1PNR-ATW-P1KNSW PB SPDT RED LED 15*15MM |
440 | - |
|
数据表 |
PLB | Tray | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SERUAUOASERUAUOA |
3,285 | - |
|
数据表 |
SER | Bulk | Active | Through Hole | Keyswitch | On-Mom | 10mA (DC) | - | - | 24 V | Plunger for Cap | SPDT | - | - | - | - | -25°C ~ 85°C | - | - | PC Pin |
|
|
B3J 5000MKEY SWITCH |
890 | - |
|
数据表 |
B3J | Box | Active | Through Hole | Keyswitch, Illuminated | Off-Mom | 50mA (DC) | - | - | 24 V | Square, Button | SPST-NO | No Marking | Gray, Light | - | LED, Red/Yellow | -25°C ~ 70°C | - | 2 VDC | PC Pin |
|
8168S1H9AV2BE3SWITCH PUSH SPDT 0.4VA 20V |
0 | - |
|
数据表 |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Button | SPDT | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
TP11SHCGESWITCH PUSH SPST-NO 1A 120V |
0 | - |
|
数据表 |
TP | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 1A (AC/DC) | 120 V | Circular - 4.95mm Dia | 28 V | Round, Plunger | SPST-NO | No Marking | Black | Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
2-1825097-3SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 | - |
|
数据表 |
TP | Bulk | Obsolete | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger, Flush | SPDT | No Marking | Black | - | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
FHNEBBWNSWITCH PB SPST 2A 48VDC |
0 | - |
|
数据表 |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 12.00mm Dia | 48 V | Round, Button | SPST | - | Black | - | LED, White | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | 3 VDC | Solder Lug |
|
|
FHNBBBYNSWITCH PB SPST 2A 48VDC |
0 | - |
|
数据表 |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 12.00mm Dia | 48 V | Round, Button, Flush | SPST | - | Black | - | LED, Yellow | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | 2.1 VDC | Solder Lug |
|
|
FHNEBBGNSWITCH PB SPST 2A 48VDC |
0 | - |
|
数据表 |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 12.00mm Dia | 48 V | Round, Button | SPST | - | Black | - | LED, Green | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | 3.3 VDC | Solder Lug |
|
|
FHNEBBBNSWITCH PB SPST 2A 48VDC |
0 | - |
|
数据表 |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 12.00mm Dia | 48 V | Round, Button | SPST | - | Black | - | LED, Blue | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | 3.3 VDC | Solder Lug |
