按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSPDF11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TSP | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
TP33W088000SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TP | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Overtravel | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
PV2H240SSGSWITCH PB SPST-NO 2A 48V |
0 | - |
|
数据表 |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button | SPST-NO | - | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder Lug |
|
8531SCQE2SWITCH PUSH SPST-NO 1A 120V |
25 | - |
|
数据表 |
8500 | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 1A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Plunger | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
MB2011SS1W01-BASWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|

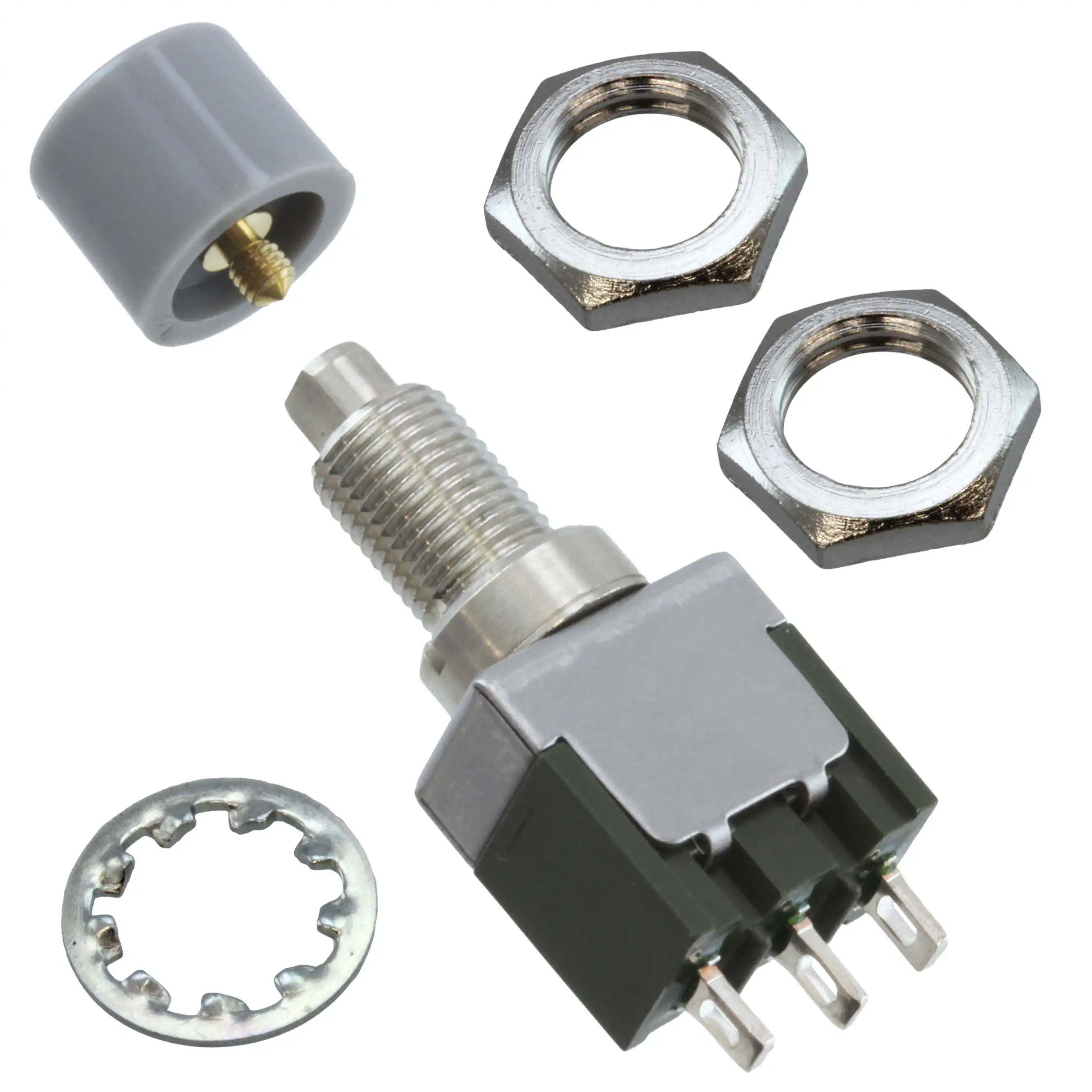

MB2011SS1W01-CHSWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Gray | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
LP11OA1NCSRGBSWITCH PB SPST-NO 0.1A 12V |
0 | - |
|
数据表 |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | Off-Mom | 100mA (DC) | - | - | 12 V | Square, Button | SPST-NO | - | Clear | - | LED, Blue/Green/Red | -40°C ~ 85°C | - | 1.95, 3.3, 3.3 VDC | PC Pin |
|
|
LP11OA1NASRGBSWITCH PB SPST-NO 0.1A 12V |
0 | - |
|
数据表 |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | Off-Mom | 100mA (DC) | - | - | 12 V | Square, Button | SPST-NO | - | Clear | - | LED, Blue/Green/Red | -40°C ~ 85°C | - | 1.95, 3.3, 3.3 VDC | PC Pin |
|
|
LP11OA1NBSRGBSWITCH PB SPST-NO 0.1A 12V |
0 | - |
|
数据表 |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | Off-Mom | 100mA (DC) | - | - | 12 V | Square, Button | SPST-NO | - | Clear | - | LED, Blue/Green/Red | -40°C ~ 85°C | - | 2.1, 3.2, 3.2 VDC | PC Pin |
|

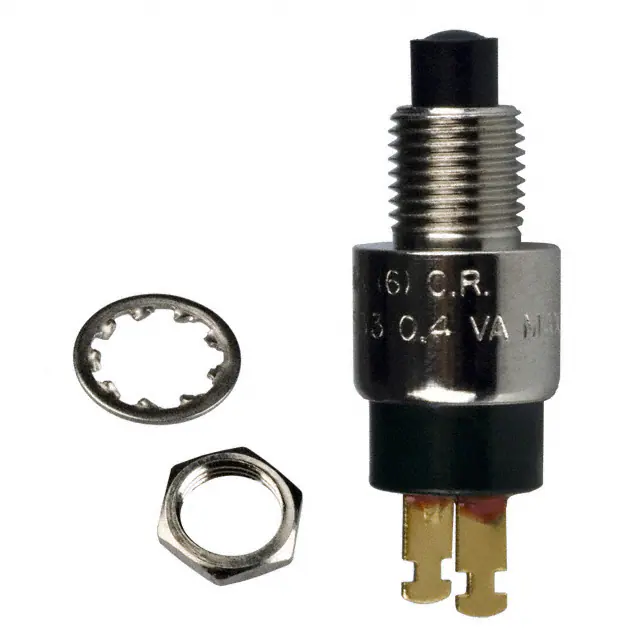

8533MZBE2SWITCH PUSH SPST-NC 0.4VA 20V |
0 | - |
|
数据表 |
8500 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NC | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
2-1571990-5SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TSP | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
EB2065P-BASWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
EB | Bulk | Active | Panel Mount, Rear | Standard | On-On | 3A (AC) | 125 V | Circular - 6.35mm Dia | - | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | PC Pin |
|
|
EB2065-BESWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
EB | Bulk | Active | Panel Mount, Rear | Standard | On-On | 3A (AC) | 125 V | Circular - 6.35mm Dia | - | Round, Button | SPDT | No Marking | Yellow | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Lug |
|
|
EB2065P-BBSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
EB | Bulk | Active | Panel Mount, Rear | Standard | On-On | 3A (AC) | 125 V | Circular - 6.35mm Dia | - | Round, Button | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | PC Pin |
|
|
PV1F240BBGSWITCH PUSHBUTTON SPST-NO 2A 48V |
0 | - |
|
数据表 |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 48 V | Round, Button, Flush | SPST-NO | No Marking | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
38BT-0-V-2-NSWITCH PUSH SPST-NO 1A 120V |
0 | - |
|
数据表 |
38BT | Bulk | Active | Through Hole | Standard | Off-Mom | 1A (AC/DC) | 120 V | - | 28 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
1.10.001.252/0301MOMENTARY PUSHBUTTON OPAQUE RED |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38BT-0-H-3-NSWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
38BT | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
EB2061-C-J22AFSWITCH PUSHBUTTON DPDT 3A 125V |
0 | - |
|
数据表 |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC) | 125 V | Rectangular - 15.00mm x 12.50mm | - | Square, Button | DPDT | No Marking | Red | Epoxy Sealed Terminals | LED, Green | -10°C ~ 70°C | - | 2.25 VDC | Solder Lug |
|
|
EB2061-F-J42AFSWITCH PUSHBUTTON DPDT 3A 125V |
0 | - |
|
数据表 |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC) | 125 V | Rectangular - 15.00mm x 12.50mm | - | Square, Button | DPDT | No Marking | Green | Epoxy Sealed Terminals | LED, Green | -10°C ~ 70°C | - | 2.25 VDC | Solder Lug |
