按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

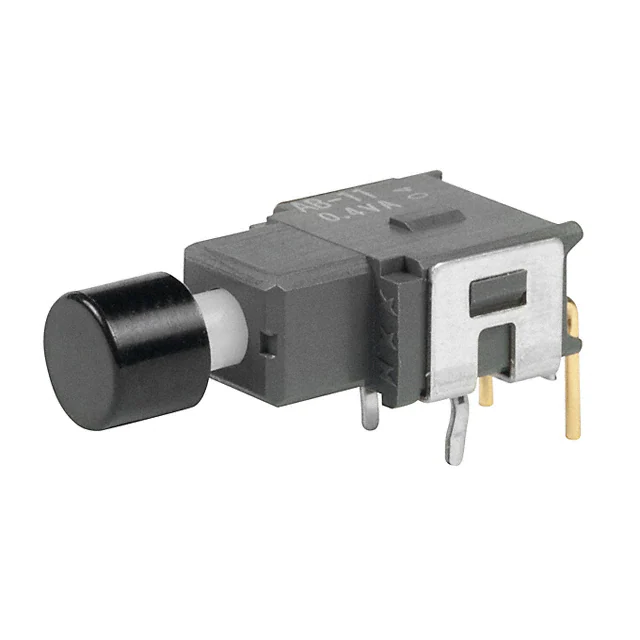

AB11AH-FASWITCH PUSH SPST-NO 0.4VA 28V |
701 | - |
|
数据表 |
AB | Tray | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPST-NO | No Marking | Black | Sealed - Fully | - | -30°C ~ 85°C | - | - | PC Pin |
|
PV2H240BBSWITCH PUSHBUTTON SPST-NO 2A 48V |
805 | - |
|
数据表 |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button | SPST-NO | No Marking | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder Lug |
.jpg)
|
EP12SD1SAPESWITCH PUSH SPDT 0.4VA 20V |
1,716 | - |
|
数据表 |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP57 - Dust Protected, Waterproof | - | Gull Wing |
|
96-323.837SWITCHING ELEMENT SA 1DC PCB GOL |
617 | - |
|
数据表 |
96 | Bulk | Active | Panel Mount, Front | Standard | - | - | - | - | - | Square, Button (Not Included) | SPDT | No Marking | - | - | - | - | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
EP11SD1AVBESWITCH PUSH SPST-NO 0.4VA 20V |
1,600 | - |
|
数据表 |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP57 - Dust Protected, Waterproof | - | PC Pin |
|
8R1021-N-ZSWITCH PUSHBUTTON SPDT 3A 125V |
603 | - |
|
数据表 |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC) | 125 V | Circular - 6.50mm Dia | - | Plunger for Cap | SPDT | No Marking | - | - | - | -20°C ~ 85°C | - | - | Solder Lug |
|
PV1S64011SWITCH PUSHBUTTON SPST-NO 2A 48V |
16,154 | - |
|
数据表 |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 48 V | Round, Button, Domed | SPST-NO | No Marking | Black | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
K12C 1 2.5NSWITCH PUSH SPST-NO 0.1A 30V |
7,756 | - |
|
数据表 |
K12 | Bulk | Active | Through Hole | Keyswitch | Off-Mom | 100mA (DC) | - | - | 30 V | Round, Button, Rubber Cap | SPST-NO | No Marking | Black | Tactile Feedback | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
M22FP-MSF11-E230-W-
FLAT PB-MOM-1A1B-LED-WHITE- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | O | White | - | LED, White | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|

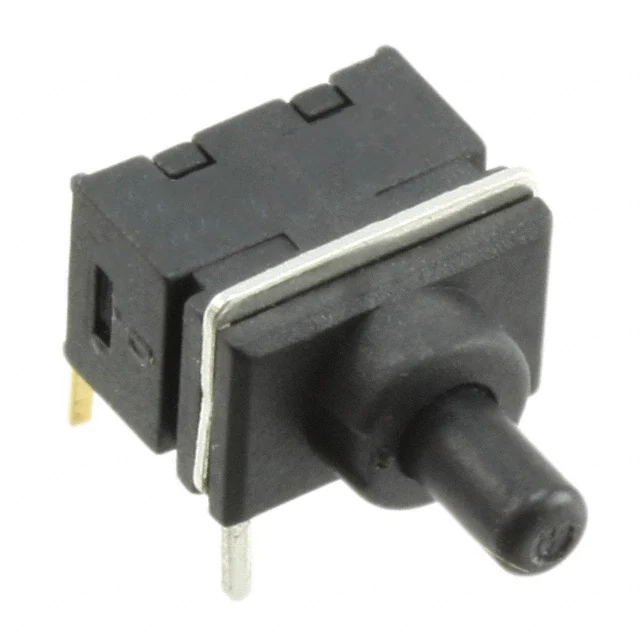

FP11SPA1B1TP00SWITCH PUSH SPST-NO 0.4VA 28V |
37,485 | - |
|
数据表 |
FP | Tray | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPST-NO | No Marking | Black | - | - | -20°C ~ 80°C | - | - | PC Pin |
|
TP33W008000SWITCH PUSH SPST-NO 0.4VA 20V |
4,034 | - |
|
数据表 |
TP | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | Power Symbol | Black | Sealed | - | -30°C ~ 85°C | - | - | PC Pin |
|
M22FP-MSF11-E230-Y-FLAT PB-MOM-1A1B-LED-YELLOW- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | I | Yellow | - | LED, Yellow | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
|
NE18 2U EE 6AMPSWITCH PUSHBUTTON DPDT 6A 250V |
6,196 | - |
|
数据表 |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | On-On | 6A (AC/DC) | 250 V | - | 100 V | Plunger for Cap | DPDT | No Marking | - | - | - | - | Dust Proof | - | PC Pin |
|
M22FP-MSB11-E230-G-
FLAT PB-MOM-1A1B-LED-GREEN- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | O | Green | - | LED, Green | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|

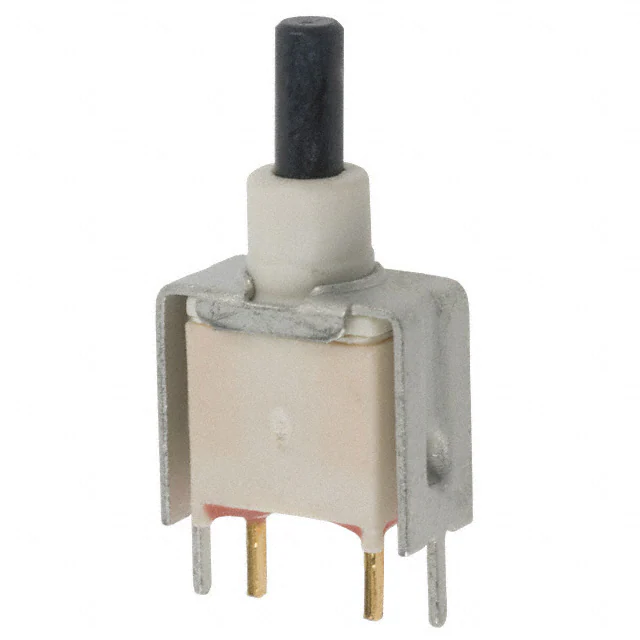

EP11SD1V3BESWITCH PUSH SPST-NO 0.4VA 20V |
235 | - |
|
数据表 |
EP | Bulk | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP57 - Dust Protected, Waterproof | - | PC Pin |
|
GPB553B2L01BUSWITCH PUSHBUTTON SPST 10A 14V |
4,632 | - |
|
数据表 |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | Off-On | 10A (DC) | - | Circular - 22.00mm Dia | 14 V | Round, Button | SPST | No Marking | Blue | - | LED, Blue | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | 12 VDC | Quick Connect - 0.250" (6.3mm) |
|
M22FP-MSF02-E230-BLFLAT PB-MOM-2B-LED-BLUE |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | No Marking | Blue | - | LED, Blue | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
PV2F640SSSWITCH PUSH SPST-NO 2A 48V |
777 | - |
|
数据表 |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Flush | SPST-NO | No Marking | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|

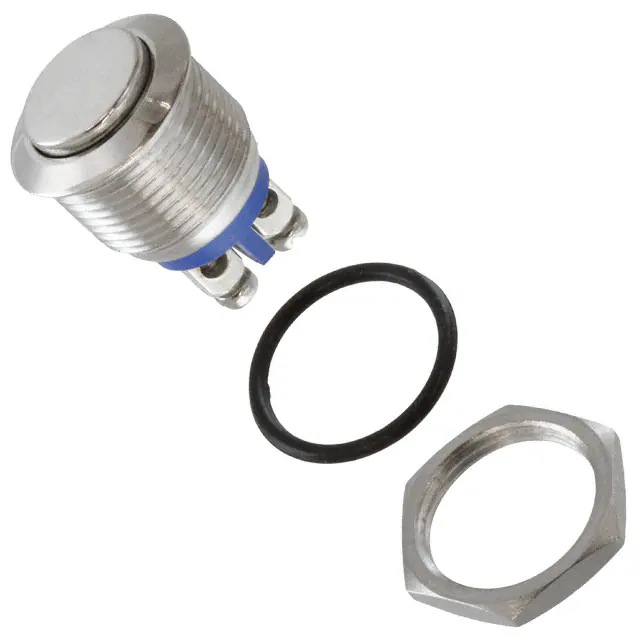

PV2H640SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
484 | - |
|
数据表 |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button | SPST-NO | No Marking | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|

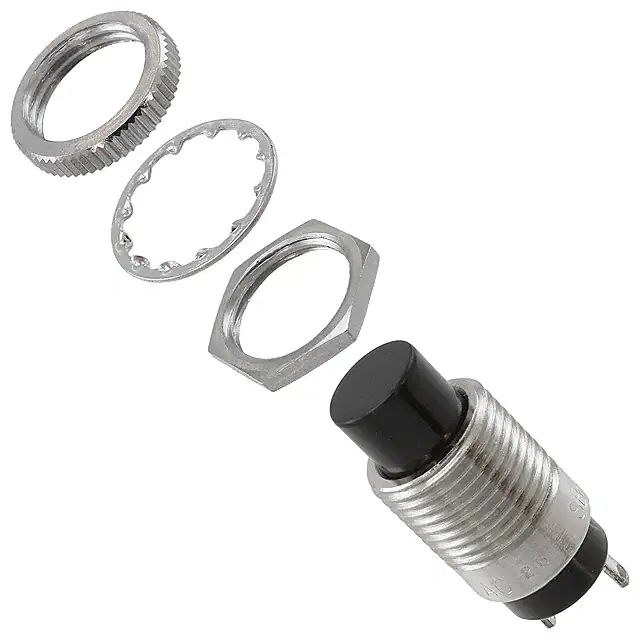

SB4011NOMSWITCH PUSH SPST-NO 3A 125V |
840 | - |
|
数据表 |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 3A (AC), 2A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Plunger for Cap | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Lug |
