按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP2-1FC4-AWSWITCH PUSHBUTTON SPDT 0.4VA 28V |
8,804 | - |
|
数据表 |
CFP2 | Tray | Active | Through Hole, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPDT | No Marking | - | Washable | - | -40°C ~ 85°C | - | - | PC Pin |
|
700SP7B10M2QEHSWITCH PUSHBUTTON SPDT 3A 120V |
1,218 | - |
|
数据表 |
700 | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Plunger | SPDT | No Marking | White | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
GPB527C202BBSWITCH PUSH SPST-NO 10A 125V |
4,382 | - |
|
数据表 |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | Off-Mom | 10A (AC/DC) | 125 V | Circular - 20.20mm Dia | 28 V | Round, Button | SPST-NO | No Marking | Black | - | - | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | Quick Connect - 0.187" (4.7mm) |
|
RP8100B2M1CEBLKBLKNILSWITCH PB SPST-NO 0.125A 125V |
2,908 | - |
|
数据表 |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | No Marking | Black | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
RP8100B2M1CEBLKBLUNILSWITCH PB SPST-NO 0.125A 125V |
580 | - |
|
数据表 |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | No Marking | Blue | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
30-601 BLKSWITCH PUSH SPST-NO 0.15A 5V |
247 | - |
|
数据表 |
30 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 150mA (DC) | - | Circular - 6.75mm Dia | 5 V | Round, Plunger | SPST-NO | No Marking | Black | - | - | -40°C ~ 85°C | - | - | Solder Lug |
.jpg)
|
EP11SD1SAPESWITCH PUSH SPST-NO 0.4VA 20V |
9,617 | - |
|
数据表 |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP57 - Dust Protected, Waterproof | - | Gull Wing |
|
ESANMD2GBXSWITCH PB SPST-NO 125MA 125V |
718 | - |
|
数据表 |
ES | Tray | Active | Panel Mount, Front | Standard | Off-Mom | 125mA (AC/DC) | 125 V | Circular - 13.60mm Dia | 50 V | Round, Button | SPST-NO | No Marking | Black | - | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|

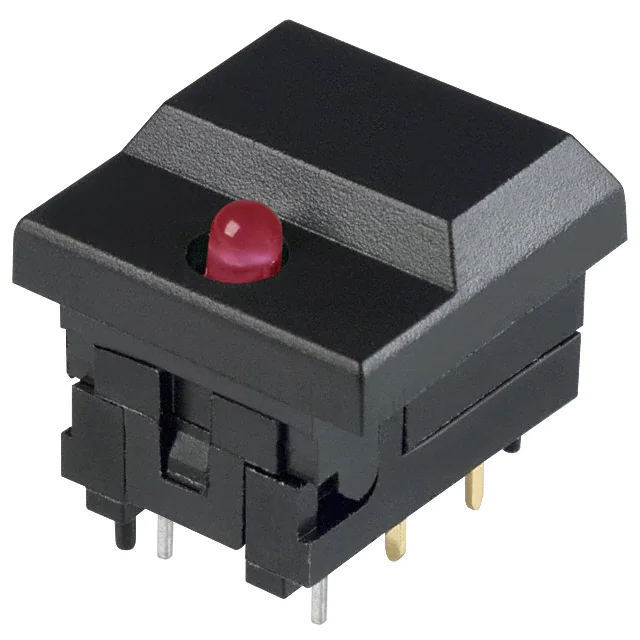

5511MBLKREDSWITCH PUSH SPDT 0.3A 12V |
813 | - |
|
数据表 |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | On-Mom | 300mA (DC) | - | - | 12 V | Square, Button | SPDT | No Marking | Black | - | LED, Red | -25°C ~ 65°C | - | 2.2 VDC | PC Pin |
|
FB15ANEP2SWITCH PUSH SPST-NO 0.5A 125V |
3,933 | - |
|
数据表 |
FB | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 500mA (AC) | 125 V | Circular - 5.30mm Dia | - | Plunger for Cap | SPST-NO | No Marking | White | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Turret |
|

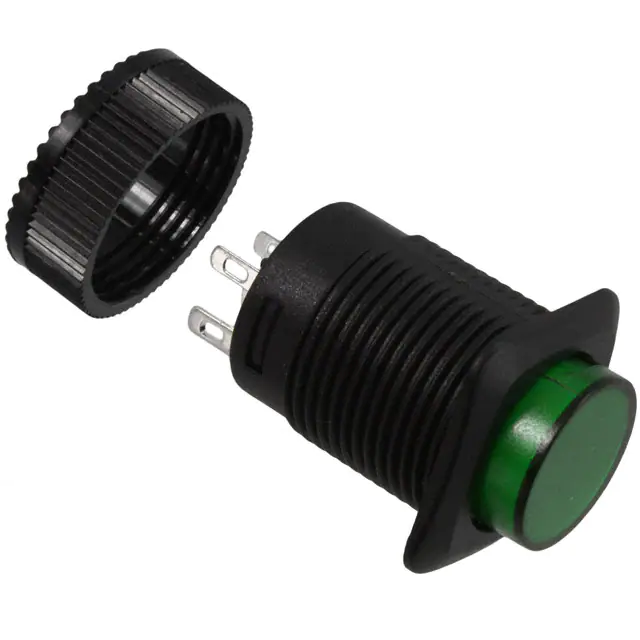

RP3508ABLKGRNGRNNSSWITCH PUSH SPST-NO 3A 125V |
4,565 | - |
|
数据表 |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | Off-Mom | 3A (AC) | 125 V | Circular - 16.00mm Dia | - | Round, Button | SPST-NO | No Marking | Green | - | LED, Green | 0°C ~ 65°C | - | 2.2 VDC | Solder Lug |
|
800BWSP9SM6RESWITCH PUSH SPST-NO 0.4VA 20V |
4,317 | - |
|
数据表 |
800B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Gull Wing |
|
M22FP-MSF20-E230-WFLAT PB-MOM-2A-LED-WHITE |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | No Marking | White | - | LED, White | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22FP-MSB02-E230-R-
FLAT PB-MOM-2B-LED-RED- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | O | Red | - | LED, Red | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22XP-MSF02-E230-GEXT PB-MOM-2B-LED-GREEN |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button | DPST | No Marking | Green | - | LED, Green | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22XP-MSB02-E230-WEXT PB-MOM-2B-LED-WHITE |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button | DPST | No Marking | White | - | LED, White | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22XP-MSF02-E230-WEXT PB-MOM-2B-LED-WHITE |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button | DPST | No Marking | White | - | LED, White | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22FP-MSF11-E230-R-FLAT PB-MOM-1A1B-LED-RED- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | I | Red | - | LED, Red | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22FP-MSB20-E230-BL-FLAT PB-MOM-2A-LED-BLUE- |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | DPST | I | Blue | - | LED, Blue | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
|
M22XP-MSB11-E230-REXT PB-MOM-1A1B-LED-RED |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button | DPST | No Marking | Red | - | LED, Red | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 230 VAC | Screw Terminal |
