按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1-1B-DC-3HEAVY DUTY-NO LARGE ACTUATOR |
685 | - |
|
数据表 |
PA1 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 15A (DC) | - | Circular - 16.00mm Dia | 12 V | Round, Button, Rubber Cap | SPST-NO | No Marking | Black | - | - | - | - | - | Screw Terminal |
|
FB15ANEP4-HBSWITCH PUSH SPST-NO 0.4VA 28V |
0 | - |
|
数据表 |
FB | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | Circular - 5.30mm Dia | 28 V | Round, Button | SPST-NO | No Marking | White | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Turret |
|
AB11BWSWITCH PUSH SPST-NO 0.4VA 28V |
0 | - |
|
数据表 |
AB | Tube | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPST-NO | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | Wire Wrap |
|
H8303ABBR7PUSH BUTTON SWITCH LIT 12V RED |
0 | - |
|
数据表 |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Off | 12A (AC) | 250 V | Rectangular - 19.30mm x 12.90mm | - | Rectangular, Button | SPST | No Marking | Red | - | Incandescent, Red | - | IP40 | 12 VDC | Quick Connect - 0.187" (4.7mm) |
|
AB15AWSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
AB | Tube | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPDT | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | Wire Wrap |
|
TSPD11CGSRA0SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TSP | Bulk | Obsolete | Surface Mount, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | Gull Wing |
|
|
BB15AB-FASWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Tray | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Black | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|

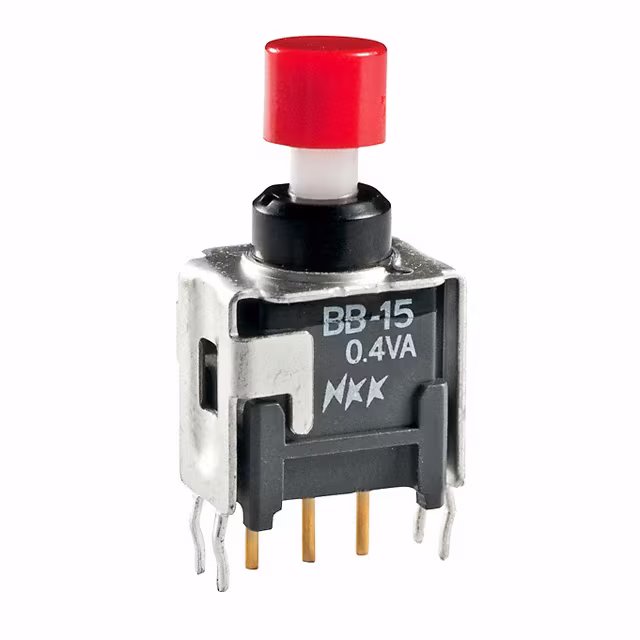

BB15AB-FCSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Tray | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Red | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB15AB-FBSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Bulk | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | White | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB16AB1SWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Bulk | Active | Through Hole | Standard | On-On | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPDT | No Marking | White | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
GPB548DL05BRSWITCH PUSH |
562 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SB4011NCHC-2B3 AMP MOMENTARY PUSHBUTTON |
0 | - |
|
数据表 |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC), 2A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Round, Button | SPST-NC | - | White | - | - | -10°C ~ 70°C | - | - | Solder Lug |
|
NE18 2A EE SN L 6AMPSWITCH PUSHBUTTON DPST 6A 250V |
105 | - |
|
数据表 |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | Off-On | 6A (AC/DC) | 250 V | - | 100 V | Plunger for Cap | DPST | No Marking | - | - | - | - | Dust Proof | - | PC Pin |
|
|
BB15AB-HCSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Bulk | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Red | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
AB11AB1SWITCH PUSH SPST-NO 0.4VA 28V |
0 | - |
|
数据表 |
AB | Bulk | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPST-NO | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB16AW-FASWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Box | Active | Through Hole | Standard | On-On | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Black | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB15AV1-FASWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Box | Active | Through Hole, Right Angle, Vertical | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Black | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB15AH-HASWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Tray | Active | Through Hole, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | Black | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
AB15AB1SWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
AB | Bulk | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Plunger for Cap | SPDT | No Marking | White | Sealed - Fully | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
BB15AH-HBSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
BB | Tray | Active | Through Hole, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | SPDT | No Marking | White | Antistatic | - | -30°C ~ 85°C | - | - | PC Pin |
