按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25SKW035D-JDSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
150 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | - | 30 V | Square, Button | DPDT | No Marking | Clear (Amber Filter/Diffuser) | Stainless Steel | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|
G3B25AHSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
232 | - |
|
数据表 |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Plunger | DPDT | No Marking | Gray | Process Sealed | - | -30°C ~ 85°C | - | - | Gull Wing |
|
|
LB15RKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
24 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | Rectangular - 22.40mm x 16.20mm | 28 V | Plunger for Cap | SPDT | No Marking | - | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
G3B25AB-S-YASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
860 | - |
|
数据表 |
G3B | Tube | Active | Surface Mount | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | DPDT | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | Gull Wing |
|
YB15CKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,866 | - |
|
数据表 |
YB | Tray | Active | Panel Mount, Front | Standard | On-Mom | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Round, Button | SPDT | No Marking | White (White Filter/Diffuser) | Stainless Steel | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
UB15SKG035D-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
474 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Process Sealed | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|
|
UB15SKG035D-JDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear (Amber Filter/Diffuser) | Process Sealed | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|
HB15SKW01-5F-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
631 | - |
|
数据表 |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | On-Mom | 100mA (AC/DC) | 30 V | Circular - 8.00mm Dia | 30 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | - | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | Solder Lug |
|

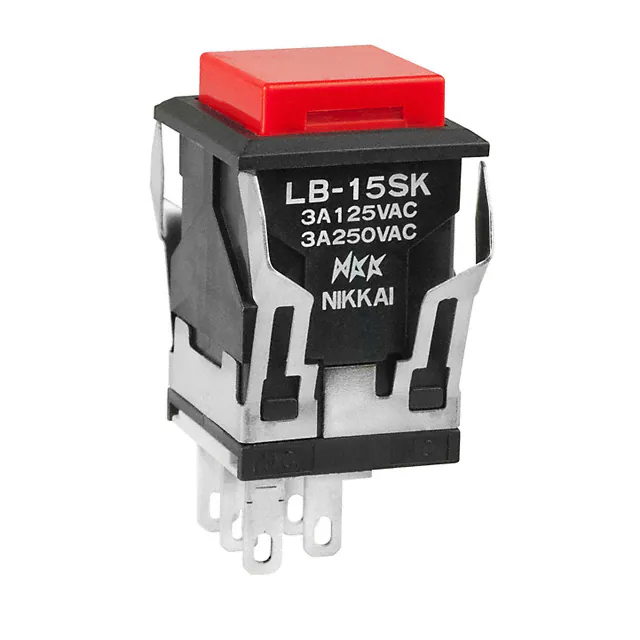

LB15SKW01-CSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
10 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Red | - | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
UB15SKG035C-CBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
7 | - |
|
数据表 |
UB | Bulk | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Red (White Filter/Diffuser) | Process Sealed | LED, Red | -25°C ~ 50°C | - | 1.85 VDC | PC Pin |
