按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
38GWSP8V2RTSWITCH PUSH SUBMINI SPDT,O-O,VB, Grayhill Inc. |
0 | - |
|
数据表 |
38G | Bulk | Active | Through Hole | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPDT | No Marking | Black | Sealed - Fully | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
|
38DSP11B10M1QTPB,SPDT,O-N-O,T,SL,LF Grayhill Inc. |
0 | - |
|
数据表 |
38D | Bulk | Active | Panel Mount, Rear | Standard | On-On | 6A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | - | - | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
38CSP7B11M1GTSWITCH PUSHBUTTON SPDT 3A 125V Grayhill Inc. |
0 | - |
|
数据表 |
38C | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 3A (AC/DC) | 125 V | - | 28 V | Round, Plunger | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
38DSP11B20V2RTSWITCH PUSHBUTTON SPDT 0.4VA 20V Grayhill Inc. |
0 | - |
|
数据表 |
38D | Bulk | Active | Through Hole | Standard | On-On | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPDT | No Marking | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
38GWSP9V2RTSWITCH PUSH SPST-NO 0.4VA 20V Grayhill Inc. |
0 | - |
|
数据表 |
38G | Bulk | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | Black | Sealed - Fully | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
39-424 BLKSWITCH PUSH SPST-NO 0.15A 28V Grayhill Inc. |
0 | - |
|
数据表 |
39 | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 150mA (DC) | - | Circular - 4.37mm Dia | 28 V | Round, Plunger | SPST-NO | No Marking | Black | Overtravel | - | -40°C ~ 85°C | - | - | PC Pin |
|

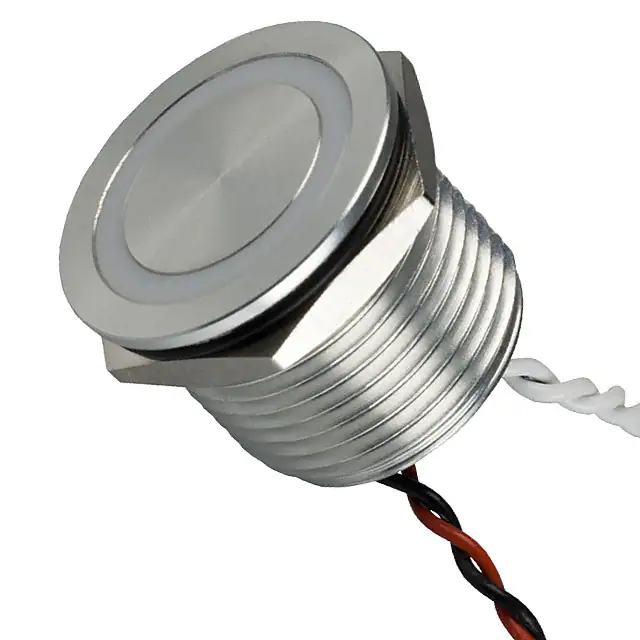

37FBR1-AAW1121NSWITCH PUSH SPST-NO 0.15A 24V Grayhill Inc. |
0 | - |
|
数据表 |
37F | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | Off-Mom | 150mA (AC/DC) | 24 V | - | 24 V | Round, Button, Flush | SPST-NO | No Marking | Natural | Sealed - Fully | LED, Red | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | 12 VDC | Wire Leads |
|

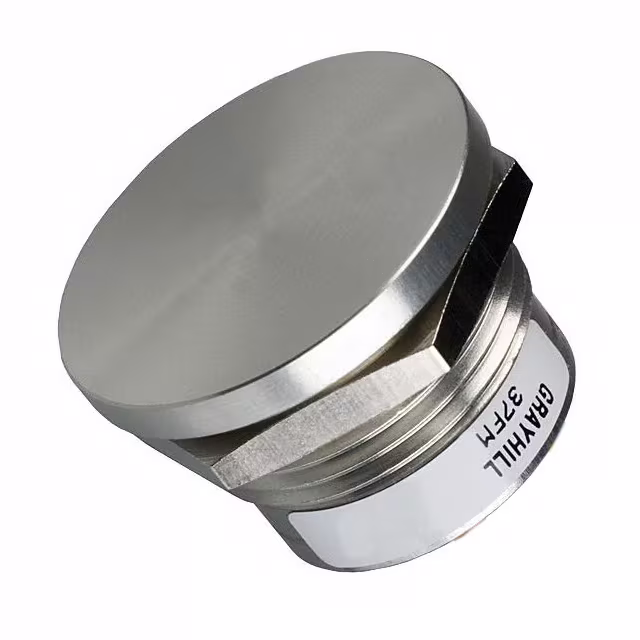

37FMA1-AAP1NSWITCH PUSH SPST-NO 0.2A 24V Grayhill Inc. |
0 | - |
|
数据表 |
37F | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | Off-Mom | 200mA (AC/DC) | 24 V | - | 24 V | Round, Button, Flush | SPST-NO | No Marking | Natural | Sealed - Fully | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | PC Pin |
|

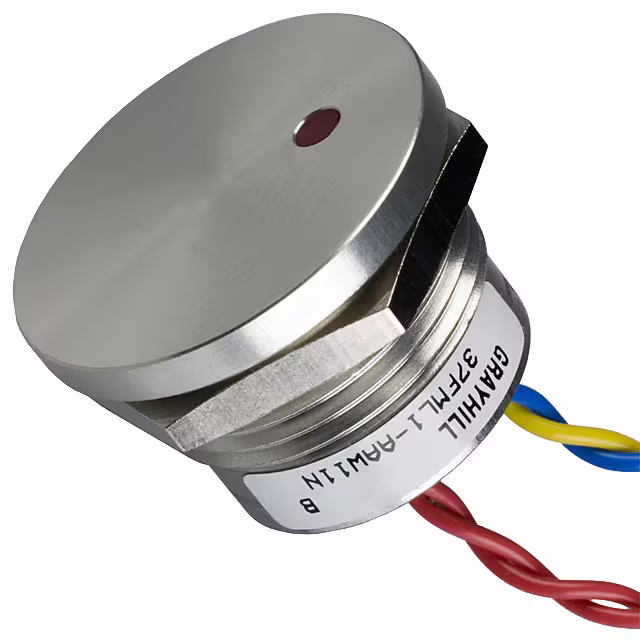

37FML1-AAW11NSWITCH PUSH SPST-NO 0.2A 24V Grayhill Inc. |
0 | - |
|
数据表 |
37F | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | Off-Mom | 200mA (AC/DC) | 24 V | - | 24 V | Round, Button, Flush | SPST-NO | No Marking | Natural | Sealed - Fully | LED, Red | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | 5 VDC | Wire Leads |
|
|
49-01SWITCH PUSH SPST-NO 0.4VA 20V Grayhill Inc. |
0 | - |
|
数据表 |
49 | Bulk | Obsolete | Through Hole, Right Angle | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | SPST-NO | No Marking | White | Process Sealed Plunger | - | -30°C ~ 85°C | - | - | PC Pin |
