直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKV5110PIDC DC CONVERTER 3.3V 2W Flex Power Modules |
0 | - |
|
数据表 |
PKV (3W) | 24-DIP Module, 10 Leads | Tray | Obsolete | Isolated Module | 1 | 72V | 3.3V | - | - | - | - | 18V | 500mA | 2 W | 73% | 1.5 kV | - | -40°C ~ 95°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMJ8118LPDC DC CONVERTER 0.8-5.5V 143W Flex Power Modules |
0 | - |
|
数据表 |
PMJ 8000 (143W) | 13-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 0.8 ~ 5.5V | - | - | - | - | 10.8V | 26A | 143 W | 94.1% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMF4218TSRDC DC CONVERTER 0.8-2.5V 25W Flex Power Modules |
0 | - |
|
数据表 |
PMF 4000 (25W) | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.65V | 0.8 ~ 2.5V | - | - | - | - | 2.95V | 10A | 25 W | 94.1% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PME4118VPFDC DC CONVERTER 0.55-1.8V 11W Flex Power Modules |
0 | - |
|
数据表 |
PME 4000F (10.8W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.65V | 0.55 ~ 1.8V | - | - | - | - | 2.95V | 6A | 11 W | 88.9% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMD4118OWSRDC DC CONVERTER 0.9-3.6V 11W Flex Power Modules |
0 | - |
|
数据表 |
PMD 4000 (10.8W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 5.5V | 0.9 ~ 3.6V | - | - | - | - | 3V | 3A | 11 W | 93.2% | - | - | -40°C ~ 125°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMJ5918TPDC DC CONVERTER 0.8-3.3V 99W Flex Power Modules |
0 | - |
|
数据表 |
PMJ 5000 (108W) | 13-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 5.5V | 0.8 ~ 3.3V | - | - | - | - | 4.5V | 30A | 99 W | 95.5% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMM8218TPDC DC CONVERTER 0.8-5.5V 275W Flex Power Modules |
0 | - |
|
数据表 |
PMM 8000 (275W) | 20-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 14V | 0.8 ~ 5.5V | - | - | - | - | 8V | 50A | 275 W | 95.7% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKR4110BSIDC DC CONVERTER 3.3V 15W Flex Power Modules |
0 | - |
|
数据表 |
PKR 4000B (15W) | 18-SMD Module | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 75V | 3.3V | - | - | - | - | 36V | 4.5A | 15 W | 86% | 1.5 kV | - | -45°C ~ 110°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

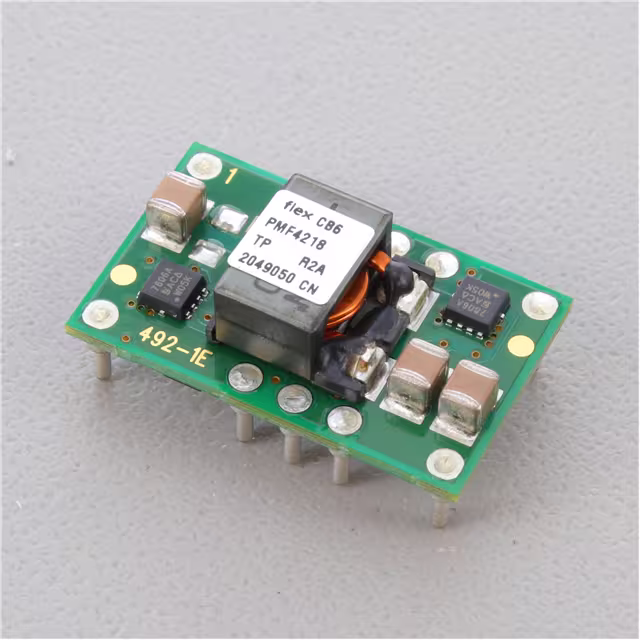

PMF4218TPDC DC CONVERTER 0.8-2.5V 25W Flex Power Modules |
0 | - |
|
数据表 |
PMF 4000 (25W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.65V | 0.8 ~ 2.5V | - | - | - | - | 2.95V | 10A | 25 W | 94.1% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMH8918LSRDC DC CONVERTER 0.8-1.8V 32W Flex Power Modules |
0 | - |
|
数据表 |
PMH 8000 (99W) | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 0.8 ~ 1.8V | - | - | - | - | 10.8V | 18A | 32 W | 89.5% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
