直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEE08A18-LDC DC CONVERTER 5V 40W |
72 | - |
|
数据表 |
AEE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 8A | 40 W | 92% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | Through Hole | - | - | - | - | |
|

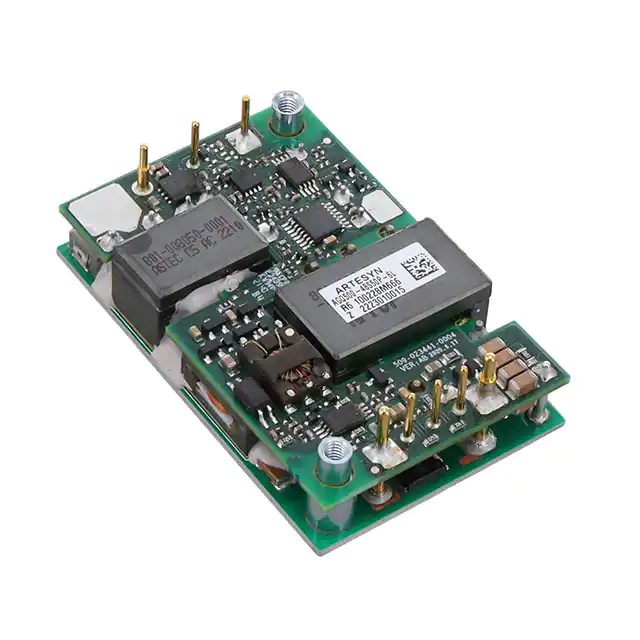

AGQ500-48S50P-6LDC DC CONVERTER 50V 500W |
44 | - |
|
数据表 |
AGQ500 (500W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 75V | 50V | - | - | - | - | 36V | 10A | 500 W | 95% | 2.25 kV | - | -40°C ~ 85°C | ITE (Commercial) | Baseplate, Remote On/Off | Through Hole | Quarter Brick | Enable, Active High | CE, TUV, UL | - | |
|
TEN 10-2410DC DC CONVERTER 3.3V 7.9W |
28 | - |
|
数据表 |
TEN 10 (10W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 18V | 2.4A | 7.9 W | 76% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
PXG-M15-24WS24DC DC CONVERTER 24V 15W |
76 | - |
|
数据表 |
PXG-M (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 625mA | 15 W | 88% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output | Through Hole | - | - | CE | - | |
|
MGDDI-06-R-IDC DC CONVERTER 24V 24V 6W |
73 | - |
|
数据表 |
MGDDI-06 | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 160V | 24V | 24V | - | - | - | 12V | 125mA, 125mA | 6 W | 83% | 2.25 kV | - | -40°C ~ 100°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
RP15-2412SAWDC DC CONVERTER 12V 15W |
259 | - |
|
数据表 |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 1.3A | 15 W | 87% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
|
RP15-4812SAWDC DC CONVERTER 12V 15W |
37 | - |
|
数据表 |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 18V | 1.3A | 15 W | 87% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
JTL3024D05DC DC CONVERTER +/-5V 30W |
59 | - |
|
数据表 |
JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 5V | -5V | - | - | - | 9V | 3A, 3A | 30 W | 90% | 1.6 kV | - | -40°C ~ 75°C | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
CHB50-48S24DC DC CONVERTER 24V 50W |
43 | - |
|
数据表 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 75V | 24V | - | - | - | - | 36V | 2.08A | 50 W | 89% | 1.5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|

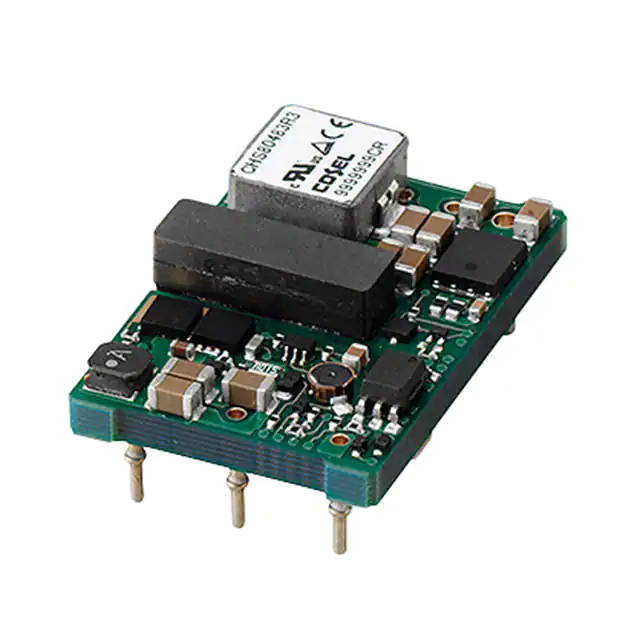

CHS804805DC DC CONVERTER 5V |
80 | - |
|
数据表 |
CHS (80W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 76V | 5V | - | - | - | - | 36V | 16A | - | 92% | 2.25 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | Through Hole | - | - | - | - | |
|
TEN 20-1211DC DC CONVERTER 5V 20W |
168 | - |
|
数据表 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 4A | 20 W | 84% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
THP 3-2422DC DC CONVERTER +/-12V 3W |
83 | - |
|
数据表 |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 40V | 12V | -12V | - | - | - | 9V | 125mA, 125mA | 3 W | 83% | 3 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
THM 20-1212DC DC CONVERTER 12V 20W |
140 | - |
|
数据表 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 12V | - | - | - | - | 9V | 1.67A | 20 W | 88.5% | 5 kV | - | -40°C ~ 80°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - | |
|
THM 15-2412WIDC DC CONVERTER 12V 15W |
44 | - |
|
数据表 |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 1.25A | 15 W | 88.5% | 5 kV | - | -40°C ~ 85°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - | |
|

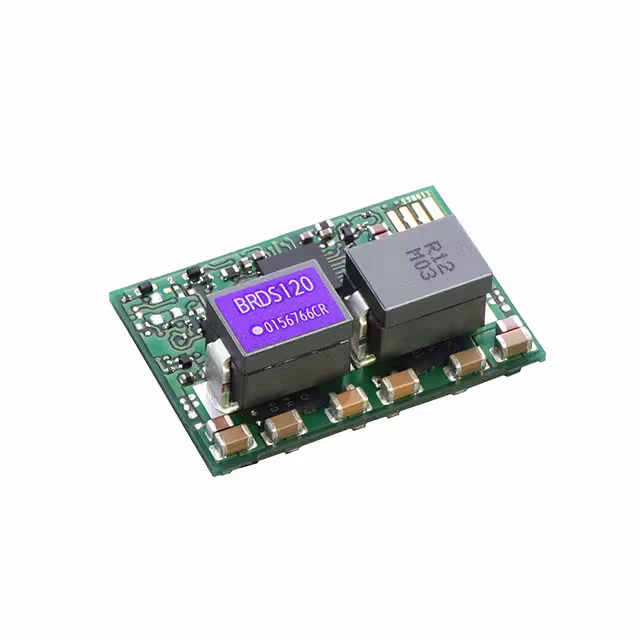

BRDS120DC DC CONVERTER 0.6-1.8V |
303 | - |
|
数据表 |
BRDS | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 14V | 0.6 ~ 1.8V | - | - | - | - | 4.5V | 120A | - | 89% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote Sense | Surface Mount | Sixteenth Brick | - | CE, cURus, TUV | - | |
|
|
THM 20-1211DC DC CONVERTER 5V 20W |
33 | - |
|
数据表 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 4A | 20 W | 87% | 5 kV | - | -40°C ~ 80°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - | |
|
THN 20-7210WIR20 WATT DC/DC CONVERTER, RAILWAY |
30 | - |
|
数据表 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 160V | 3.3V | - | - | - | - | 36V | 5.5A | 18 W | 88% | 3 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, cURus | 50155; 62368-1 | |
|
THM 20-2413DC DC CONVERTER 15V 20W |
38 | - |
|
数据表 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 18V | 1.33A | 20 W | 90% | 5 kV | - | -40°C ~ 80°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - | |
|
TEN 30-2411DC DC CONVERTER 5.1V 31W |
35 | - |
|
数据表 |
TEN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 5.1V | - | - | - | - | 18V | 6A | 31 W | 90% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Module | - | - | - | |
|
TRI 15-1215DC DC CONVERTER 24V 15W |
40 | - |
|
数据表 |
TRI 15 (15W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 24V | - | - | - | - | 9V | 625mA | 15 W | 88% | 8 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CB, cURus | - |
