直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

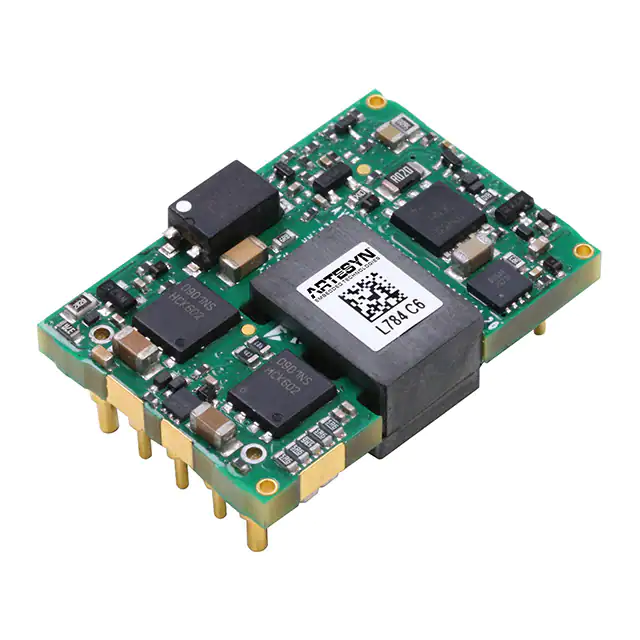

AVD75B-48S12-6LDC DC CONVERTER 12V 75W |
280 | - |
|
数据表 |
AVD75B (75W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 6.25A | 75 W | 93.3% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | Through Hole | Sixteenth Brick | - | - | - | |
|
REC5-1212DRW/H4/ADC DC CONVERTER +/-12V 5W |
106 | - |
|
数据表 |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 12V | -12V | - | - | - | 9V | 210mA, 210mA | 5 W | 85% | 4 kV | - | -40°C ~ 75°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
MGS101205DC DC CONVERTER 5V |
1,183 | - |
|
数据表 |
MGS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 2A | - | 89% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP | Through Hole | - | - | - | - | |
|
VPOL5A-12-SIPDC DC CONVERTER 0.75-5V 25W |
537 | - |
|
数据表 |
VPOL5A | 5-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 14V | 0.75 ~ 5V | - | - | - | - | 8.3V | 5A | 25 W | 92% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | Through Hole | - | Enable, Active High | UL | 60950-1 | |
|
CC10-0505SR-EDC DC CONVERTER 5V 10W |
757 | - |
|
数据表 |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 5V | - | - | - | - | 4.5V | 2A | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC10-0512DR-EDC DC CNVRT +/-12V TO +/-15V 10W |
559 | - |
|
数据表 |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 9V | 12 ~ 15V | -12 ~ -15V | - | - | - | 4.5V | 400mA, 400mA | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
CC10-4805SF-EDC DC CONVERTER 5V 10W |
308 | - |
|
数据表 |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 76V | 5V | - | - | - | - | 36V | 2A | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC10-2412DR-EDC DC CNVRTR +/-12V +/-15V 10W |
227 | - |
|
数据表 |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 36V | 12 ~ 15V | -12 ~ -15V | - | - | - | 18V | 450mA, 450mA | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC10-1205SR-EDC DC CONVERTER 5V 10W |
166 | - |
|
数据表 |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 2A | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC10-2412SR-EDC DC CONVERTER 12-15V 10W |
133 | - |
|
数据表 |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 12 ~ 15V | - | - | - | - | 18V | 1A | 10 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
SKM30B-12DC DC CONVERTER 12V 30W |
205 | - |
|
数据表 |
SKM30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 2.5A | 30 W | 89% | 1.5 kV | - | -40°C ~ 75°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
CCG15-24-15SDC DC CONVERTER 15V 15W |
729 | - |
|
数据表 |
CCG15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 9V | 1A | 15 W | 88% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
TSR 3-1250DC DC CONVERTER 0.59-6V 18W |
187 | - |
|
数据表 |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 14V | 0.59 ~ 6V | - | - | - | - | 4.5V | 3A | 18 W | 93% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Through Hole | - | - | - | - | |
|
|
REC5-2405SRWZ/H6/ADC DC CONVERTER 5V 5W |
185 | - |
|
数据表 |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 1A | 5 W | 82% | 6 kV | - | -40°C ~ 75°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
PKU4717ESIDC DC CONVERTER 6.5V 65W |
174 | - |
|
数据表 |
PKU 4717E (65W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 75V | 6.5V | - | - | - | - | 36V | 10A | 65 W | 89.8% | 2.25 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
TDR 2-2422SMDC DC CONVERTER +/-12V 2W |
479 | - |
|
数据表 |
TDR 2SM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 83mA, 83mA | 2 W | 84% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | - | - | - | |
|
JCJ1012S15DC DC CONVERTER 15V 10W |
146 | - |
|
数据表 |
JCJ (10W) | 11-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 15V | - | - | - | - | 9V | 667mA | 10 W | 89% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | OCP, OVP, SCP | Through Hole | - | - | - | 62368-1 | |
|
VAWQ6-Q24-S12HDC DC CONVERTER 12V 6W |
1,560 | - |
|
数据表 |
VAWQ6 (6W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 470mA | 6 W | 80% | 3 kV | - | -25°C ~ 71°C | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
ATA02H18-LDC DC CONVERTER 24V 8W |
150 | - |
|
数据表 |
ATA (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 335mA | 8 W | 86% | 1.5 kV | - | -40°C ~ 80°C (With Derating) | ITE (Commercial) | OCP, SCP, UVLO | Through Hole | - | - | - | - | |
|
TMR 3-7212WIRDC DC CONVERTER 12V 3W |
515 | - |
|
数据表 |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 160V | 12V | - | - | - | - | 43V | 250mA | 3 W | 82% | 3 kV | - | -40°C ~ 90°C (With Derating) | ITE (Commercial), Railway | Remote On/Off, SCP | Through Hole | - | - | - | - |
