直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FED60-24S12DC DC CONVERTER 12V 60W |
5 | - |
|
数据表 |
FED60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 5A | 60 W | 91% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus | - | |
|
NME1515SCDC DC CONVERTER 15V 1W |
0 | - |
|
数据表 |
NME (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 16.5V | 15V | - | - | - | - | 13.5V | 66mA | 1 W | 82% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
REM10-2412D/ADC DC CONVERTER +/-12V 10W |
4 | - |
|
数据表 |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 416mA, 416mA | 10 W | 89% | 5 kV | - | -40°C ~ 105°C | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active Low | - | - | |
|
OKY-T/5-D12N-CDC DC CONVERTER 0.75-5.5V 25W |
0 | - |
|
数据表 |
Okami™ OKY-T/5-D12 | 5-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 14V | 0.75 ~ 5.5V | - | - | - | - | 8.3V | 5A | 25 W | 93% | - | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | Surface Mount | - | Enable, Active Low | - | - | |
|
AM75QB-11003SA30JZ-BDC DC CONVERTER 3.3V 56W |
3 | - |
|
数据表 |
AM75QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 160V | 3.3V | - | - | - | - | 43V | 17.045A | 56.2 W | 86% | 3 kV | - | -40°C ~ 105°C | Industrial, Railway | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | Quarter Brick | - | - | - | |
|
|
AM75QB-11015SA30JZ-BDC DC CONVERTER 15V 75W |
3 | - |
|
数据表 |
AM75QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 160V | 15V | - | - | - | - | 43V | 5A | 75 W | 89% | 3 kV | - | -40°C ~ 105°C | Industrial, Railway | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | Quarter Brick | - | - | - | |
|
AM75QB-11048SA30JZ-BDC DC CONVERTER 48V 75W |
3 | - |
|
数据表 |
AM75QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 160V | 48V | - | - | - | - | 43V | 1.563A | 75 W | 88% | 3 kV | - | -40°C ~ 105°C | Industrial, Railway | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | Quarter Brick | - | - | - | |
|
R1S-1209/P-RDC DC CONVERTER 9V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 13.2V | 9V | - | - | - | - | 10.8V | 111mA | 1 W | 78% | 1 kV | - | -40°C ~ 100°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|
|
R1S-1212/P-RDC DC CONVERTER 12V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 84mA | 1 W | 80% | 1 kV | - | -40°C ~ 100°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|
IP2415SDC DC CONVERTER +/-15V 3W |
183 | - |
|
数据表 |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 100mA, 100mA | 3 W | 80% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | - | Enable, Active Low | - | - | |
|
|
R1S-1224/P-RDC DC CONVERTER 24V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 13.2V | 24V | - | - | - | - | 10.8V | 42mA | 1 W | 84% | 1 kV | - | -40°C ~ 100°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | - | |
|
URB4805JMT-15WDC DC CONVERTER 5V 15W |
113 | - |
|
数据表 |
URB4805JMT-15W (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 75V | 5V | - | - | - | - | 18V | 3A | 15 W | 88% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
VCF4805EBO-50WR3-NISOLATED MODULE DC DC CONVERTER |
283 | - |
|
数据表 |
VCF48_EBO-50W(F)R3-N (50W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 10A | 50 W | 92% | 2.25 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, Remote Sense | Through Hole | Eighth Brick | Enable, Active Low | - | 62368-1 | |
|
|
VCF4812EBO-50WR3-NISOLATED MODULE DC DC CONVERTER |
282 | - |
|
数据表 |
VCF48_EBO-50W(F)R3-N (50W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 4.17A | 50 W | 93% | 2.25 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, Remote Sense | Through Hole | Eighth Brick | Enable, Active Low | - | 62368-1 | |
|
PTH12050YAZDC DC CONVERTER 0.55-1.8V |
0 | - |
|
数据表 |
PTH12050 | 6-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 13.2V | 0.55 ~ 1.8V | - | - | - | - | 10.8V | 6A | - | 84% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, UVLO | Surface Mount | - | - | - | - | |
|
NMS0509CDC DC CONVERTER +/-9V 2W |
129 | - |
|
数据表 |
NMS (2W) | 24-DIP Module (600 mil, 14 Leads) | Tube | Obsolete | Isolated Module | 2 | 5.5V | 9V | -9V | - | - | - | 4.5V | 111mA, 111mA | 2 W | 76% | 6 kV | - | 0°C ~ 70°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
|
PT6364NDC DC CONVERTER 1.8V 11A |
0 | - |
|
数据表 |
Excalibur™ PT6360 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 1.8V | - | - | - | - | 10.8V | 11A | - | 87% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
|
PT6361CDC DC CONVERTER 5V 11A |
0 | - |
|
数据表 |
Excalibur™ PT6360 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 10A | - | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|

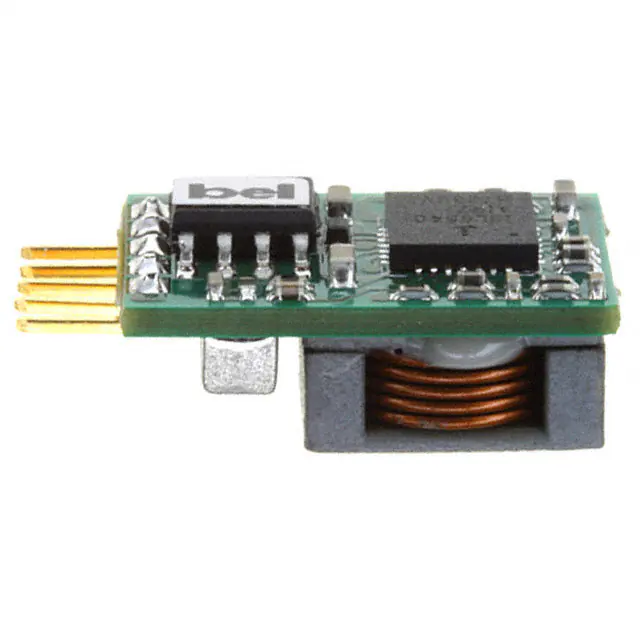

VRAE-10E1A0GFDC DC CONVERTER 0.59-5.1V 50W |
2,780 | - |
|
数据表 |
VRAE | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 13.8V | 0.59 ~ 5.1V | - | - | - | - | 4.5V | 10A | 50 W | 91% | - | - | 0°C ~ 70°C | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
URB2405LD-30WR3DC DC CONVERTER 5V 30W |
120 | - |
|
数据表 |
URB2405LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 6A | 30 W | 84% | 1.5 kV | - | -40°C ~ 80°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, cURus, UKCA, UL | 60950-1; 62368-1 |
