直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM40EW-11024SH30-NZ-KDC DC CONVERTER 24V 40W |
2 | - |
|
数据表 |
AM40EW-NZ (40W) | - | Tube | Active | Isolated Module | 1 | 160V | 24V | - | - | - | - | 40V | 1.67A | 40 W | 87% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | Heat Sink, Remote On/Off | Through Hole | - | - | CE | - | |
|
RCD30-24S12W-AISOLATED / 30W/ VOUT:12 |
7 | - |
|
数据表 |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 2.5A | 30 W | 89% | 2.25 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 | |
|
|
RCD30-24S24WISOLATED / 30W/ VOUT:24 |
6 | - |
|
数据表 |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 1.25A | 30 W | 90% | 2.25 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 | |
|
|
RCD30-24S24W-AISOLATED / 30W/ VOUT:24 |
5 | - |
|
数据表 |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 1.25A | 30 W | 90% | 2.25 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 | |
|
|
RCD30-24S12WISOLATED / 30W/ VOUT:12 |
2 | - |
|
数据表 |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 2.5A | 30 W | 89% | 2.25 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | CB, CE, cURus, UKCA | 62368-1 | |
|
MPM15-24D15WDC DC CONVERTER +/-15V 15W |
10 | - |
|
数据表 |
MPM15W (15W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 500mA, 500mA | 15 W | 89% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output | Through Hole | - | - | CB, CE, cURus, FCC | - | |
|
|
RDT-6Y24DC-DC,14-160V INPUT, 24V/0.25A O |
16 | - |
|
数据表 |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 160V | 24V | - | - | - | - | 14V | 250mA | 6 W | 83% | 3 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
EED40-48S12WDC DC CONVERTER 12V 40W |
10 | - |
|
数据表 |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 3.333A | 40 W | 92% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus | - | |
|
|
EED40-24S15WDC DC CONVERTER 15V 40W |
10 | - |
|
数据表 |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 18V | 2.666A | 40 W | 93% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus | - | |
|
|
EED40-24S12WDC DC CONVERTER 12V 40W |
10 | - |
|
数据表 |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 3.333A | 40 W | 92% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus | - | |
|
|
EED40-48S24WDC DC CONVERTER 24V 40W |
5 | - |
|
数据表 |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 24V | - | - | - | - | 36V | 1.666A | 40 W | 92% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active High | CB, CE, cURus | - | |
|
|
PT7721NDC DC CONVERTER 1.3-3.5V 15A |
0 | - |
|
数据表 |
PT7720 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 14V | 1.3 ~ 3.5V | - | - | - | - | 11V | 17A | - | 88% | - | - | 0°C ~ 85°C | ITE (Commercial) | - | Through Hole, Vertical | - | - | - | - | |
|

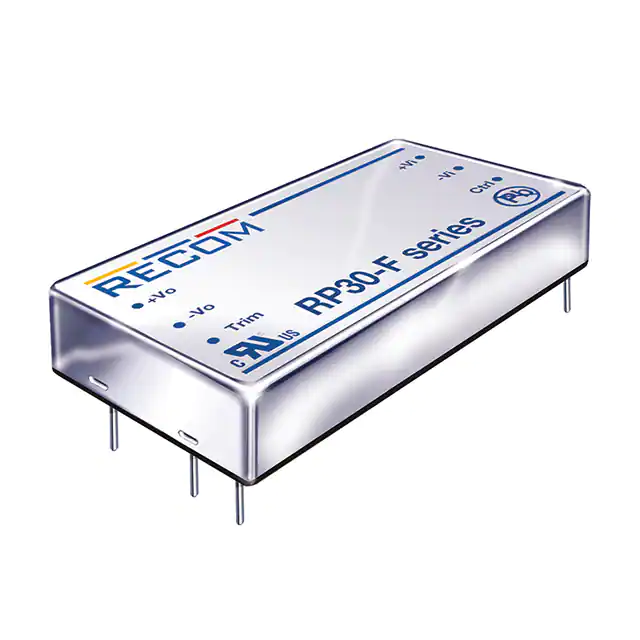

RP30-4805SFDC DC CONVERTER 5V 30W |
9 | - |
|
数据表 |
POWERLINE RP30-F (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 6A | 30 W | 90% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | Through Hole | - | Enable, Active High | - | - | |
|
|
RED20-48S12WDC DC CONVERTER 12V 20W |
10 | - |
|
数据表 |
RED20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 18V | 1.67A | 20 W | 89% | 2.25 kV | - | -40°C ~ 101°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | Through Hole | - | Enable, Active Low | CB, CE, cURus | 60950-1 | |
|
|
SQ24T10050-NEC0DC DC CONVERTER 5V 50W |
0 | - |
|
数据表 |
SemiQ™ SQ24 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 10A | 50 W | 86% | 2 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | Enable, Active Low | - | - | |
|
|
RCD20-110D15WDC DC CONVERTER +/-15V 20W |
10 | - |
|
数据表 |
RCD20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 160V | 15V | -15V | - | - | - | 36V | 667mA, 667mA | 20 W | 90% | 3 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | CB, CE, cURus | 62368-1 | |
|
|
RCD20-110D12WDC DC CONVERTER +/-12V 20W |
10 | - |
|
数据表 |
RCD20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 160V | 12V | -12V | - | - | - | 36V | 833mA, 833mA | 20 W | 90% | 3 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | Enable, Active Low | CB, CE, cURus | 62368-1 | |
|

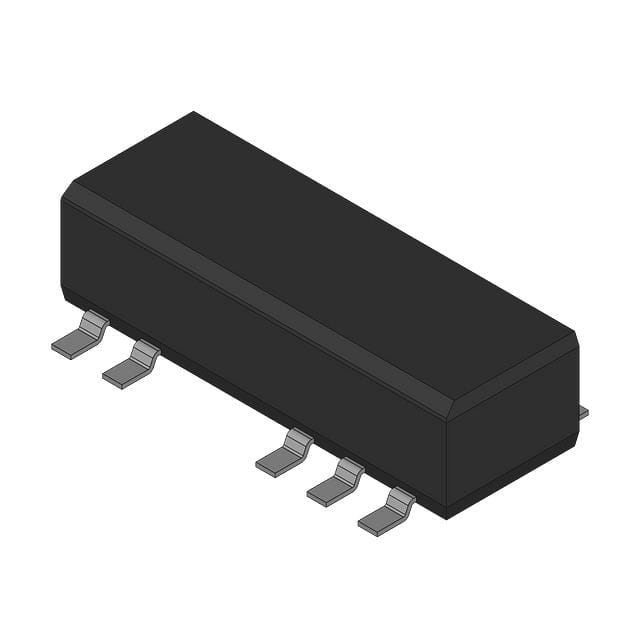

DCP010507DBP-U/7E4DCP010507DB MINIATURE, 1W, ISOLA |
650 | - |
|
数据表 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 5.5V | 6.5V | -6.5V | - | - | - | 4.5V | 76.5mA, 76.5mA | 994.5 mW | 81% | 1 kV | - | -40°C ~ 100°C | ITE (Commercial) | - | Surface Mount | 7-SOP | - | - | - | |
|
OKR-T/10-W12-CDC DC CONVERTER 0.591-6V 50W |
125 | - |
|
数据表 |
Okami™ OKR-T/10-W12 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 14V | 0.591 ~ 6V | - | - | - | - | 4.5V | 10A | 50 W | 92% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
|
PT5026LDC DC CONVERTER -5.2V 1A |
0 | - |
|
数据表 |
PT5020 | 3-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 7V | -5.2V | - | - | - | - | 4.75V | 1A | - | 75% | - | - | -20°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | - | - | - |
