直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC1R5-2412DF-EDC DC CNVRTR +/-12V TO +/-15V 1W |
1,763 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Bulk | Active | Isolated Module | 2 | 36V | 12 ~ 15V | -12 ~ -15V | - | - | - | 18V | 60mA, 60mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC1R5-1212DF-EDC DC CNVRTR +/-12V TO +/-15V 1W |
969 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 12 ~ 15V | -12 ~ -15V | - | - | - | 9V | 60mA, 60mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
CC1R5-2412DR-EDC DC CNVRTR +/-12V TO +/-15V 1W |
487 | - |
|
数据表 |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 36V | 12 ~ 15V | -12 ~ -15V | - | - | - | 18V | 60mA, 60mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC1R5-2403SF-EDC DC CONVERTER 3.3V 1W |
330 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 18V | 400mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC1R5-2403SR-EDC DC CONVERTER 3.3V 1W |
280 | - |
|
数据表 |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 18V | 400mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC1R5-4805SR-EDC DC CONVERTER 5V 1W |
259 | - |
|
数据表 |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 76V | 5V | - | - | - | - | 36V | 300mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC1R5-4805SF-EDC DC CONVERTER 5V 1W |
234 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 76V | 5V | - | - | - | - | 36V | 300mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC1R5-1212SR-EDC DC CONVERTER 12-15V 1W |
173 | - |
|
数据表 |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 12 ~ 15V | - | - | - | - | 9V | 125mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC1R5-4812SF-EDC DC CONVERTER 12-15V 1W |
154 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 76V | 12 ~ 15V | - | - | - | - | 36V | 125mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC1R5-1203SF-EDC DC CONVERTER 3.3V 1W |
104 | - |
|
数据表 |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 3.3V | - | - | - | - | 9V | 400mA | 1 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
EC2SA-48D05NDC DC CONVERTER +/-5V 2W |
911 | - |
|
数据表 |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 75V | 5V | -5V | - | - | - | 36V | 200mA, 200mA | 2 W | 78% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP, UVLO | Through Hole | - | - | CE | 60950-1 | |
|
TMR 1-2423DC DC CONVERTER +/-15V 990MW |
527 | - |
|
数据表 |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 33mA, 33mA | 990 mW | 80% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | OCP, SCP | Through Hole | Module | - | CB, CSA | - | |
|
SPBW03G-12DC DC CONVERTER 12V 3W |
628 | - |
|
数据表 |
SPBW03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 18V | 250mA | 3 W | 85% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
RKZ-0512D/PDC DC CONVERTER +/-12V 2W |
70 | - |
|
数据表 |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5.5V | 12V | -12V | - | - | - | 4.5V | 84mA, 84mA | 2 W | 84% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
TMV 2412DHIDC DC CONVERTER +/-12V 1W |
245 | - |
|
数据表 |
TMV-HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 26.4V | 12V | -12V | - | - | - | 21.6V | 42mA, 42mA | 1 W | 77% | 5.2 kV | - | -40°C ~ 95°C (With Derating) | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
LTM4693EV#PBFULTRATHIN, 1A BUCK-BOOST UMODULE |
3 | - |
|
数据表 |
LTM®, uModule® | 25-LFLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 1.8 ~ 5.5V | - | - | - | - | 2.6V | 2A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | Adjustable Output | Surface Mount | 25-LGA (3.5x4) | - | - | - | |
|

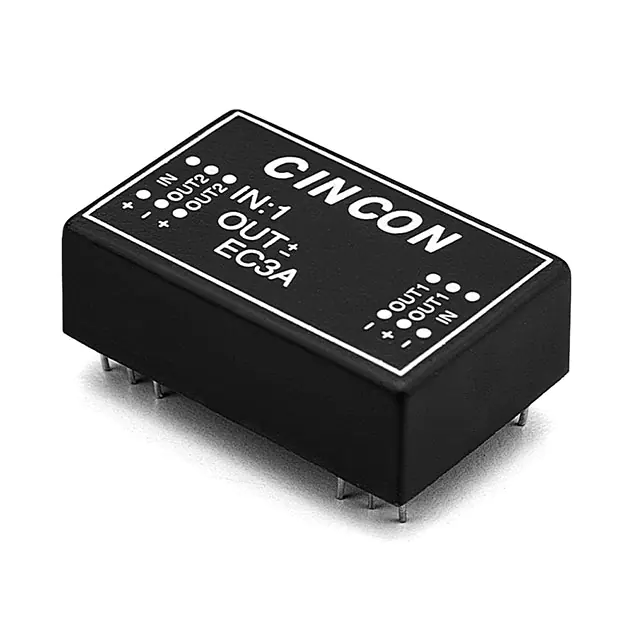

EC3A25HDC DC CONVERTER +/-12V 3W |
1,889 | - |
|
数据表 |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 125mA, 125mA | 3 W | 79% | 3 kV | - | -25°C ~ 71°C | ITE (Commercial) | SCP | Through Hole | - | - | CE, cURus | 60950-1 | |
|
LMZ31506HRUQTDC DC CONVERTER 1.2-5.5V 33W |
153 | - |
|
数据表 |
SIMPLE SWITCHER® | 47-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14.5V | 1.2 ~ 5.5V | - | - | - | - | 4.5V | 6A | - | 94% | - | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OTP, UVLO | Surface Mount | 47-B1QFN (15x9) | Enable, Active High | - | - | |
|
MYMGM1R816ELA5RADC DC CONVERTER 0.7-1.8V 29W |
1,872 | - |
|
数据表 |
- | 56-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 15V | 0.7 ~ 1.8V | - | - | - | - | 7.5V | 16A | 29 W | 91.8% | - | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Surface Mount | - | Enable, Active High | - | - | |
|
173010342DC DC CONVERTER 3.3V |
227 | - |
|
数据表 |
MagI³C (1W) | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 42V | 3.3V | - | - | - | - | 7V | 1A | - | 89% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | OCP, OTP, SCP, UVLO | Through Hole | - | - | - | - |
