直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT8122ADC DC CONVERTER 1.075-1.85V |
10 | - |
|
数据表 |
Excalibur™ PT8120 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 1.075 ~ 1.85V | - | - | - | - | 10.8V | 30A | - | 84% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole, Right Angle | - | - | - | - | |
|
RBM-1205D/PDC DC CONVERTER +/-5V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.2V | 5V | -5V | - | - | - | 10.8V | 100mA, 100mA | 1 W | 78% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
PT8139ADC DC CONVERTER 1.7-4V 30A |
0 | - |
|
数据表 |
Excalibur™ PT8139 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 1.7 ~ 4V | - | - | - | - | 10.8V | 30A | - | 91% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole, Right Angle | - | - | - | - | |
|

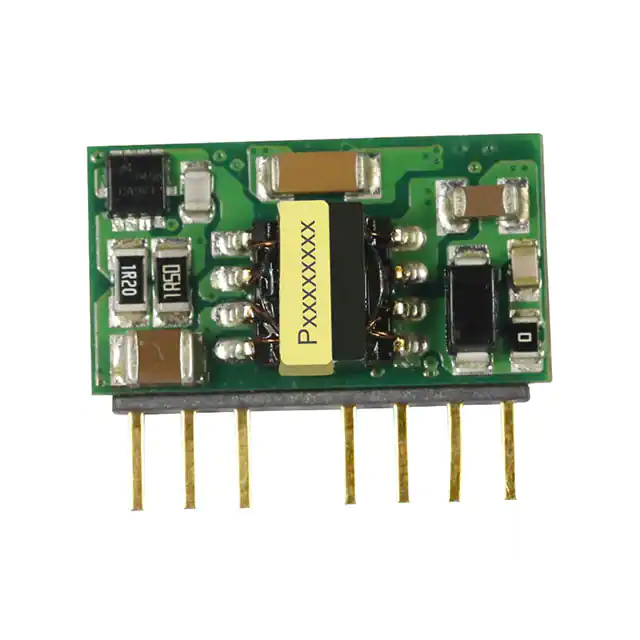

VCB4815SO-3WR3DC DC CONVERTER, 3W, 15V |
180 | - |
|
数据表 |
VCB48_SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 75V | 15V | - | - | - | - | 36V | 200mA | 3 W | 82% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE | 62368-1 | |
|
|
RBM-1212D/PDC DC CONVERTER +/-12V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.2V | 12V | -12V | - | - | - | 10.8V | 41mA, 41mA | 1 W | 82% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
PT8125CDC DC CONVERTER 4.5-7.6V 30A |
0 | - |
|
数据表 |
Excalibur™ PT8120 | 31-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 13.2V | 4.5 ~ 7.6V | - | - | - | - | 10.8V | 28A | - | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|
|
VCB4805SO-3WR3DC DC CONVERTER, 3W, 5V |
180 | - |
|
数据表 |
VCB48_SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 600mA | 3 W | 80% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE | 62368-1 | |
|
RBM-1215D/PDC DC CONVERTER +/-15V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.2V | 15V | -15V | - | - | - | 10.8V | 33mA, 33mA | 1 W | 84% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
RP20-1212DFDC DC CONVERTER +/-12V 20W |
9 | - |
|
数据表 |
POWERLINE RP20-F (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 12V | -12V | - | - | - | 9V | 833mA, 833mA | 20 W | 86% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
|
VCB4812SO-3WR3DC DC CONVERTER, 3W, 12V |
179 | - |
|
数据表 |
VCB48SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 250mA | 3 W | 81% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE | 62368-1 | |
|
AM2S-0503SH30ZDC DC CONVERTER 3.3V 1.3W |
14 | - |
|
数据表 |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 5.5V | 3.3V | - | - | - | - | 4.5V | 400mA | 2 W | 78% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
AM2S-2415SZDC DC CONVERTER 15V 2W |
4 | - |
|
数据表 |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 26.4V | 15V | - | - | - | - | 21.6V | 133mA | 2 W | 86% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
|
VCB4824SO-3WR3DC DC CONVERTER, 3W, 24V |
175 | - |
|
数据表 |
VCB48_SO-3WR3 (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 75V | 24V | - | - | - | - | 36V | 125mA | 3 W | 82% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE | 62368-1 | |
|
MTWA4-5-15DC/DC CONVERTER 4 WATTS MEDICAL |
10 | - |
|
数据表 |
MTWA4 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 12V | 15V | -15V | - | - | - | 4.5V | 117mA, 117mA | 3.5 W | 81% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Remote On/Off | Through Hole | - | - | CB, UL | - | |
|
|
IZB0312S3V3SINGLE O/P DC-DC PCB MOUNT 3W 1. |
21 | - |
|
数据表 |
IZB03 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 3.3V | - | - | - | - | 9V | 758mA | 2.5 W | 75% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE, UKCA, UL | 62368-1 | |
.jpg)
|
PDS1-S5-D15-MDC DC CONVERTER +/-15V 1W |
0 | - |
|
数据表 |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Bulk | Obsolete | Isolated Module | 2 | 5.5V | 15V | -15V | - | - | - | 4.5V | 33mA, 33mA | 1 W | 81% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 | |
|
PDS2-S12-S5-MDC DC CONVERTER 5V 2W |
0 | - |
|
数据表 |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 400mA | 2 W | 79% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
PQP3-D12-S15-MDC DC CONVERTER 15V 3W |
220 | - |
|
数据表 |
PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 15V | - | - | - | - | 9V | 200mA | 3 W | 83% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE | - | |
|
V7812-500DC DC CONVERTER 12V 6W |
218 | - |
|
数据表 |
V78-500 | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 32V | 12V | - | - | - | - | 15V | 500mA | 6 W | 95% | - | - | -40°C ~ 85°C | ITE (Commercial) | OTP, SCP | Through Hole | - | - | - | - | |
|
|
V7805-500DC DC CONVERTER 5V 2.5W |
1,903 | - |
|
数据表 |
V78-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 32V | 5V | - | - | - | - | 6.5V | 500mA | 2.5 W | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | OTP, SCP | Through Hole | - | - | - | - |
